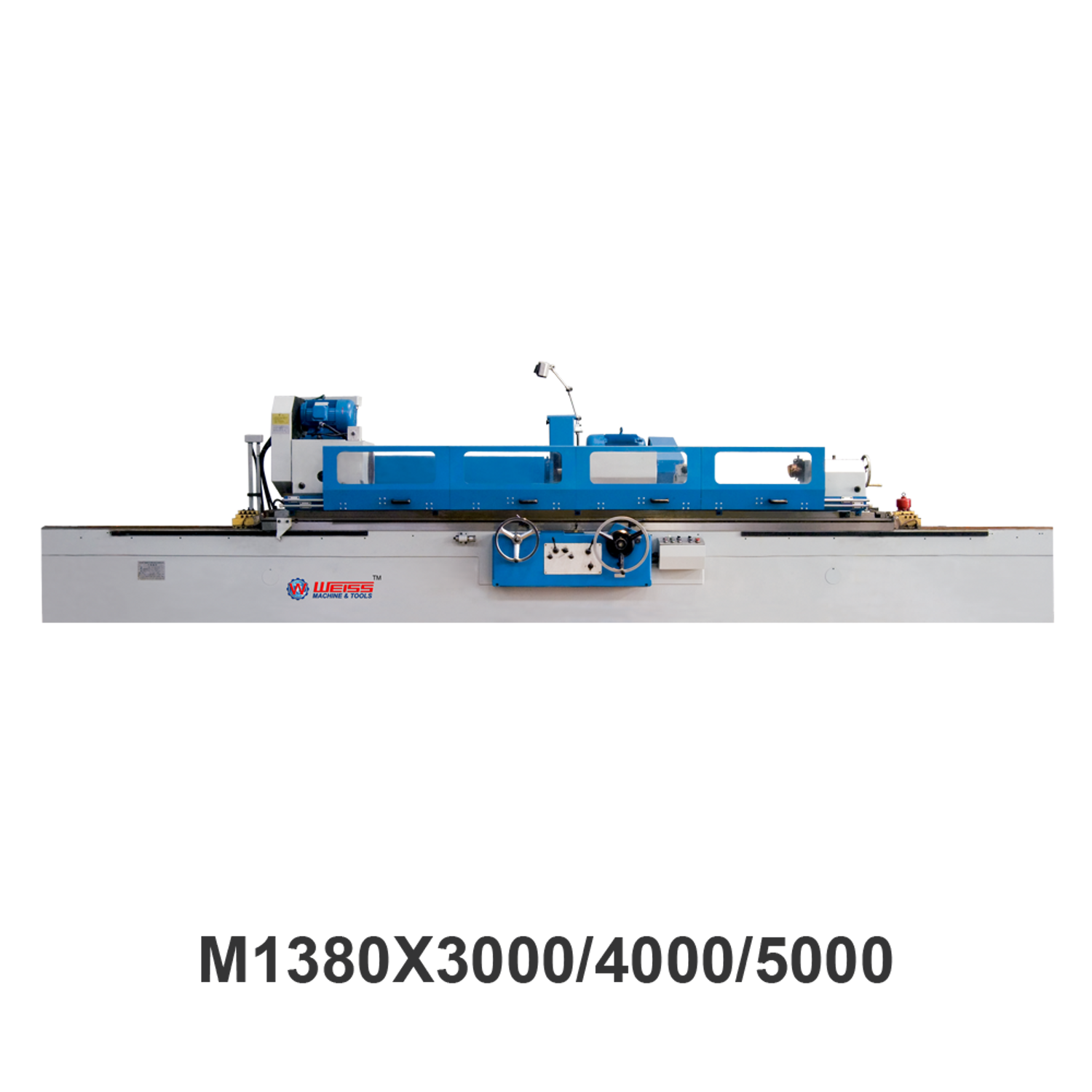

M1380X3000/M1380X4000/M1380X5000 Cylinderical Grinding Machine

M1380X3000/M1380X4000/M1380X5000 Cylinderical Grinding Machine
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: M1380X3000/M1380X4000/M1380X5000

    Item No: 10438030/10438040/10438050

    Style: M1380X3000 M1380X4000 M1380X5000

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications      、

    Model No. Unit M1380X3000/4000/5000
    Item No.   10438030/10438040/10438050
    Specifications：
    General capacit
    Max. length ground (O.D) mm 3000, 4000,5000
    Center height mm 500
    Dia. Ground (O.D) mm 50-800
    Max. weight of work piece Kg 3000
    Workhea
    Center taper (MT) (metric)80#
    Spindle speed (r/min) 50HZ:10-100 stepless
    Wheelhea
    Wheel size (O.DxWxlD) mm 900 x 75 x 305
    Peripheral velocity m/s 35
    Hand feed per. Rev mm rough:4 fine: 0.5
    Hand feed per. Gra mm rough:0.02 fine:0.0025
    Tabl
    Max. swiveling
    angle of table    		 Clockwise (°) 1°
    Anticlockwise (°) 3° (3000), 2° (4000), 1.5° (5000)
    Longitudinal speed range of table m/min 0.1-2.5
    Tailstoc
    Center tape   (metric)80#
    Quill travel   70
    Moto
    Wheelhead motor power Kw 22
    Workhead motor power Kw 15
    Machining accurac
    Roundness μm 3
    Cylindricity μm 8 (3000) 12 (4000, 5000)
    Roughness μm Ra 0.32
    Machin
    Gross weight t 18(2000), 22 (3000), 23 (4000), 26(5000)
    Packing dimension cm 876x240x230 (3000)
    1100x240x230 (4000)
    1270x240x230 (5000)

    Features&Details


    Features:
    • The left and right guide rail adopts P-V structure, which is scraped by high precision manual, so that the whole system products have high precision and high stability.
    • The front and rear feed guide rail of grinding wheel can choose roller and wire rail structure.
    • Classic control mechanism, simple, safe and reliable.
    • M1380 series worktable and grinding wheel guide rail adopts high stablehydrostatic guide rail, high rigid dynamic and static pressure spindle.
    • Universal workhead can be adjusted at any Angle within 90 degrees counterclockwise to adapt to chuck grinding internal and external conical workpiece.

    Standard Accessories

    Standard accessories:
    Cooling water tank
    Externalcircledresser
    Grinding wheel chuck and
    Standard grinding wheel
    Balance shaft
    Leveling pad iron
    Working light
    Carbide-tipped center
    Optional Accessories:
    Grinding wheel balancing flame
    Magnetic separation
    Paper bag filter
    Grinding center device
