Model No.		Unit	M7150X1250	M7160X1250	M7163X1250
Item No.			10401250	10401260	10401270
Specifications：
Size og workatable (LxWxH)		mm	1250x500x600	1250x600x600	1250x630x600
Max. Longitudinal movement of worktable		mm	1350	1350	1350
Max. Distance from the spindle centerline to the worktable surface		mm	800	800	800
Max. Cross movement grinding head		mm	550	650	680
Vertical movement of the grinding head by handwheel	Per rev.	mm	0.01	0.01	0.01
Vertical movement of the grinding head by handwheel	Per div.	mm	1	1	1
Rapid lifting motor	Power	Kw	0.37	0.37	0.37
Rapid lifting motor	Rotation speed	r/min	1440	1440	1440
Abrasive wheel dim (Dxdxw)		mm	Φ400x40x127	Φ400x40x127	Φ400x40x127
Speed of grinding wheel		r/min	1440	1440	1440
Total power of motor		Kw	12	12	12
Power of spindle motor		Kw	7.5	7.5	7.5
Power of oil pump motor		Kw	4	4	4
Prpcessing accuracy		mm	0.015/1000	0.015/1000	0.015/1000
Surface roughness		um	Ra:0.63	Ra:0.63	Ra:0.63
N/G weight		Kg	5300/6000	5600/6300	5800/6500
Package (LxWxH)		cm	3600x1930x2480	3600x1950x2480	3600x1950x2480

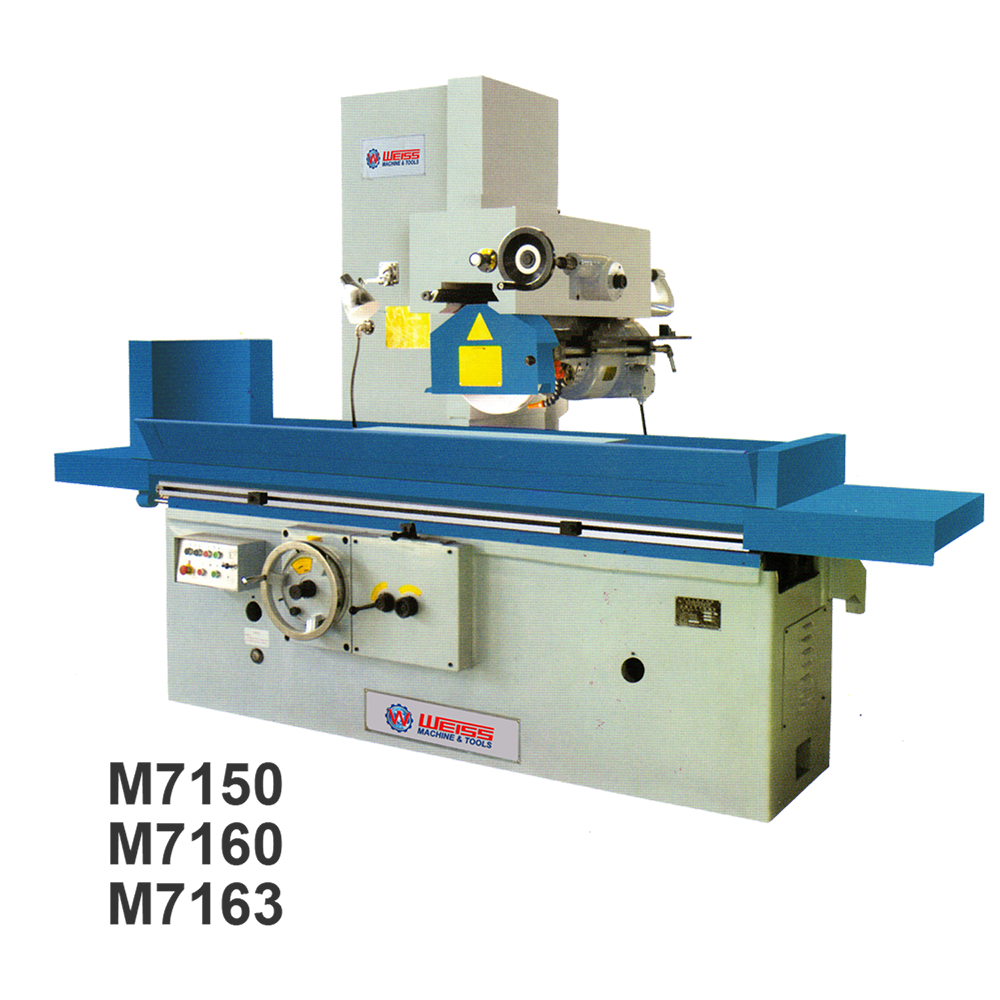

M7150X1250/M7160X1250/M7163X1250 Surface Grinding Machines
