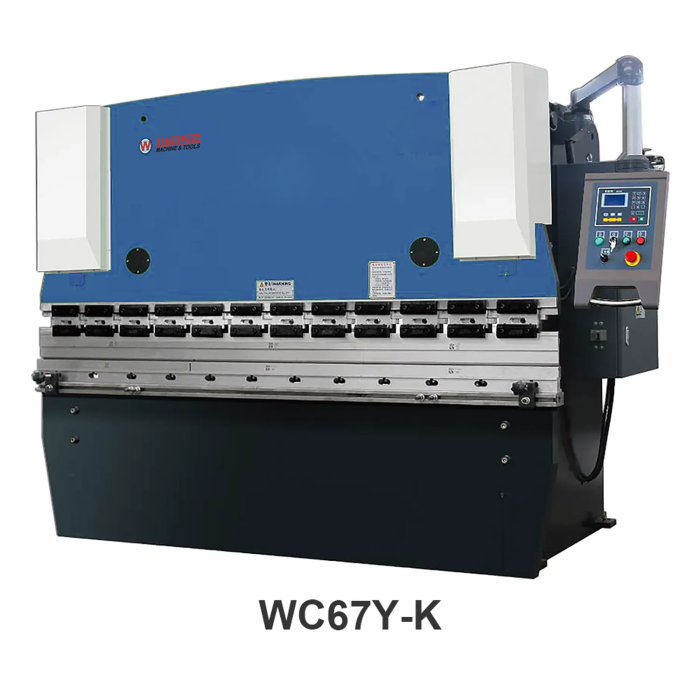

Name: WC67E/Y/K Series Synchronous torque CNC bending machine (30~600t)
Brand: Weiss Machinery
Rating: 4.5 (17 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Specifications

WC67E/Y/K Series Synchronous torque CNC bending machine (30~600t)
Specifications
			A	B	D	C	E
Model	Item No.	Nominal Pressure (kN)	Length of Table(mm)	Distance between columns (mm)	Throat Depth (mm)	Stroke (mm)	Open Height (mm)	Main Motor (kW)	Overall dimensions LxWxH
30t/1600	11230031	300	1600	1304	200	80	210	3	1650x1150x1700
30t/2000	11230032	300	2000	1304	200	80	210	3	2000x1150x1700
40t/2500	11230042	400	2500	2030	250	100	340	5.5	2500x1200x1900
63t/2500	11230062	630	2500	2050	250	120	340	5.5	2500x1600x2200
63t/3200	11230063	630	3200	2510	250	120	340	5.5	3200x1600x2200
80t/2500	11230082	800	2500	2050	250	120	350	5.5	2500x1700x2200
80t/3200	11230083	800	3200	2510	250	120	350	5.5	3200x1700x2200
100t/3200	11230103	1000	3200	2510	320	120	380	7.5	3200x1800x2500
100t/4000	11230104	1000	4000	3100	320	120	380	7.5	4000x1800x2600
125t/3200	11230123	1250	3200	2510	320	120	380	7.5	3200x1900x2600
125t/4000	11230124	1250	4000	3100	400	120	380	7.5	4000x1900x2600
160t/3200	11230163	1600	3200	2510	320	200	450	11	3200x2000x2800
160t/4000	11230164	1600	4000	3040	320	200	450	11	4000x2000x2800
160t/5000	11230165	1600	5000	3800	320	200	450	11	5000x1900x3100
160t/6000	11230166	1600	6000	4600	320	200	450	11	6000x1900x3300
200t/3200	11230203	2000	3200	2600	320	250	540	15	3200x2000x2850
200t/4000	11230204	2000	4000	3300	320	250	540	15	4000x2000x2850
200t/5000	11230205	2000	5000	3800	320	250	540	15	5000x1950x3000
200t/6000	11230206	2000	6000	4600	320	250	540	15	6000x1950x3300
250t/3200	11230253	2500	3200	2600	400	250	580	18.5	3200x2100x3100
250t/4000	11230254	2500	4000	3300	400	250	580	18.5	4000x2100x3100
250t/5000	11230255	2500	5000	3800	400	250	580	18.5	5000x2000x3500
250t/6000	11230256	2500	6000	4600	400	250	580	18.5	6000x2000x3600
300t/3200	11230303	3000	3200	2600	400	250	580	18.5	3200x2100x3300
300t/4000	11230304	3000	4000	3300	400	250	580	18.5	4000x2100x3500
300t/5000	11230305	3000	5000	3800	400	250	580	18.5	5000x2100x3700
300t/6000	11230306	3000	6000	4600	400	250	580	18.5	6000x2100x4000
400t/4000	11230404	4000	4000	4600	400	250	580	22	4000x2200x3600
400t/5000	11230405	4000	5000	3800	400	250	580	22	5000x2200x3900
400t/6000	11230406	4000	6000	4400	400	250	580	22	6000x2200x4100
500t/4000	11230504	5000	4000	3300	500	250	580	30	4000x2400x3500
500t/5000	11230505	5000	5000	3800	500	250	580	30	5000x2400x3900
500t/6000	11230506	5000	6000	4410	500	250	580	30	6000x2450x4250
500t/7000	11230507	5000	7000	5400	500	250	580	30	7000x2550x4350
600t/4000	11230604	6000	4000	3300	500	320	620	37	4000x2700x4700
600t/5000	11230605	6000	5000	3800	500	320	620	37	5000x2700x4750
600t/6000	11230606	6000	6000	4600	500	320	620	37	6000x2700x4950
600t/7000	11230607	6000	7000	5400	500	320	620	37	7000x2700x5150

Features&Details

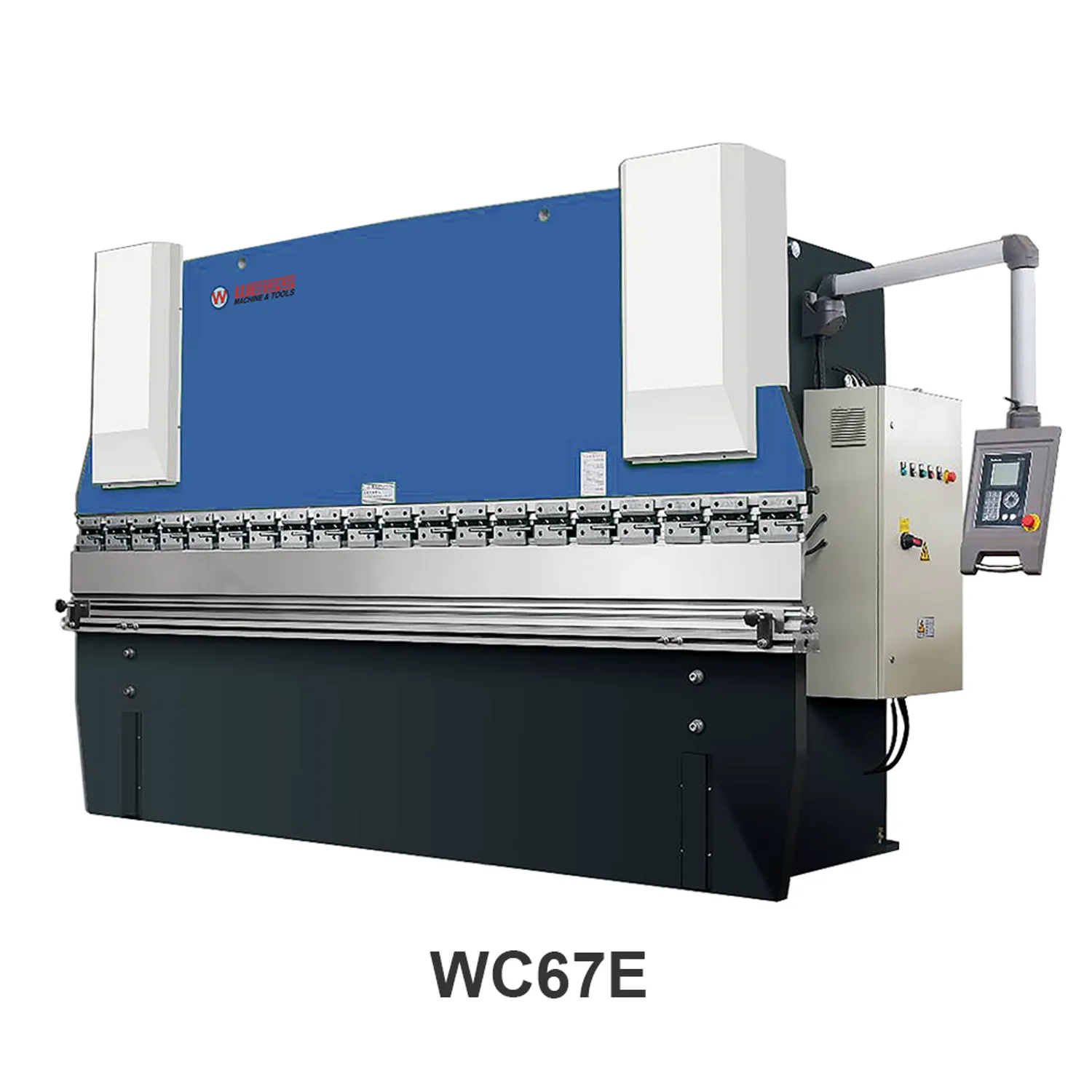

WC67E Series Synchronous torque CNC bending machine (30~600t)

Double cylinders control slider up and down movement
Mechanical torque synchronization
Selection of DA41S, E200P or MD320
Domestic famous hydraulic integrated system
Schneider or Siemens Iow-voltage electrical
Imported seals
Ball screw, linear guide, fast clamps, servo motor

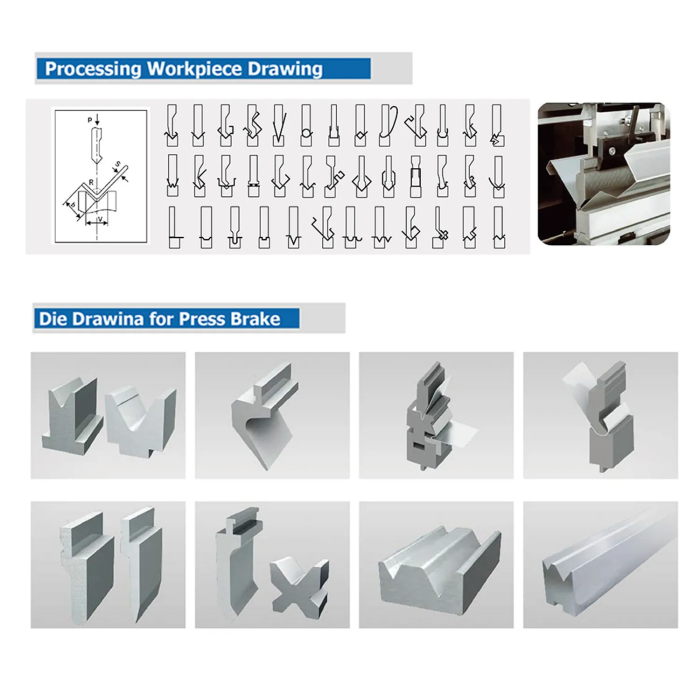

Standard upper and lower molds (upper inclined block type deflection compensation)
Front material supporting frame
