| Selling Units: | Bag/Bags |
|---|
Transportation: Others

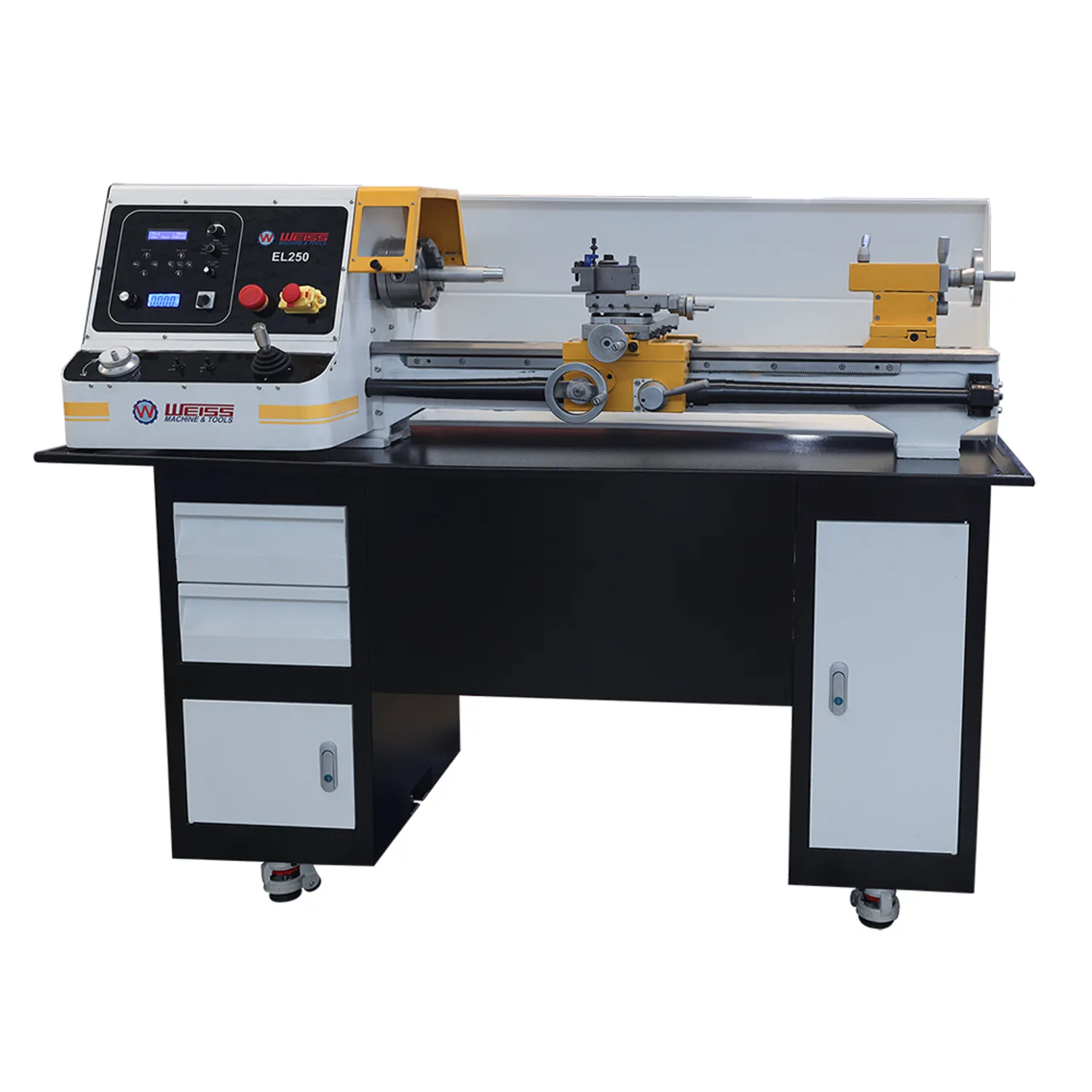

| CONTENT | EL 250-550mm | EL 250-750mm |
| ITEM NO. | 10128250 | 10128255 |
| Distance Between Centers | 550mm | 750mm |
| Swing Over Bed | 250mm | 250mm |
| Swing Over Cross Slide | 145mm | 145mm |
| Width Of Bed | 135mm | 135mm |
| Taper Of Spindle Bore | MT4 | MT4 |
| Spindle Bore | 26mm | 26mm |
| Number Of Spindle Speeds | Variable Speed | Variable Speed |
| Range Of Spindle Speeds | 50-2000rpm | 50-2000rpm |
| Range Of Cross Feeds | 0.02-0.4mm/r | 0.02-0.4mm/r |
| Range Of Longitudinal Feeds | 0.02-0.4 mm/r | 0.02-0.4 mm/r |
| Range Of Threads | 0.25-4 mm | 0.25-4 mm |
| Top Slide Travel | 65 mm | 65 mm |
| Cross Slide Travel | 105mm | 85mm |
| Tailstock Quill Travel | 75mm | 75mm |
| Taper Of Tailstock Quill | MT2 | MT2 |
| Motor | 1.5 Kw | 1.5 Kw |
| Packing Size | 1480*800*1450mm | 1680*800*1450mm |
| Features | |
| 1.Great news for machine fans，more easy for operation ，no need for highly skilled operators. 2.Heavy duty stand with level adjustment and fix function，super convenient 3.Full automation，allowing for easier，quicker work 4.Highly versatile，allowing for use in the creation of all kinds of products and parts 5.Cost efficiency，offering a range of financial benefits，including：Low setup cost， Machining costs，Labor costs and less meterial waste | |
| Details： | |

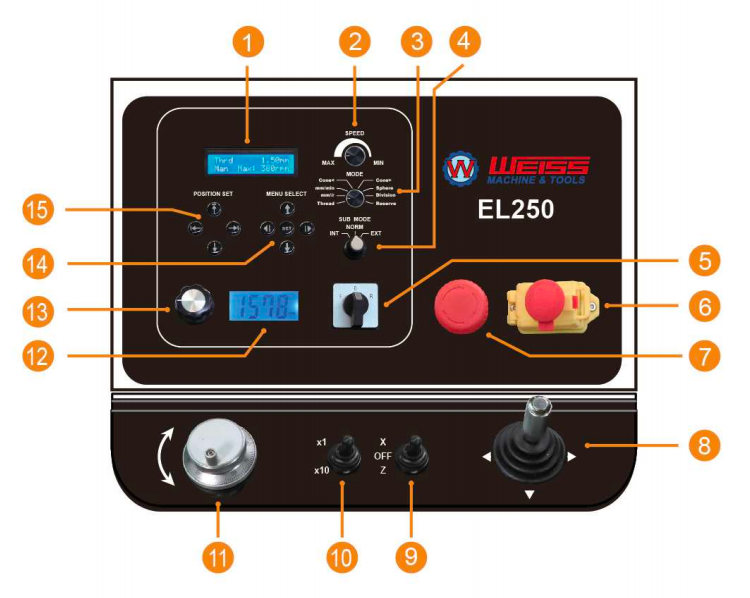

| 1-Function List Screen 2-Feed Adjust Knob 3-Function Select Knob 4-Sub Function Knob 7-Emergency stop swtich 13-Speed Adjust Knob 14-Manual Select Button 15-Position Limited Button | |
