Product Description

Features

The left and right guide rail adopts P-V structure, which is scraped by high precision manual, so that the whole system products have high precision and high stability.
The front and rear feed guide rail of grinding wheel can choose roller and wire rail structure.
Classic control mechanism, simple, safe and reliable.
M1463 series worktable and grinding wheel guide rail adopts high stablehydrostatic guide rail, high rigid dynamic and static pressure spindle.
Universal workhead can be adjusted at any Angle within 90 degrees counterclockwise to adapt to chuck grinding internal and external conical workpiece.

Specifications

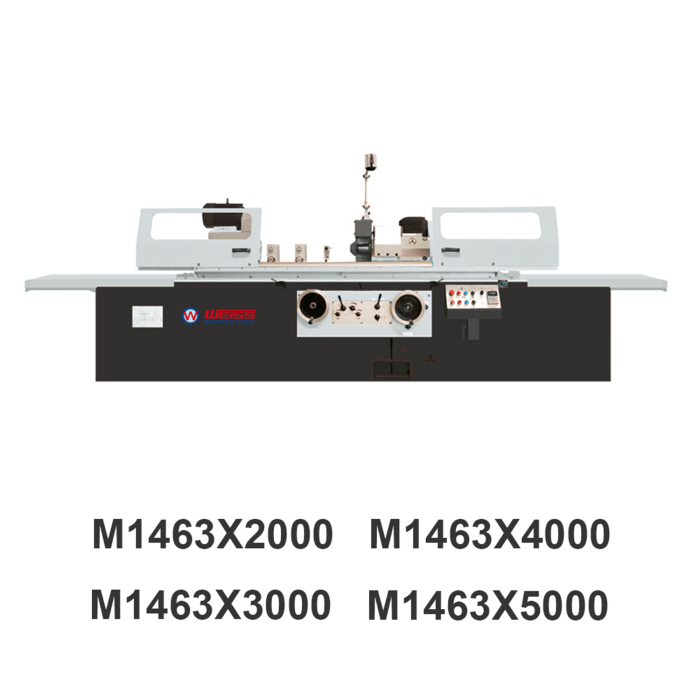

Model No.	Unit	M1463X2000/3000/4000/5000
Item No.		10446320/10446330/10446340/10446350
Specifications：
General capacity
Max. length ground (O.D)		mm	2000, 3000, 4000,5000
Centerheight		mm	370
DiaGround(O.D)		mm	30-630
Dia Ground(I.D)		mm	30-250
Max length ground(I D)		mm	320
Max weight ofwerk piece		Kg	3000
Workhea
Swiveling angle		(°)	+ 90°
Centertaper (MT)		MT	(metric)80#
Spindle speed /SteplessI		r/min	50Hz:10-100 stepless
Wheelhea
Max. dimension of wbeel (ODxWxID)		mm	600 x 75 x 305
Wheel peripheral velocity		m/s	35
Hand feed per rev		mm	rough:4 fine: 4
			rough:0.02 fine:0.5
Hand feed per.gra		mm	rough:4 fine: 0.02
			rough:0.02 fine:0.0025
Internal grinding device
Spindle speed		r/min	1000
Dimension of whee		mm	Max. 175x32x32
			Min 30x25x10
Table
Max. swiveling angle of table	Clockwise	(°)	2° (2000), 1° (3000,4000,5000)
	Anticlockwise	(°)	4° (2000), 3° (3000), 2° (4000),1.5° (4000)
Longitudinal speed range of table		m/min	0.1-2.5
Tailstoc
Center tape			(metric)80#
Quill travel			70
Moto
Wheelhead motor power		Kw	7/11
Internal grinding		Kw	1.5
Workhead motor power		Kw	15
Machining accurac
Roundness		μm	3
Cylindricity		μm	8 (2000,3000) 12 (4000, 5000)
Roughness		μm	Ra 0.32
Machine
Gross weight		t	18(2000), 22 (3000), 23 (4000), 26(5000)
Packing dimension		cm	720x240x226 (2000)
			876x240x226 (3000)
			1100x240x226 (4000)
			1270x240x226 (5000)

Features&Details

Features:

The left and right guide rail adopts P-V structure, which is scraped by high precision manual, so that the whole system products have high precision and high stability.
The front and rear feed guide rail of grinding wheel can choose roller and wire rail structure.
Classic control mechanism, simple, safe and reliable.
M1463 series worktable and grinding wheel guide rail adopts high stablehydrostatic guide rail, high rigid dynamic and static pressure spindle.
Universal workhead can be adjusted at any Angle within 90 degrees counterclockwise to adapt to chuck grinding internal and external conical workpiece.

Standard Accessories

Standard accessories:
Cooling water tank
Externalcircledresser
Grinding wheel chuck and
Standard grinding wheel
Balance shaft
Leveling pad iron
Working light
Open center frame
Center
Internal round abrasives (only M14 series)
Optional Accessories:
Grinding wheel balancing flame
Magnetic separation
Paper bag filter
Grinding center device
Closed center frame
Device end dresser
Device circular dresser
