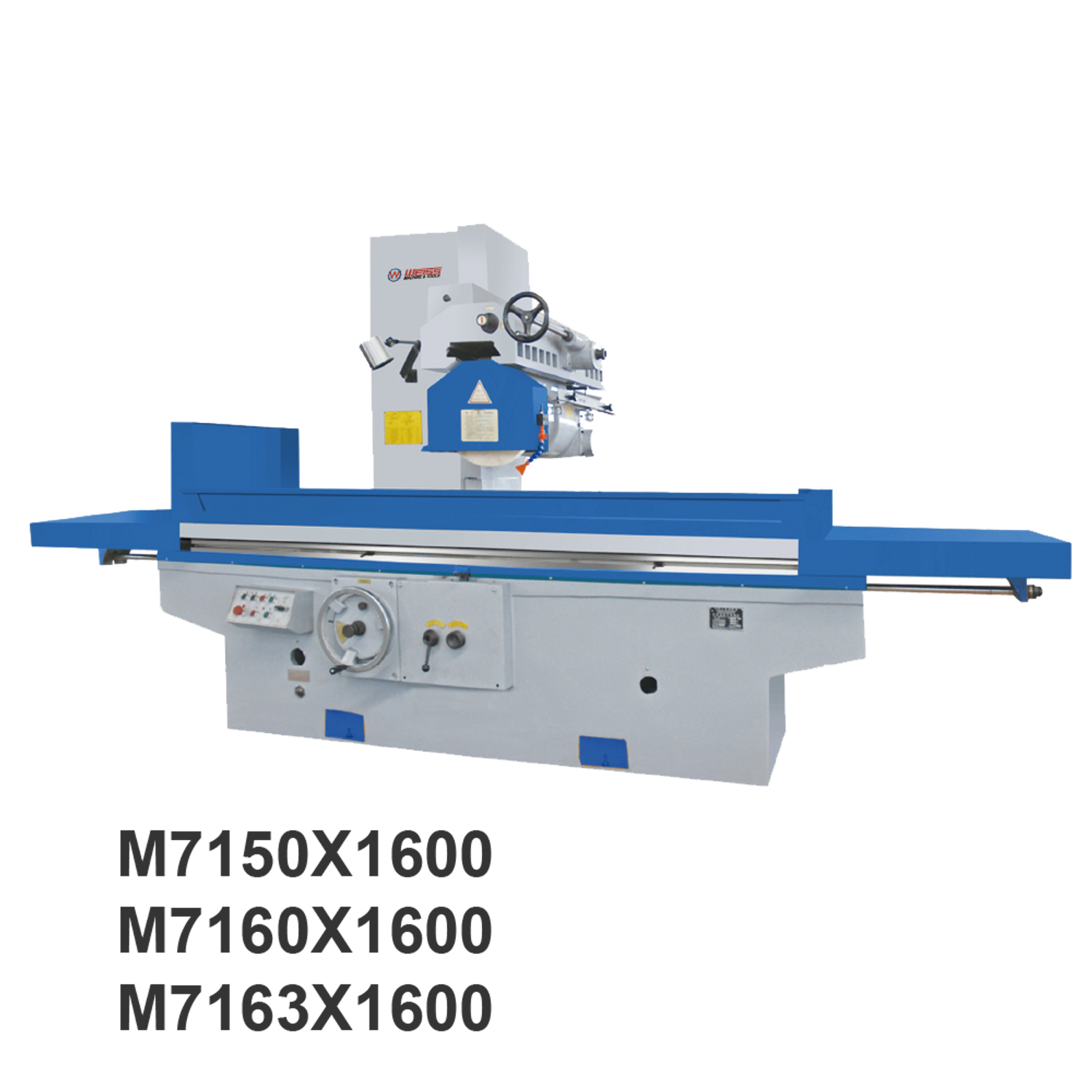

Name: M7150X1600/M7160X1600/M7163X1600 Surface Grinding Machines
Brand: Weiss Machinery
Rating: 4.5 (47 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Specifications

Model No.		Unit	M7150X1600	M7160X1600	M7163X1600
Item No.			10401251	10401261	10401271
Specifications：
Size og workatable (LxWxH)		mm	1600x630x600	1600x600x600	1600x500x600
Max. Longitudinal movement of worktable		mm	1700	1700	1700
Max. Distance from the spindle centerline to the worktable surface		mm	800	800	800
Max. Cross movement grinding head		mm	680	650	550
Vertical movement of the grinding head by handwheel	Per rev.	mm	0.01	0.01	0.01
Vertical movement of the grinding head by handwheel	Per div.	mm	1	1	1
Rapid lifting motor	Power	Kw	0.37	0.37	0.37
Rapid lifting motor	Rotation speed	r/min	1440	1440	1440
Abrasive wheel dim (Dxdxw)		mm	Φ400x40x127	Φ400x40x127	Φ400x40x127
Speed of grinding wheel		r/min	1440	1440	1440
Total power of motor		Kw	13.5	13.5	13.5
Power of spindle motor		Kw	7.5	7.5	7.5
Power of oil pump motor		Kw	5.5	5.5	5.5
Prpcessing accuracy		mm	0.015/1000	0.015/1000	0.015/1000
Surface roughness		um	Ra:0.63	Ra:0.63	Ra:0.63
N/G weight		Kg	6500/7500	6200/7100	6000/6900
Package (LxWxH)		cm	480x185x235	480x185x235	460x185x235

Features&Details

Worktable is drived by hydraulic system in longitudinal direction.Both hydraulic and manual driver are available in the wheel head longitudinal motion,The vertical motion of the Wheel head comes from quickautomatic or manual driver. The bigger diameter of the wheel and the more power of motor achieve outstanding efficiency.
