| Selling Units: | Bag/Bags |
|---|
Transportation: Others
| Model No. | WD5140 | WD5150 |
| Item No. | 10303440 | 10303450 |
| Specifications： | ||
| Max. drilling capacity | Φ40 mm | Φ50 mm |
| Max. feed resistance | 16000 N | 16000 N |
| Max. permissible spindle torque | 350 N.m | 350 N.m |
| Main motor | 3 kw | 3 kw |
| Throat distance | 335 mm | 335 mm |
| Spindle taper | MT4 | MT5 |
| Spindle stoke | 250 mm | 250 mm |
| Spindle box travel (manual) | 200 mm | 200 mm |
| Step of spindle speeds | 12 | 12 |
| Range of spindle speeds | 31.5~1400 rpm | 31.5~1400 rpm |
| Feed rates (steps) | 0.056~1.80 mm/rev. (9) | 0.056 ~ 1.80 mm/my. (9) |
| Max. travel of table | 300 mm | 300 mm |
| Table size | 560 x 480 mm | 560 x 480 mm |
| Distance from spindle nose to table | 750 mm | 750 mm |
| Overall dimension | 1090 x 905 x 2535 mm | 1090 x 905 x 2535 mm |
| Packing size | 2660 x 1120 x 1144 mm | 2650 x 1120 x 1144 mm |
| Net weight | 1250 kg | 1250 kg |

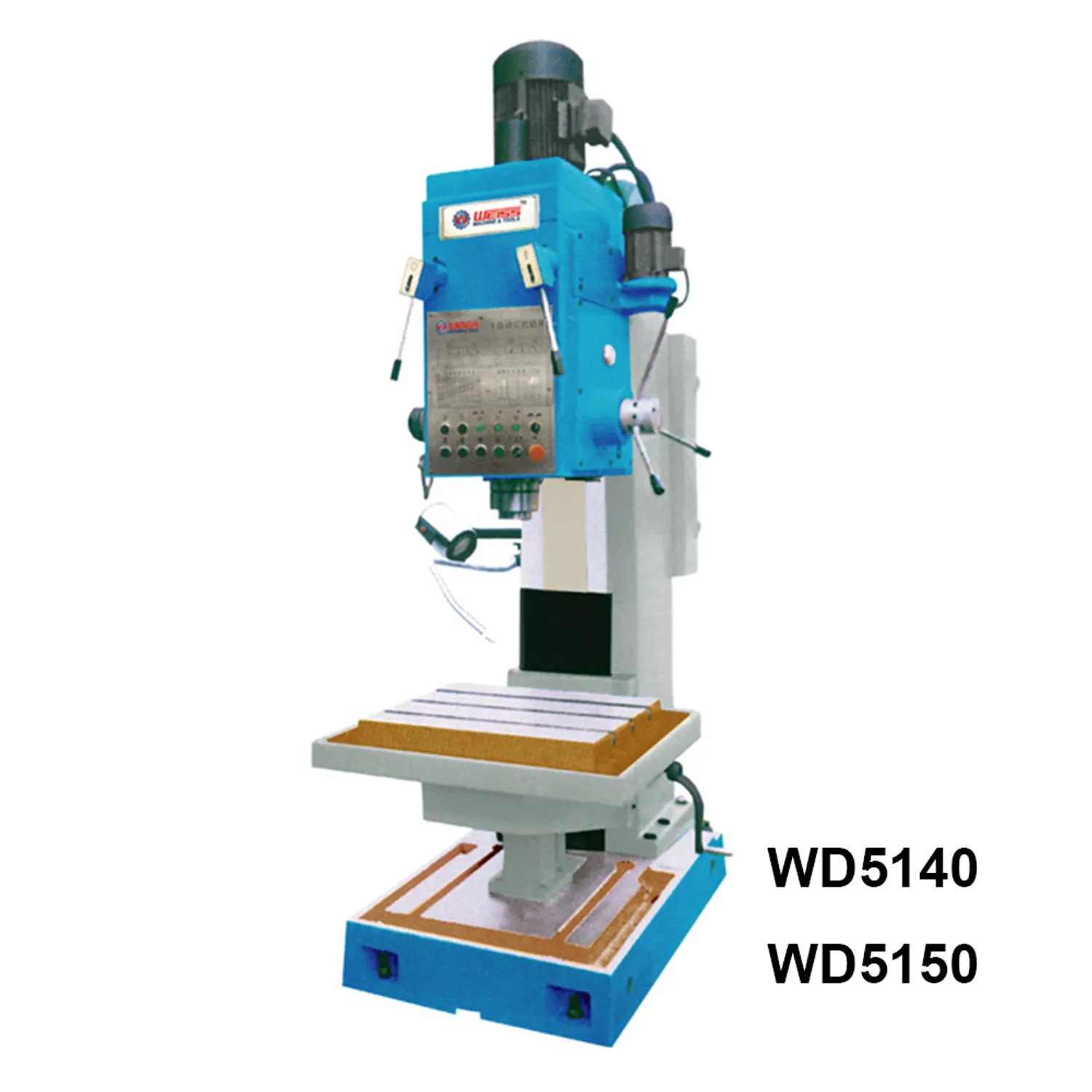

Square-column vertical drilling machine is a universal general-purpose machine.
It's used for counter-sinking,spot-facing drilling,tapping,boring, reaming, etc.
The machlne nas catch the finction of tap-automatically reversing device which is sulfablefor tappng ofblind and determined holes.The machine has high effciency, high accuracy,
Iow noise, wide range of variable speed,centralized controlsgoodlooking appearance, easy maintenance and operation.
