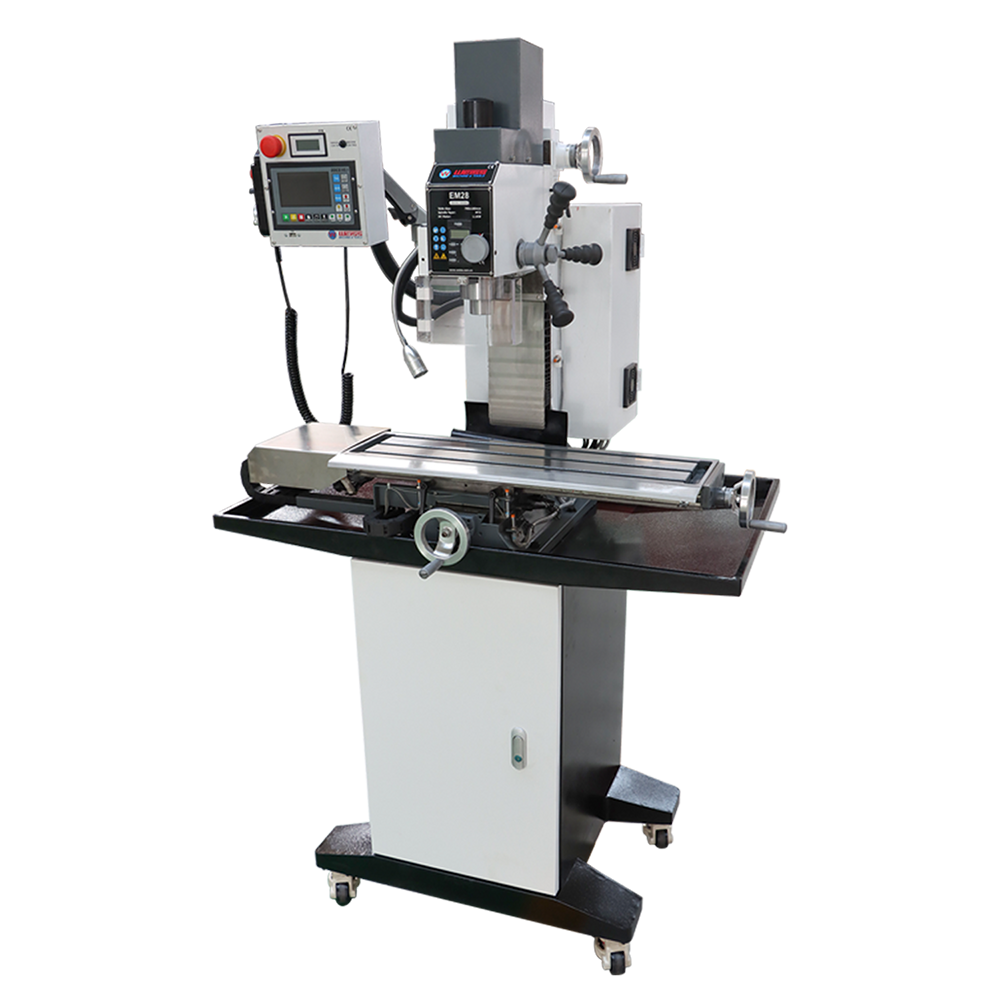

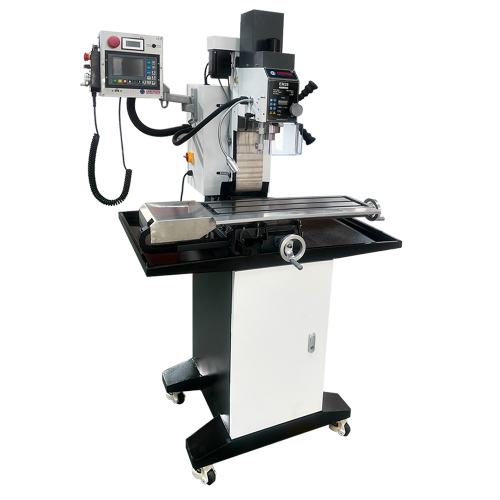

EM28 ELECTRONIC MILLING MACHINE

EM28 ELECTRONIC MILLING MACHINE
EM28 ELECTRONIC MILLING MACHINE
EM28 ELECTRONIC MILLING MACHINE
EM28 ELECTRONIC MILLING MACHINE
EM28 ELECTRONIC MILLING MACHINE
EM28 ELECTRONIC MILLING MACHINE
  • Min. Order: 1 Bag/Bags
  • Transportation: Others
Share:
MOB:19962018358 Contact Us >
Product Detail Description
Product Attributes

Model No.Model No.: EM28 Weiss First Generation High Performance Electronic Mill

Item No10203828

CustomizationBasic configuration Customization for appearance, material, size, etc., please contact us

Packaging & Delivery
Selling Units: Bag/Bags
Supply Ability & Additional Information

TransportationOthers

Product Description
Features

1· All axes with ball screws
2· Servo drive on all axes (X, Y and Z axis)
3· Manual central lubrication for all guide ways
4· Swivelling control panel
5· DDCS V3.1  3/4 axis departure controller
6· 5 inches inch TFT screen, resolution: 480x272,17 operation keys
7· The 17 -key can complete the common off -control operation, and support the FANUC compatibility of the G instruction set with strong universality.
8· Support U disk to read G instructions, G instruction file size is not required;
9· Support standard MPG;
10· Support the single -axis manual movement and continuous operation of the single -axis of the panel;
11· The hand wheel and the extension keyboard can control and operate the controller;
12· Especially quiet running
13· Stable dovetail guide, precision ground and scraped with adjustable wedges
14· Manual spindle fine feed
15· Drilling and milling head can be swiveled by ± 90°
16· Super heavy-duty stand with multi-function wheel, can be adjust height and fix as machine pad(Optional)

Specifications

CONTEN Metric (mm) Imperial (in)
Max. drilling capacity Φ25mm Φ63/64"
Max. end milling capacity Φ16mm Φ5/8"
Max. face milling capacity Φ63mm Φ2-31/64"
Table size 700x180mm 27-9/16"x7-3/32"
Cross travel 145mm 5-45/64"
Longitudinal travel 480mm 18-57/64"
Vertical travel 230mm 9-1/16"
Taper of spindle bore MT2/MT3/R8 R8
Spindle stroke 50mm 1-31⁄32"
T-slot 3x12mm 1/8"x15/32"
Step of spindle speeds Variable Variable
Range of spindle speeds 100-2500rpm 100-2500rpm
X-Aixs continuous operation 6 N.m 6 N.m
Y-Aixs continuous operation 8 N.m 8 N.m
Z-Aixs continuous operation 8 N.m 8 N.m
X-Aixs 4000mm/min 157"-31/64"/min
Y-Aixs 4000mm/min 157"-31/64"/min
Z-Aixs 4000mm/min 157"-31/64"/min
Heads tilt left & right ±90º ±90º
Distance from spindle to column 160mm 6-19⁄64"
Distance from spindle nose to table 290mm 11-27/64"
Motor 1100W 1100W
Dimensions 850x680x770mm 33.46"x26.77"x30.31"
Packing size: 880x710x900mm 34.65"x27.95"x35.43"
Net Weight: 128kg 282lb

Features&Details


Features:

  1. All axes with ball screws
  2. Servo drive on all axes (X, Y and Z axis)
  3. Manual central lubrication for all guide ways
  4. Swivelling control panel
  5. DDCS V3.1 3/4 axis departure controller
  6. 5 inches inch TFT screen, resolution: 480x272,17 operation keys
  7. The 17 -key can complete the common off -control operation, and support the FANUC compatibility of the G instruction set with strong universality.
  8. Support U disk to read G instructions, G instruction file size is not required;
  9. Support standard MPG;
  10. Support the single -axis manual movement and continuous operation of the single -axis of the panel;
  11. The hand wheel and the extension keyboard can control and operate the controller;
  12. Especially quiet running
  13. Stable dovetail guide, precision ground and scraped with adjustable wedges
  14. Manual spindle fine feed
  15. Drilling and milling head can be swiveled by ± 90°
  16. Super heavy-duty stand with multi-function wheel, can be adjust height and fix as machine pad(Optional)

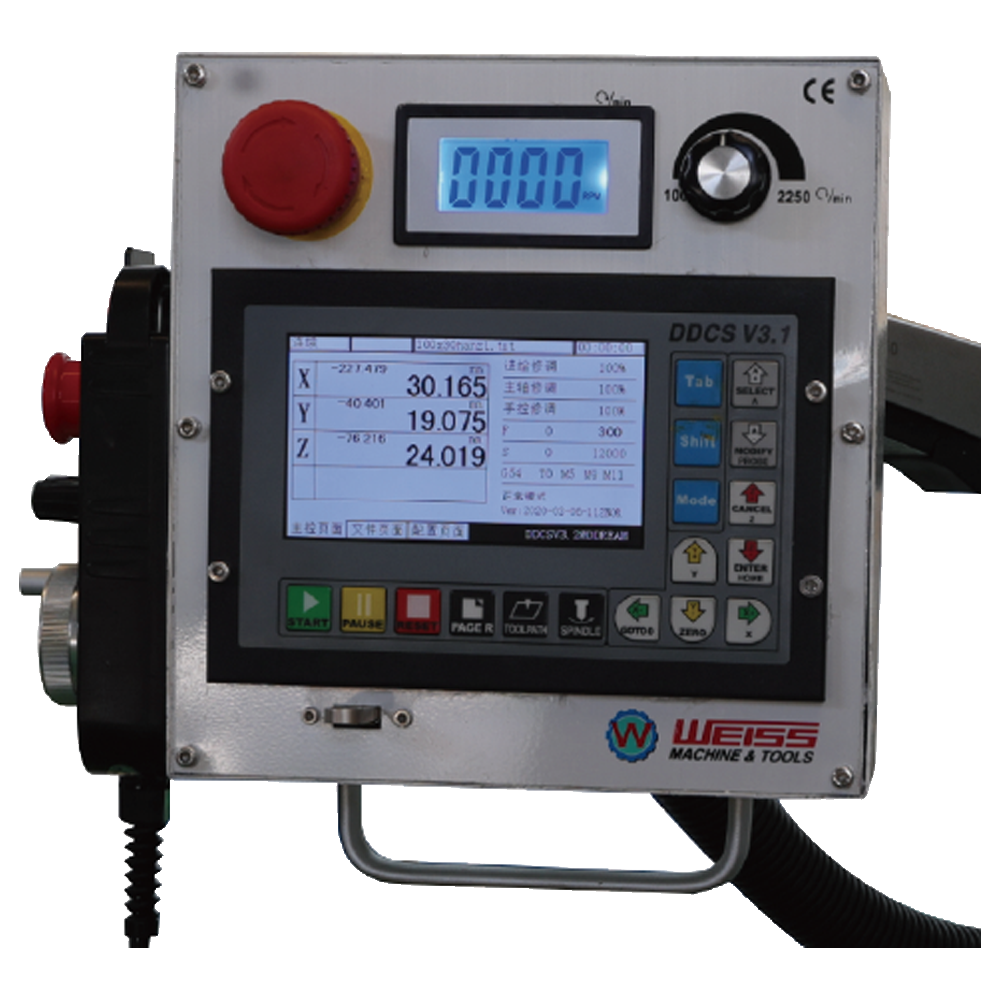

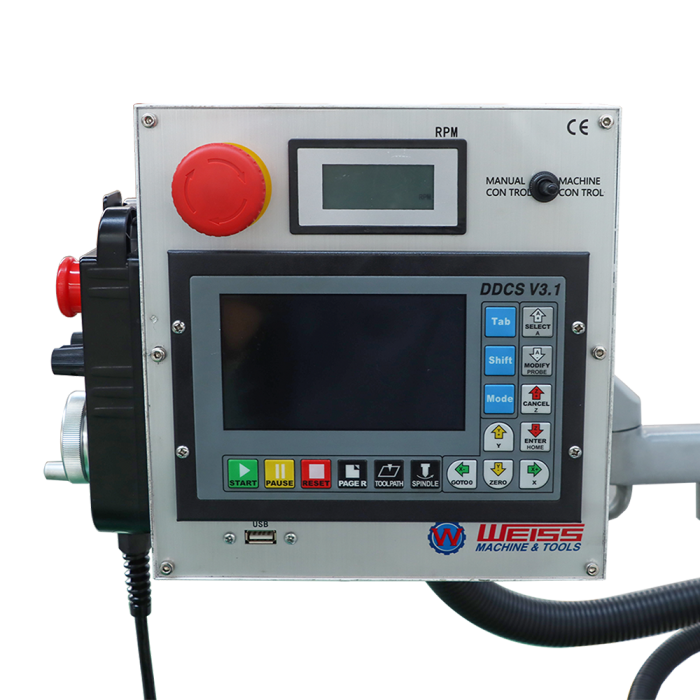

Departure Controller

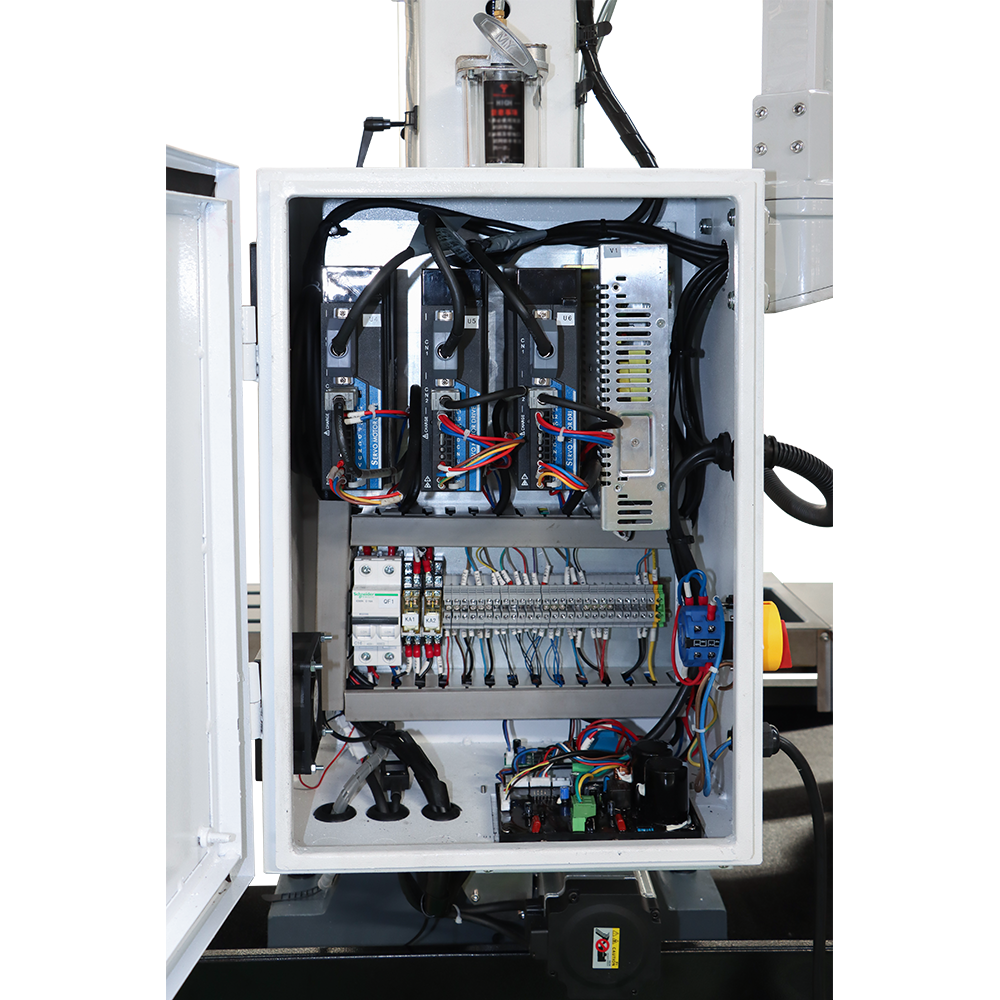

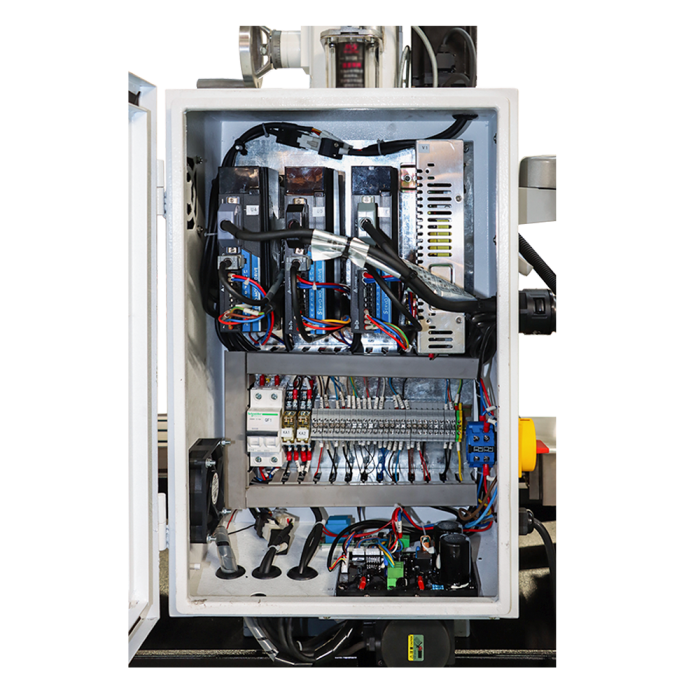

Electric Box

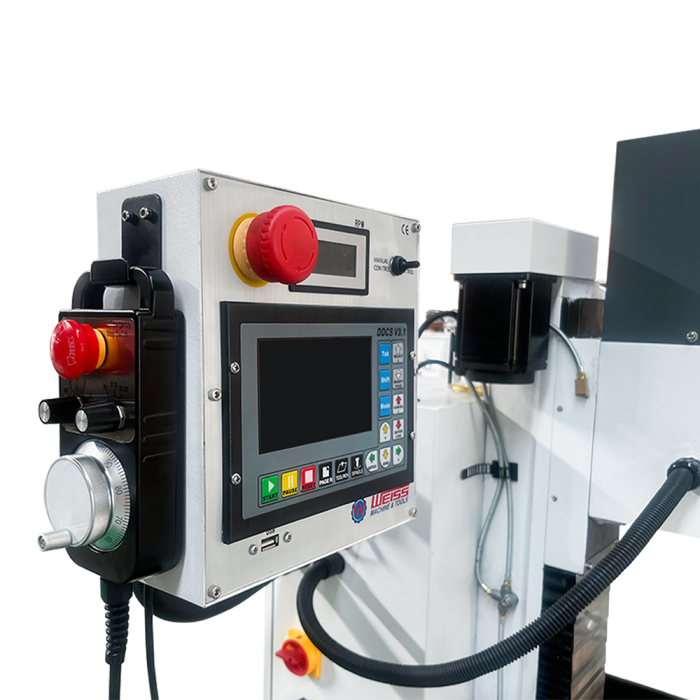

Electronic Handwheel

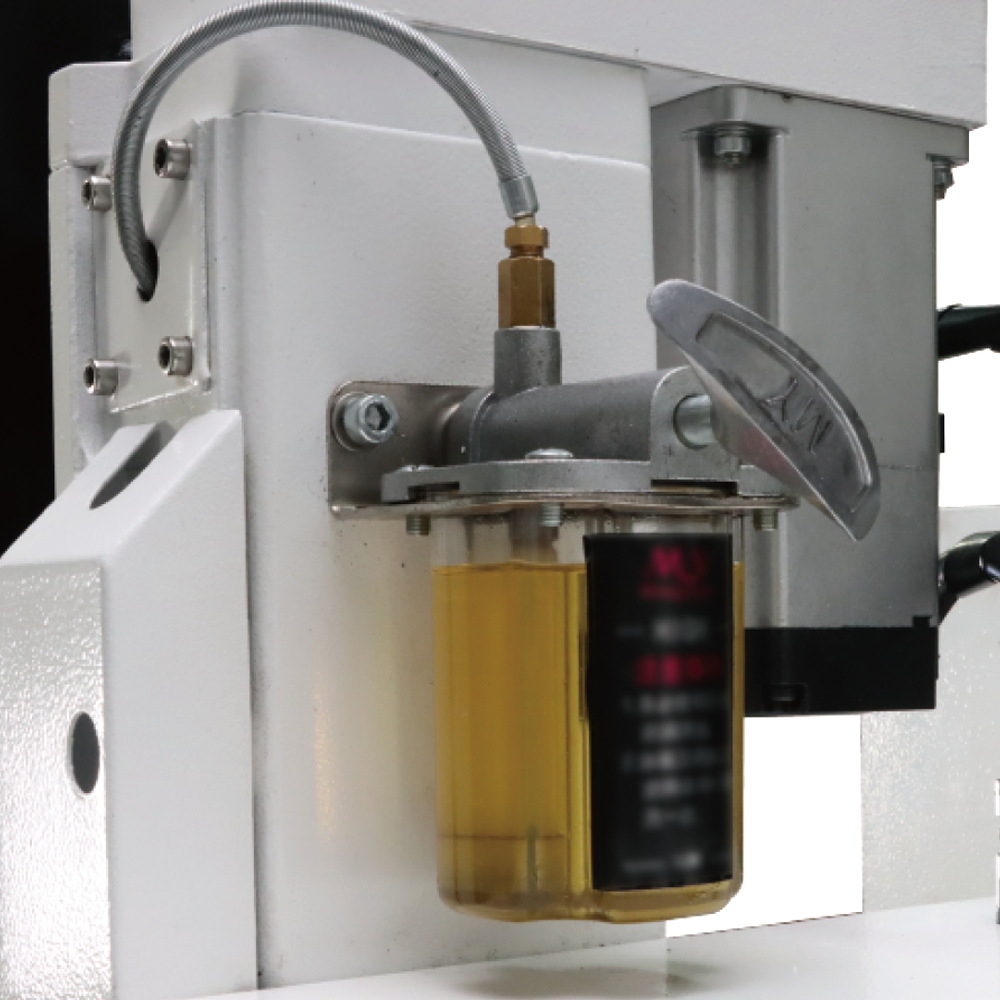

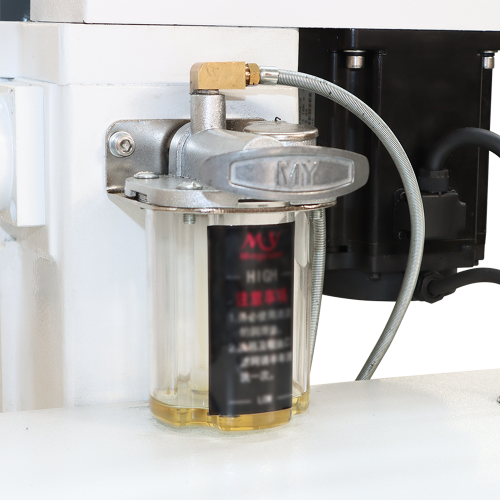

Manual Central Lubrication


Standard Accessories

STANDARD ACCESSORIES: INCLUDED
DDCS V3.1 3/4 axis departure controller YES
Swivelling control panel YES
Electronic handwheel YES
3 Axis ball screws and servo motor YES
Drill chuck 1-16mm YES
Drill chuck arbor YES
Drawbar YES
Digital display of speed range YES
Digital spindle stroke indication YES
Protect cover for spindle YES
Manual central lubrication YES
Tool box & tools YES

Optional Accessories

OPTIONAL ACCESSORIES: Item NO.
Keyless drill chuck 3-16mm 30200024
Mill chuck set ER32 MT3 3-25mm 12pc 22030233
Semi-universal dividing head BS-0 22113005
Deluxe clamping kit sets 58pcs 12mm, M10 22038022
2 way precision tilting vise WOA100 22102104
Universal Machine Vise MVB100 22102024
Machine vise BMS150 22101026
