| Selling Units: | Bag/Bags |
|---|
Transportation: Others

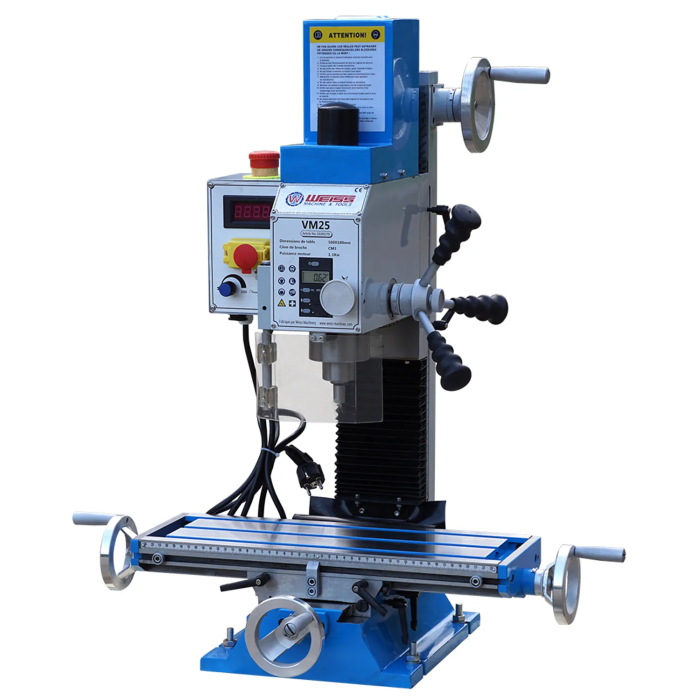

| Model No. | VM25 | VM25(L) |
| Item No. | 10203270 | 10203275 |
| Specifications | ||
| Max. drilling capacity | 25mm | |
| Max. end milling capacity | 16mm | |
| Max. face milling capacity | 63mm | |
| Table size | 500x180mm | 700x180mm |
| T-slot | 3x12mm | |
| Spindle taper | MT3 or R8 | |
| Spindle stroke | 50mm | |
| Step of spindle speeds | Variable | |
| Range of spindle speeds | 100-2250rpm | |
| Spindle incline angle | ±90° | |
| Table travel (X,Y) | 285X140mm | 480X140mm |
| Max.vertical Travel | 270mm | |
| Distance from spindle nose to column | 160mm | |
| Distance from spindle nose to table | 320mm | |
| Motor | 1.1kw | |
| Machine Size | 750/950x580x940mm | |
| Packing size | 560x600x900/730x770x900mm | |
| Net weight | 100/118kg | |
| Shipping Weight | 120/125kg | |
FEATURES:
Variable speed enables to operate easily.Spindle is supported by high precision taper roller bearing.
Single speed belt drive provide more quiet and easy operation.Mill head can be tilled +90.
Precision manual fine down feed.Easy reading scale has satin chrome finish.
Bigger table provides more capacity.
Dovetail column,base & worktable with adjustable taper gibs.
| STANDARD ACCESSORIES |
| Drill chuck 3-16/B16 |
| Drawbar |
| Arbor MT3/B16-M10 |
| Digital depth ruler |
| Spindle Cover With Micro Switch |
| Toolbox & tools |
| Opitional Accessories |
| Tapping Function |
| Keyless Drill Chucks 3-16mm |
| ER25 Collet Chucks MT2-Er25/12pcs |
| Vice Bms100 |
| HHS 19 Pcs Drill Sets |
| End Mill Sets 20PCS 3-20mm |
| 3-Axis DRO(Magnetic Scales) |
| 58pcs clamping kits M12 |
| Oil Tray |
| Stand |
| Luxury Stand |
