Home> Products> Lathe Machines> Heavy Duty Lathes> WM630/WM800/WM1000/WM1200 HEAVY DUTY LATHE MACHINE

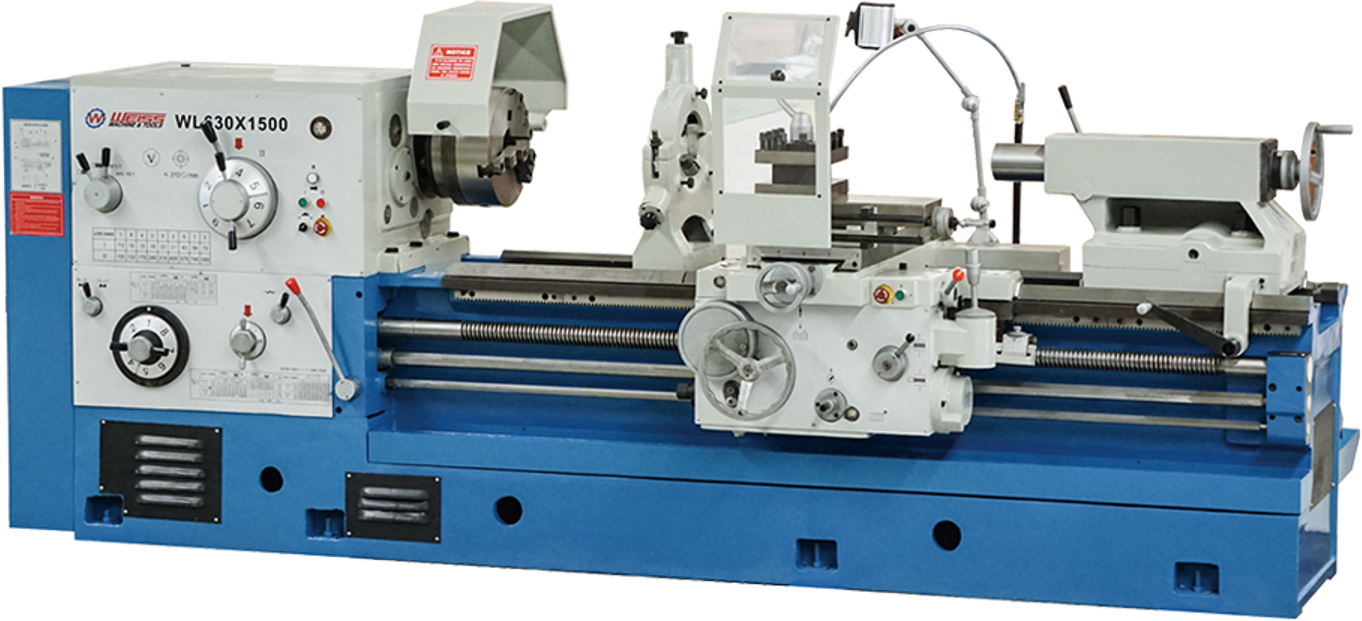

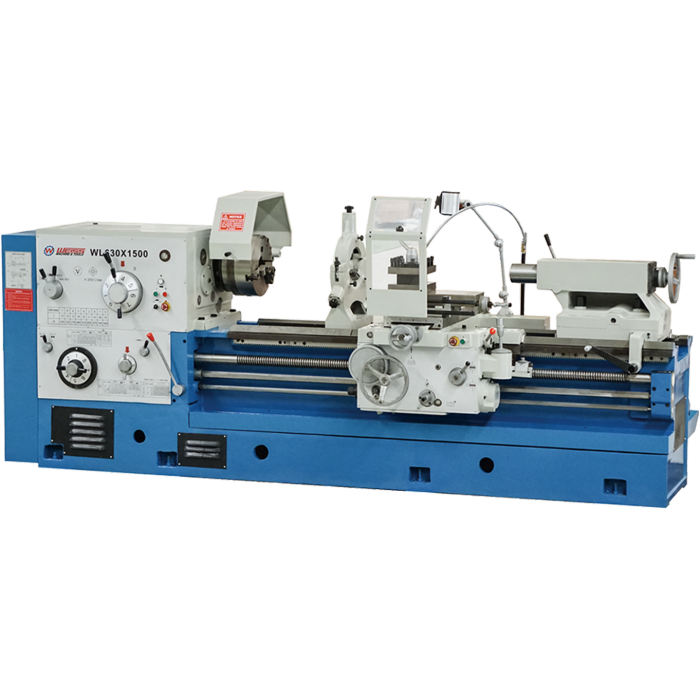

WM630/WM800/WM1000/WM1200 HEAVY DUTY LATHE MACHINE

WM630/WM800/WM1000/WM1200 HEAVY DUTY LATHE MACHINE
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WM630/WM800/WM1000/WM1200 Heavy Duty Lathe Machine

    Distance Between Centers: 1000mm 1500mm 2000mm 3000mm 4000mm 5000mm 6000mm 8000mm

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications

    Model No. WM630/WM800/WM1000/WM1200
    ITEM NO. WM630:10108300-10108309
    WM800:10108320-10108329
    WM1000:10108360-10108369
    WM1200:10108380-10108389
    Specifications： Metric(mm) Imperial (in)
    Max.swing over bed 630/800/1000/1200 mm
    Max. swing over gap 800/1000/1200/1400 mm
    Max. swing over cross slide 345/480/680/680 mm
    Center distance 1m,1.5m,2m,3m,4m,5m,6m,8m,10m,12m,
    Width of bed 600 mm
    Spindle hole 105 mm (130 mm)
    Spindle taper Φ120 mm taper 1:16
    Spindle speeds 7.5-1000 r/min(WM630) 7-720 r/min (18 steps)
    Metric threads mm 1-240mm (52 kinds)
    Inch threads TPI 1-14 (26Kinds)
    Moudle threads mm 0.5-120mm (53 kinds)
    Diametrical threads D.P 1-28 (24 kinds)
    Longitudinal feeds range 0.1-24.3 mm/r
    Cross feed range 0.05-12.15 mm/r
    Rapid feed Longitudinal/Cross 4000 mm/min, 2000 mm/min
    Tool section 32x32 mm
    Cross slide travel 370mm(WM630) 430 mm
    Compound rest travel 200 mm (Automatic feed 170 mm)
    Tailstock quill travel 240 mm
    Tailstock quill diameter 100 mm
    Tailstock quill taper Morse 6#
    Steady rest Φ20-200 mm
    Follow rest Φ20-100 mm
    Main motor 11 kw
    Rapid feed motor 1.1 kw
    Net weight (for WM630) 1m,1.5m,2m,3m,4m,5m,6m,8m,10m,12m,
      4400/4700/5000/5600/6200/6800/7400/8800/10200/11500kg
    Dimension (for WM630) (3000/3500/4000/5000/6000/7000/8000/10000/12000/14000)x1170x1250mm
