| Selling Units: | Bag/Bags |
|---|
Transportation: Others

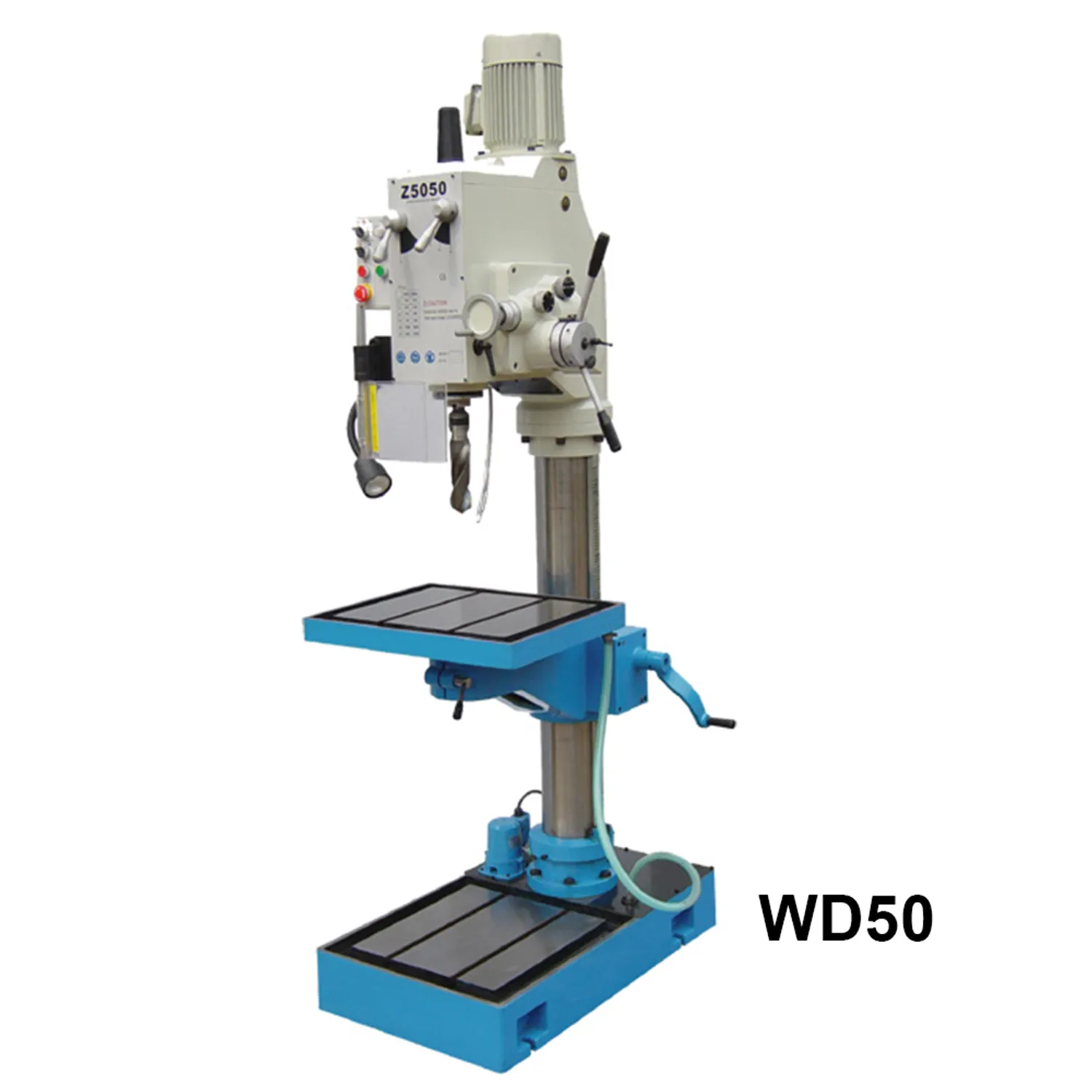

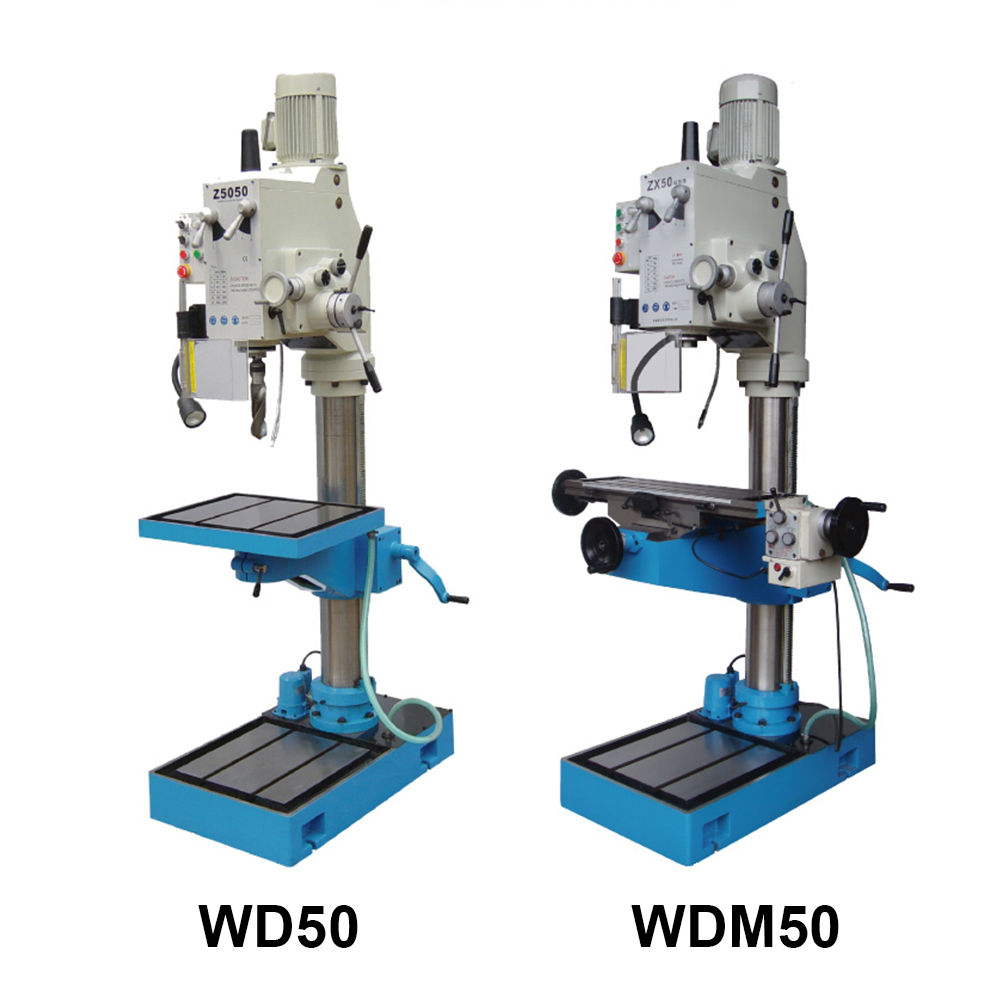

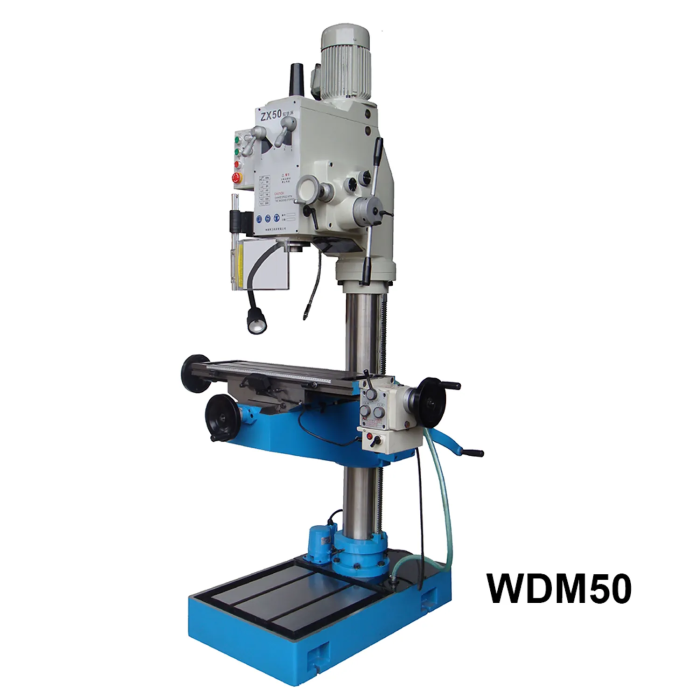

| Model No. | WD50 | WDM50 |
| Item No. | 10303050 | 10303051 |
| Specifications： | ||
| Max. drilling capacity | Φ50 mm | Φ25 mm |
| Max. tapping capacity | 33 mm | 33 mm |
| Max. fac milling capacity | - | 100 mm |
| Max. end milling capacity | - | 25 mm |
| Spindle taper | MT4 | MT4 |
| Spindle stoke | 210 mm (manual) / 180 mm | 210 mm (manual) / 180 mm |
| Step of spindle speeds | 6 | 6 |
| Range of spindle speeds | 50-1500 rpm / 100-3000 rpm | 50~1500 rpm / 100~300 rpm |
| Spindle feed range | 0.1/0.2/0.3/0.4 mm/rev. | 0.1/0.2/0.3/0.4 mm/rev |
| Diameter of quill | 100mm | 100 mm |
| Diameter of column | 150mm | 150 mm |
| Distance from spindle to column | 350 mm | 350 mm |
| Distance from spindle nose to table | 795 mm | 700 mm |
| Distance fiorn spindle end to base | 1290 mm | 1290 mm |
| Table size | 600 x 500 mm | 800 x 240 mm |
| Table travel | - | 650 x 280 mm |
| Table longitudinal feed range | - | 20~ 125 mm/min. |
| T-Slot | 2 x 18-200 mm | 3x18-80mm |
| Base size | 940 x 586 mm | 940 x 580 mm |
| Main Motor | 2.2 kw | 2.2 kw |
| Coolant motor | 75w | 75 w |
| Packing size | 660 x 1062 x 2134 mm | 1010 x 1200 x 2134 mm |
| Net weight | 750 kg | 830 Kg |
