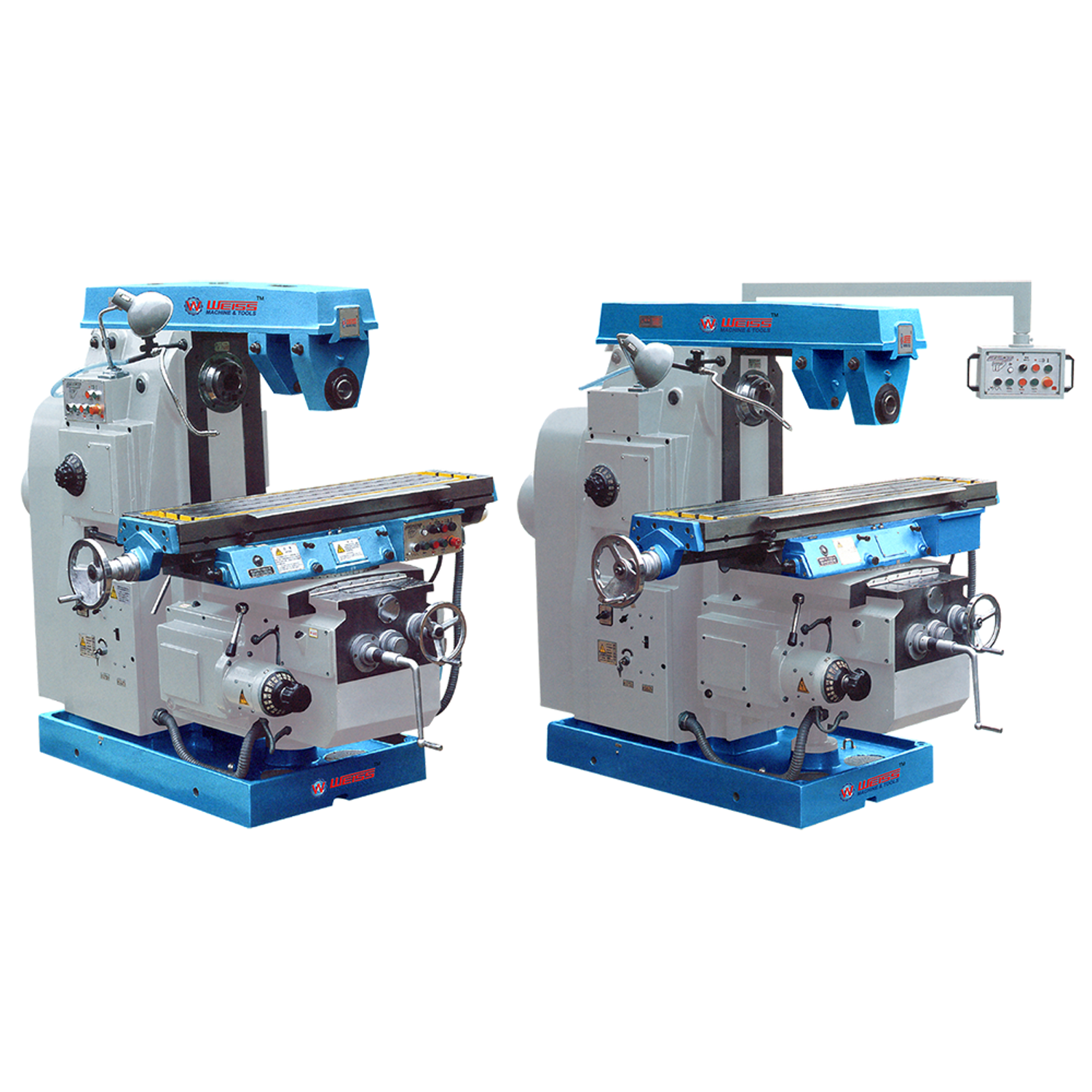

WM6132 Universal Milling Machine

WM6132 Universal Milling Machine
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WM6132 Universal Milling Machine

    Style: 10206132 10206133

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications

    Model No. VM6132

    Item No.

    10206132

    10206133

    Specifications

    Metric(mm)

    Metric(mm)
    Table size 320 x 1320 mm 320 x 1600 mm
    T-slot 3 x 18 x 80 mm
    Table load-bearing 550 kg
    Table travel (X,Y,Z) (Manual/power) 800x300x410mm/780x280x400mm 1020x300x410mm/1000x280x400mm
    Feed speed steps 18 Steps

    Table power feed speed range

    		(X) 15 ~ 750 mm/min
    (Y) 15 ~ 750 mm/min
    (Z) 5.7 - 280 mm/min







    Table rapid feed speed range



    		(X) 2250 mm/min
    (Y) 2250 mm/min
    (Z) 844 mm/min
    Max. Iotary angle of table ±45°
    Distance from spindle end to table 30 ~ 440 mm
    Distance spindle axis to column 235 ~ 535 mm
    Spindle taper 7:24 ISO50
    Distance between spindle center to arm 155 mm
    Arbor diameter Φ22 Φ27 Φ32 mm
    Spindle speed steps 18 Steps
    Spindle speed range 30 ~1500 r/min
    Main motor power 7.5 kw
    Feed motorpower 1.5 w
    Coolant pump power 120w
    Packing size 2327x1792~1720mm 2327X2067X1720 mm
    Net weight 3300kg 3350kg

    Features&Details


    • Versatile application.

    • Heavy, solid design made of high-quality Meehanite cast iron.

    • Vertical and horizontal milling position.

    • Robust machine construction.

    • Milling head can be swiveled and rotated at any spatial angle.

    • Smooth running due to polished gear wheels running in oil bath.All guides are hardened and adjustable by means of wedges.

    • Central lubrication.Large sized decoupled handwheels with scal

      LED machine lamp.Coolant system.Easy operation of the switching elements.

    • Sturdy, rectangular guideways in the Y and Z axes.

    • Height-adjustable protective screen with micro-switch, against flying chips and parts, for maximum protection of the user.

    • Massive and large-dimensioned XY stage, precisely surface-finished with T-slots.

    • Feed motor with fixed steps.Table feed X and Y axis.Z-axis with electric table height adjustment.
