| Selling Units: | Bag/Bags |
|---|
Transportation: Others

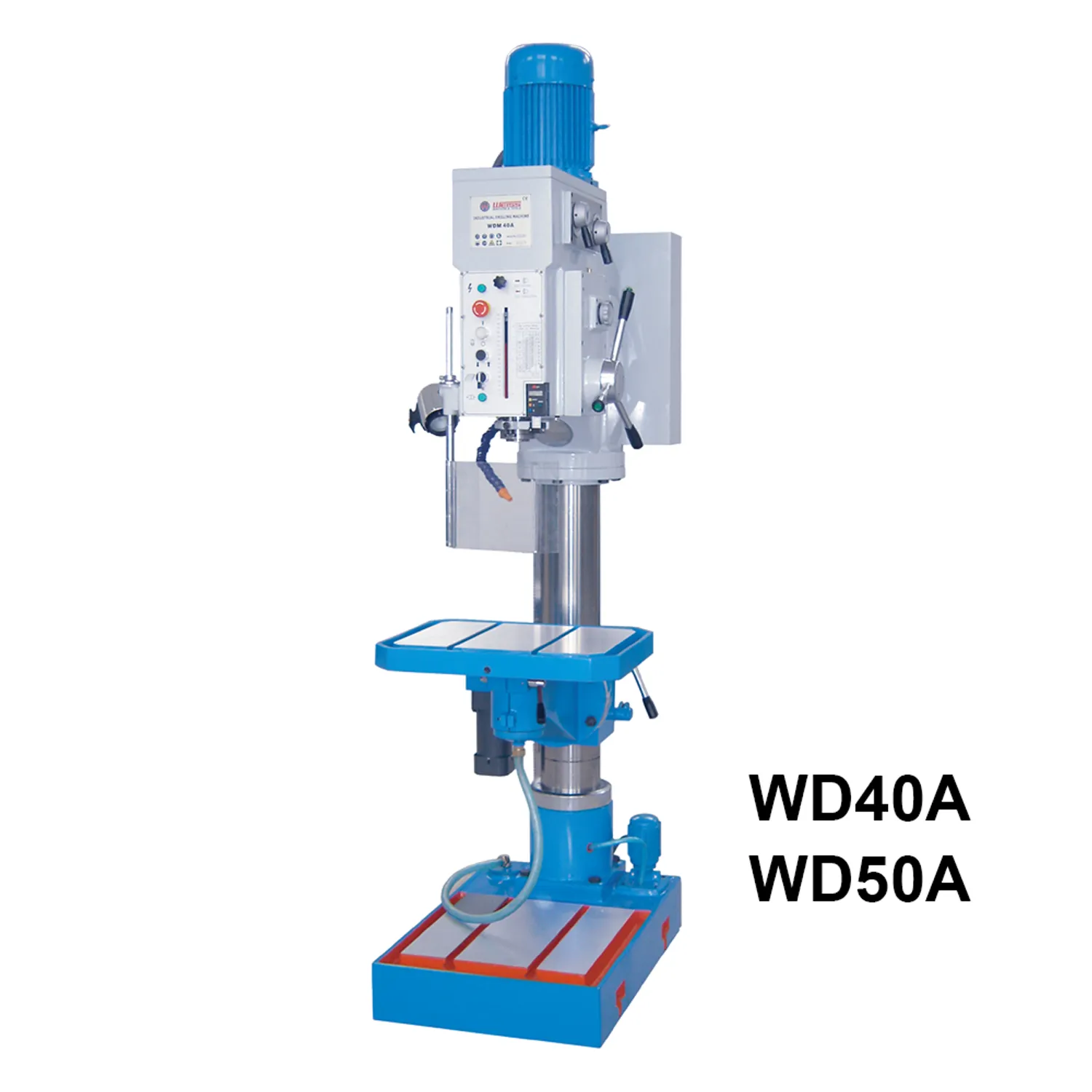

| Model No. | WD40A | WD50A |
| Item No. | 10303240 | 10303250 |
| Specifications： | ||
| Max drilling capaoity | Φ40 mm | Φ50 mm |
| Max tapping capacity | M27 | M30 |
| Spindle taper | MT4 | MT4 or MT5 |
| Spindle stroke | 180mm | 240 mm |
| Step of spindle speeds | 12 | |
| Range of spindle speeds | 42 ~ 2050 rpm | |
| Spindle feeds | 0.07/0.15/0.26/0.40 mm/rev | |
| Diameter of column | 160 mm | 180 mm |
| Distance from spindle to column | 360 mm | |
| Distance from spindle nose to table | 600 mm | |
| Distance from spindle end to base | 1180 mm | 1160 mm |
| Table size | 580 x 450 mm | |
| Table travel | 550 mm | |
| Base size | 820 x 550 mm | |
| Main Motor | 2.2/2.8 kw | |
| Coolant motor | 90 w | |
| Packing size | 700 x 1150 x 2150mm | 700 x 1150 x 2300mm |
| Net weight | 680 kg | 750 kg |
|
The file is encrypted. Please fill in the following information to continue accessing it
Explore our Extensive Range of Precision Metalworking Machine Tools. Discover the Power of Precision and Innovation in Metal and Material Processing with Weiss
Heavy, stable and solid column,
made of high-quality gray cast iron, with ground and scraped dovetail guide,
for high stability and precision
View More
Slant bed and linear guide way CNC lathe.
High speed, High precision, High reliability
View More
Prouduct quality and reliability Competitive pricing
Product innovatio and cariety
View MoreWEISS MACHINERY CO., LTD. to be your trusted partner for metalworking machine tools. We have a wide range of milling machines , tapping machines, and accessories that meet the highest standards of quality, performance, and reliability. Our machines have brushless motors that ensure low maintenance and high efficiency. We also offer online sales, international delivery, secure payment, professional advice, and 20 years of experience. Weiss, make it easy!
