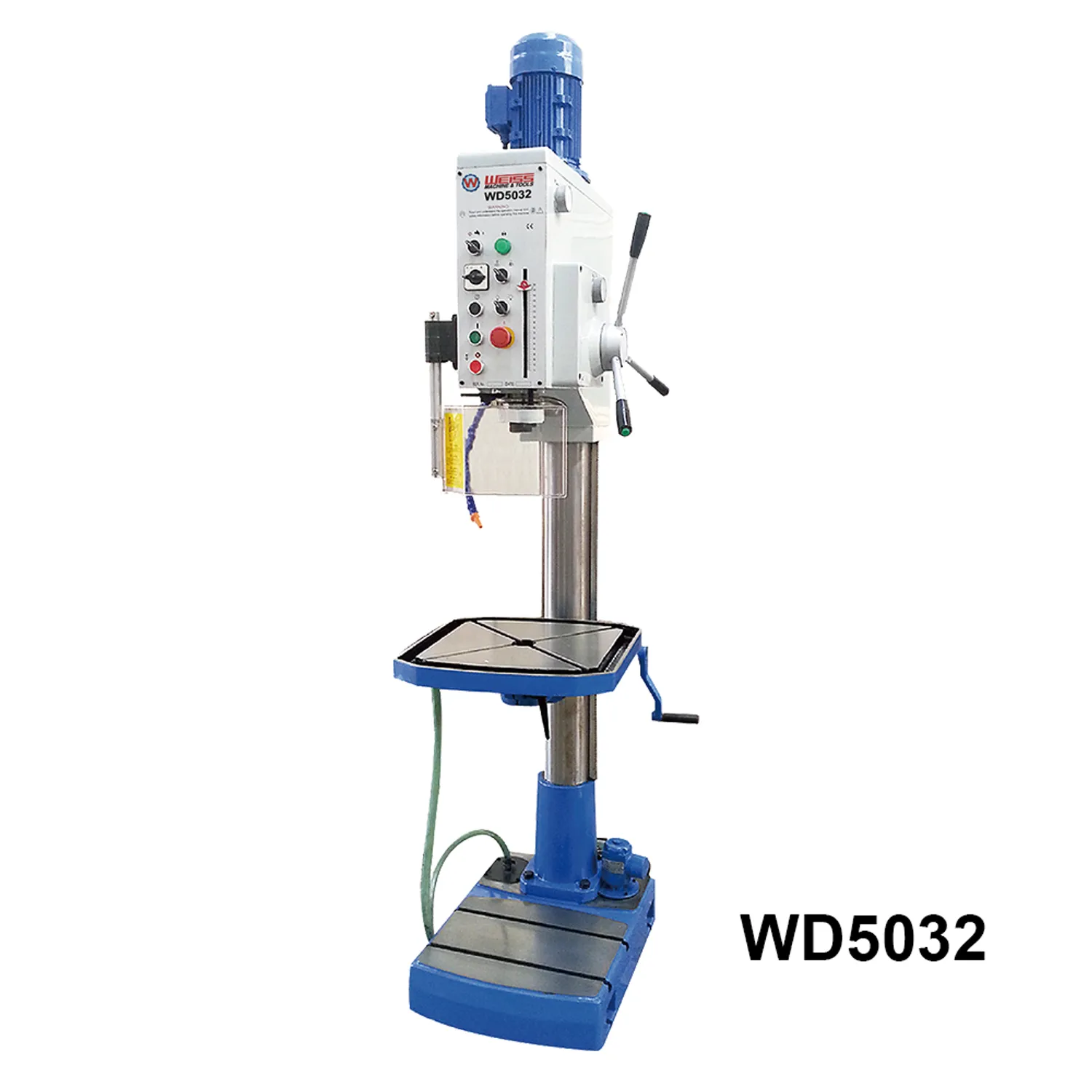

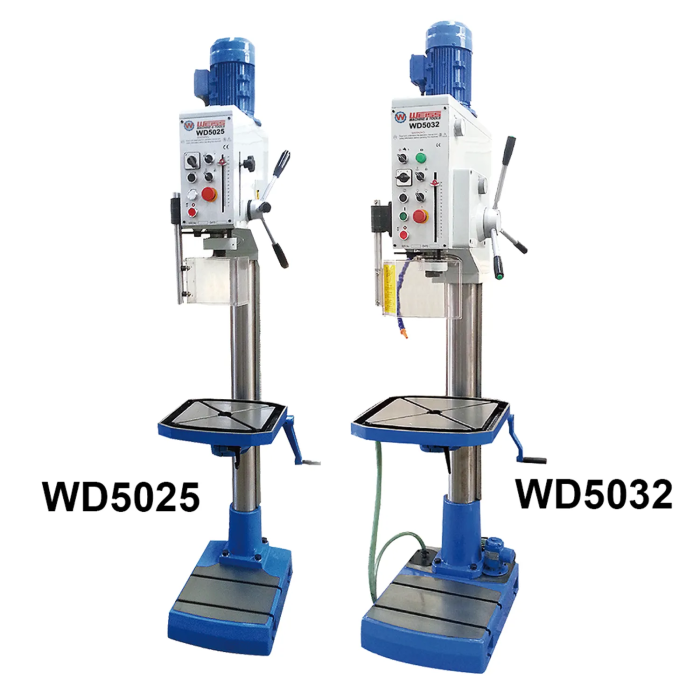

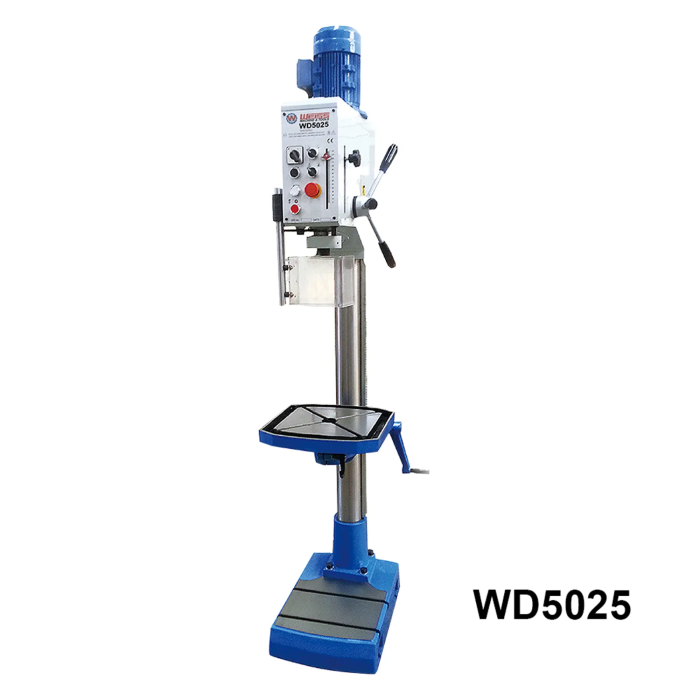

WD5025 WD5032 Vertical Drilling Machines

WD5025 WD5032 Vertical Drilling Machines
WD5025 WD5032 Vertical Drilling Machines
WD5025 WD5032 Vertical Drilling Machines
  • Min. Order: 1 Bag/Bags
  • Transportation: Others
Price:
Get Latest Price
    Contact Now
    Share:
    MOB:19962018358 Contact Us >
    E- MAIL info@weiss.com.cn
    Product Detail Description
    Product Attributes

    Model No.: WD5025 WD5032

    Style: 10303125 10303132

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications

    Model No. WD5025 WDM5032
    Item No. 10303125 10303132
    Specifications：
    Max.drilling and tapping capacity Φ28/M20 Φ32/M24
    Spindle travel 130 mm 160 mm
    Distance spindle center to column surface 250 mm 300 mm
    Max. distance spindle nose to worktable 700 mm 720 mm
    Distance spindle nose to base 1200 mm 1200 mm
    Max. travel of worktable 700 mm 720 mm
    Spindle taper MT3 MT4
    Spindle power feed range - 0.06/0.12/0.18 mm/r
    Spindle speeds range 75-3200 rpm 75-3200 rpm
    Spindle speeds steps 12 12
    Diameter of column 98 mm 125 mm
    Worktable size 380 x 380 mm 460x460 mm
    Dimensions of base 360x535 mm 620x450 mm
    Cooling pump - 40 W
    Motor power 0.85/1.1 kw 1.1/1.5 Kw
    Packing size (LxWxH) 210x40x72 cm 225x57x76 cm
    N.W/G.W 210/250 Kg 350/420 Kg
    20'container O'ty 42 sets 30 sets

    Features&Details

    Features:
    • Change speed with gears and operate easily.
    • High spindle speed and wide speed range.
    • Equipped with coolant system and work lamp.
    • Ideal choice for single piece.
    • small batch and mass.
