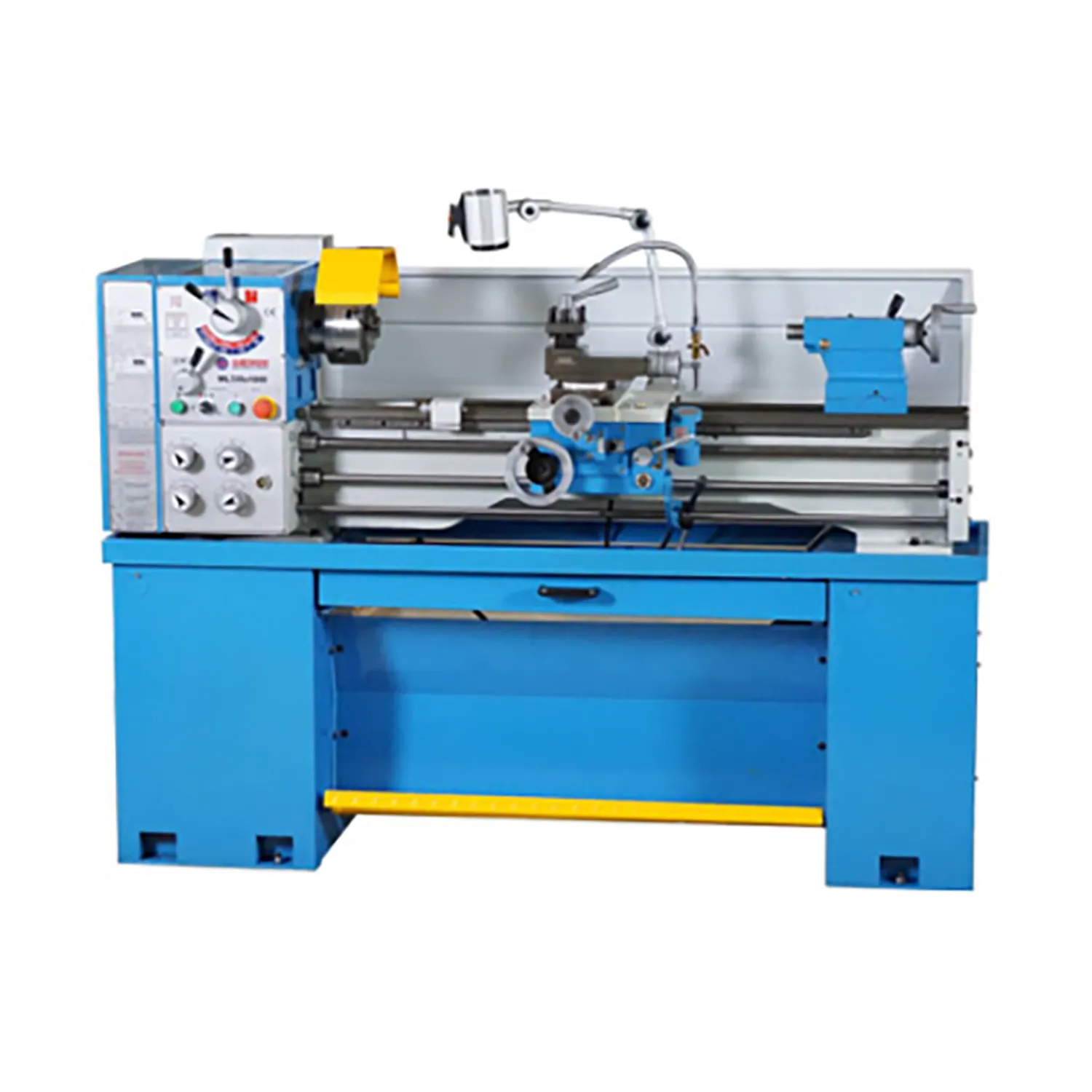

WL330 ENGINE LATHE MACHINE

WL330 ENGINE LATHE MACHINE
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WL330 Engine Lathe Machine

    Item No: 10106330 / 10106331 / 10106332

    Distance Between Center: 500mm 750mm 1000mm

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Features

    1. Large MT5 spindle bore.
    2. Spindle is supported by precision tapered roller bearing.
    3. Geared headstock enables to change speeds quickly.
    4. Carriage mounted spindle control lever.
    5. Adjustable gibs for the slideway.
    6. Precise cuts with cross & longitudinal powerfeed.
    7. Tailstock may be offset for turning taper.


    Specifications

    CONTEN METRIC INFO. INCHES INFO.
    ITEM NO.
    ▪️10106330
    ▪️10106331
    ▪️10106332
    Distance between centers

    ▪️500mm

    ▪️750mm

    ▪️1000mm

    ▪️19-11/16"

    ▪️29-17/32"

    ▪️39-3/8"
    Swing over bed 330mm 12-63/64"
    Swing over gap 476mm 18-47/64"
    Swing over cross slide 198mm 7-51/64"
    Width of bed 187mm 7-23/64"
    Taper of spindle bore MT5 MT5
    Spindle nose D1-4 D1-4
    Spindle bore 38mm 1-1/2"
    Number of spindle speeds 8 8
    Range of spindle speeds 70-2000 rpm 70-2000 rpm
    Range of cross feeds 0.009-0.253mm/r 0.0004"-0.01"/r
    Range of longitudinal feeds 0.052-1.392mm/r 0.002"-0.0548"/r
    Range of inch threads 4-56 T.P.I 4-56 T.P.I
    Range of metric threads 0.4-7mm 0.4-7mm
    Top slide travel 92mm 3-5/8"
    Cross slide travel 170mm 6-11/16"
    Tailstock quill travel 100mm 3-15/16"
    Taper of tailstock quill MT3 MT3
    Motor 1.5KW 1.5KW
    Packing size

    1700x750x1500mm

    1940x750x1500mm

    66.93" x 29.53" x 59.06"

    76.38" x 29.53" x 59.06"
    Net weight

    540 kg

    560 kg

    1190 lb

    1234 lb

    Features&Details


    FEATURES:

    1. Economical, wide useful hobby lathe.
    2. Induction hardened ground bedway.
    3. Large MT5 spindle bore.
    4. Spindle is supported by precision tapered roller bearing.
    5. Geared headstock enables to change speeds quickly.
    6. Carriage mounted spindle control lever.
    7. Adjustable gibs for the slideway.
    8. Precise cuts with cross & longitudinal powerfeed.
    9. Tailstock may be offset for turning taper.




    Standard Accessories

    STANDARD ACCESSORIES: INCLUDED
    3-Jaw Chuck(160mm) yes
    4-jaw chuck(200mm) yes
    Splash Guard

    yes
    Face Plate (250mm) yes
    Steady Rest yes
    Follow Rest

    yes
    Chip Tray yes
    Stand&oil tray yes
    Toolbox & Tools yes

    Optional Accessories

    OPTIONAL ACCESSORIES:
    Taper turning attachment
    Turning tools
    Quick change tool post
    Digital readout system
    Leadscrew cover
    Tool post cover
    Halogen work lamp
    Micro carriage stop
