| Selling Units: | Bag/Bags |
|---|
Transportation: Ocean,Land,Air,Express
| Model No. | WL210CNC | |
| ITEM NO. | 101102105 | |
| CONTENT | Metric | Imperial |
| Swing over bed | Φ210mm | |
| Swing over cross slide | 130mm | |
| Max. processing length | 400mm | |
| Spindle | ||
| Spindle bore | Φ21mm | |
| Spindle taper | MT3 | MT5 |
| Spindle speed | 50-2250rpm | 50-3500rpm |
| Feed speed | ||
| X-axis | 1000mm/min | |
| Z-axis | 1000mm/min | |
| Motor torque | ||
| X-axis | 2N.m | 3.18 N.m |
| Z-axis | 2N.m | 3.18 N.m |
| Precision | ||
| Repositioning accuracy | ±0.01mm | |
| Positioning accuracy | ±0.02mm | |
| Turret | ||
| Type | Electrical | Electrical |
| Number of tools | 4 pos. | 4/6 pos. |
| Size | 12mm | |

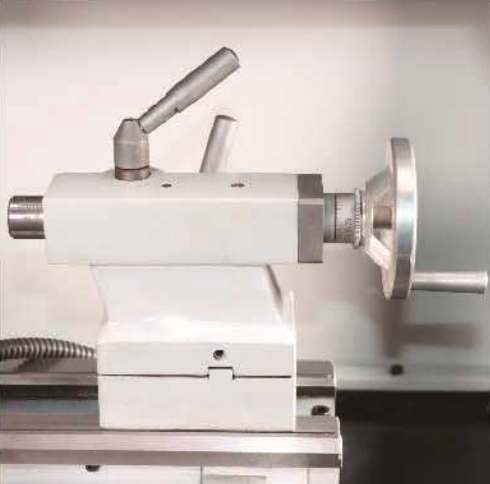

| Tailstock | ||
| Tailstock taper | MT2 | MT2 |
| Quil stroke | 50mm | |
| Quill diameter | 25mm | |
| Electrical Date | ||
| Spindle motor | 0.75KW | 0.75KW |
| Supply voltage | 220V or 110V | 220V or 110V |
| Main trequency | 50HZ or 60HZ | 50HZ or 60HZ |
| Dimensions and weights | ||
| Length approx | 1200mm | |
| Width/depth approx | 700mm | |
| Height approx | 1285mm | |
| Weight appros | 248KG | |
| Features | ||||
| ||||
| Details | ||||
| Standard AccessorieS | ||||
| STANDARD ACCESSORIES: | INCLUDED |
| Full enclosed protective cover | YES |

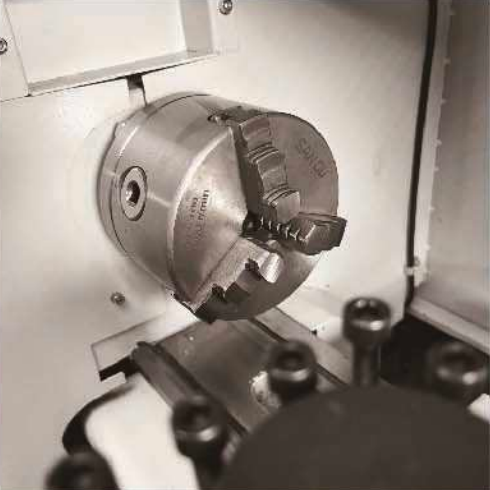

| 3-jaw chuck | YES |
| 4 position eletric tool post | YES |
| Manual chuck & tailstock | YES |
| Manual lubrication system | YES |
| Working light | YES |
| Tool box with tools | YES |
| OPTIONAL ACCESSORIES: |
| CNC contral system as request |
| 6 position electric tool post |
| Pneumatic chuck & tailstock |
| Hydraulic chuck & tailstock |
| Bar feeder |
