| Selling Units: | Bag/Bags |
|---|
Transportation: Others

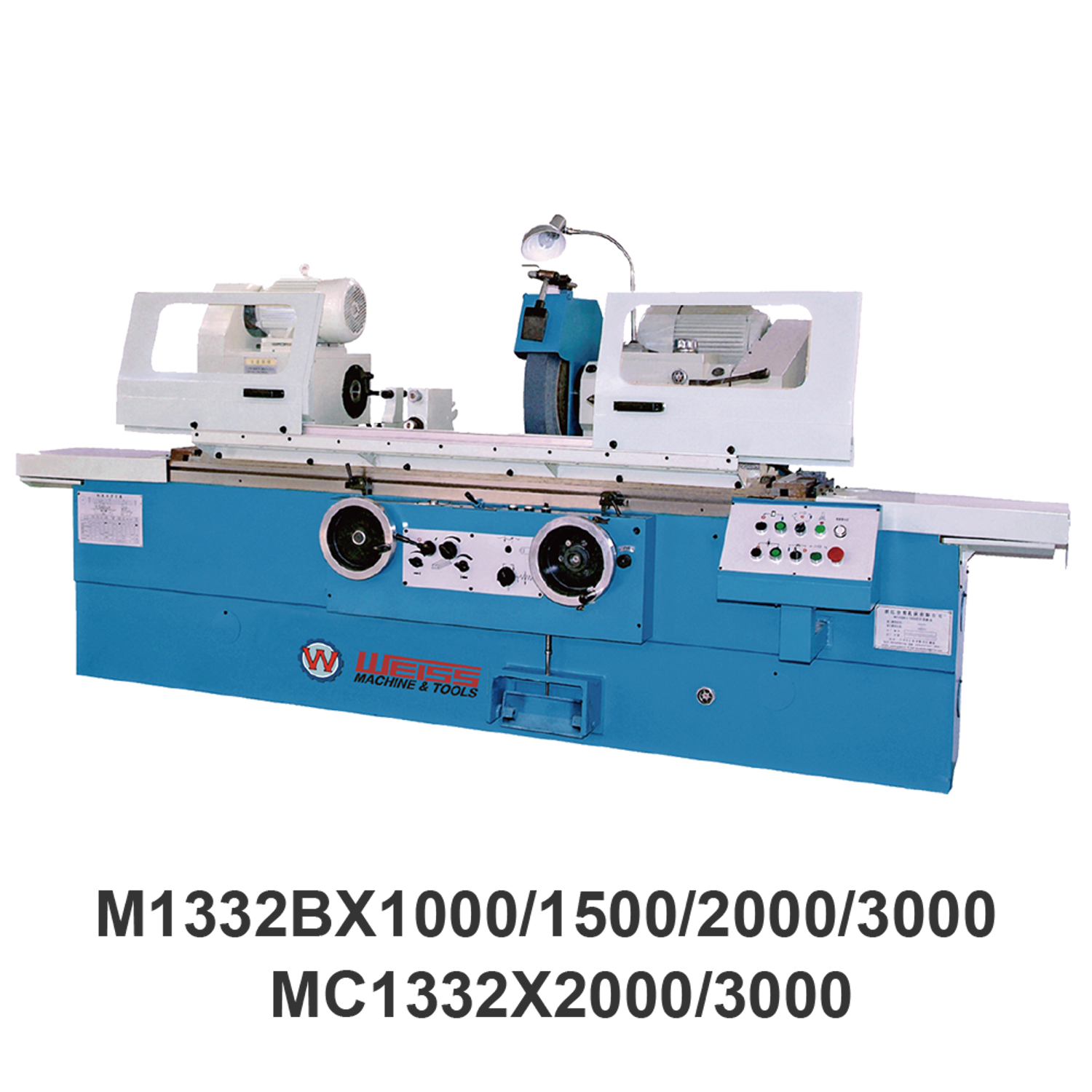

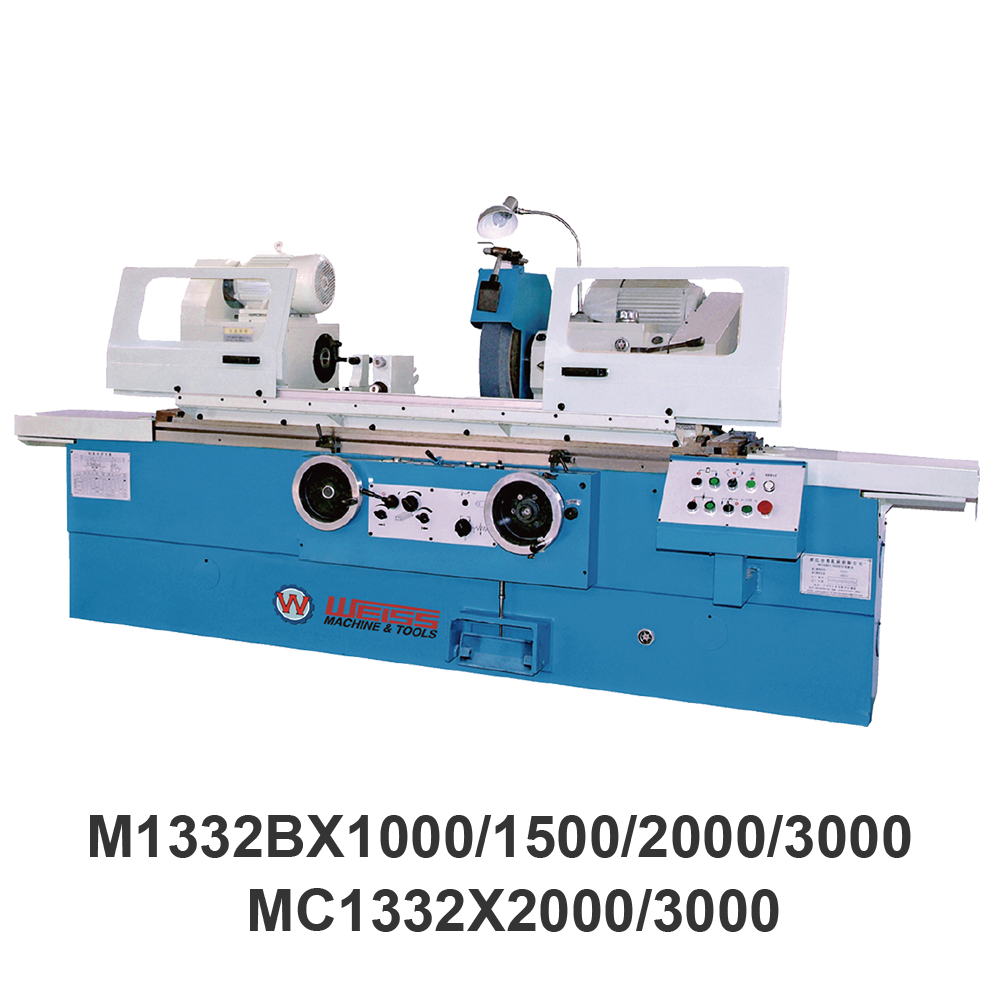

| Model No. | Unit | M1332BX1000/1500/2000/3000 | MC1332X2000/3000 |
| Item No. | 10433210/10433215/10433220/10433230 | 10433222/10433232 | |
| Specifications： | |||
| Grinding length external | mm | 1000/1500~2000~3000 | 2000/3000 |
| Grinding diameters | mm | Φ8 - 320 | Φ8~320 |
| Center height | mm | 180 | 180 |
| Max.traval of worktable | kg | 150 | 500 |
| Worktable speed | m/min | 0.1~4 | 0.1 -4 |
| Max peripheral speed of grinding wheel | mis | 35 | 35 |
| Max.travel of table | mm | 1100/1600/2100/3100 | 2100/3100 |
| Swinel range of worktable | -3~+7°/-3 - +6°/-2 - +5°/-2 - +3° | -2 - +5°/-2 - +3° | |
| External wheel size | mm | Φ600x75xΦ305 | Φ600x75xΦ305 |
| Spindle speed of worktable | r/min | 26, 52, 90, 130, 180, 260 | |
| Grinding spindle speed | r/min | 1100 | 1100 |
| Headstock top | morse | NO.5 | NO.5 |
| Headstock top | morse | NO.4/NO.4/NO.5/NO.5 | NO.5 |
| Rapid advance and with drawalamount | mm | 50 | 50 |
| Wheelhead displacement per rev of handwheel coarse/fine | mm | 2/0.5 | 2/0.5 |
| Wheelhead displacement per div of handwheel coarse/fine | mm | 0.01/0.0025 | 0.01/0.0025 |
| Total motor power | kw | 14.27 | 14.27 |
| Roundness | μm | ≦1500 1.5 | ≦1500 1.5 |
| ＞1500 2.5 μm | ＞1500 2.5 μm | ||
| Surface waviness | μm | 1 um | 1 um |
| Uniform of dia. in longitudinal section | μm | ≦ 750 5 μm | ≦ 750 5 μm |
| ＞750 8 μm | ＞750 8 μm | ||
| Surface roughness | μm | Ra 0.16 μm | Ra 0.16 μm |
| Overall dimensions(LxWxH) | mm | (3605/4605/5605/7605)x1810x1515 | (5605/7605)x 1810x1515 |
| Machine weight | kg | 4000/4600/6600/8600 | 6600/8600 |
| Features: |
|
| Standard accessories: | |
| Complete set of electric epuipment | |
| Complete set of coolant epuipment | |
| Wheel peripheral dresser | |
| Wheel flanges | |
| Wheel balancing mandrel | |
| Open type steady rest | |
| Leveling wedge | |
| Optional Accessories: | |
| Wheel Balancing stand | |
| End-face dresser | |
