| Selling Units: | Bag/Bags |
|---|
Transportation: Others
| CONTENT | METRIC INFO. |
| ITEM NO. | 10121150/10121151/10121152 |
| Specification | |
| Max. swing dia. over bed | 500mm |
| Max. swing dia. over slide | 250mm |
| Maximum turning diameter (disc) | 500mm |
| Max.work piece length | 1000/1500/2000mm |
| Maximum turning length | 850/1350/1850mm |
| Spindle nose | A2-8/A2-11 |
| Spindle bore | 82/130 Φ/mm |
| Spindle taper | Metric90/Metrici 140Φ/mm |
| Spindle speed | 150-1800/150-800mm |
| Spindle type | Variable |
| Spindle motor power | 7.5/11Kw |
| Chuck type | Manual chuck |
| Chuck size | 250/320/380mm |
| X axis rapid traverse | 6 m/min |
| Z axis rapid traverse | 8 m/min |
| X axis servo motor torque | 5/7.5 N.m |
| Z axis servo motor torque | 7.5/10/15 N.m |
| X axis travel | 280mm |
| Z axis travel | 1000/1500/2000mm |
| Guide way type | hard guide |

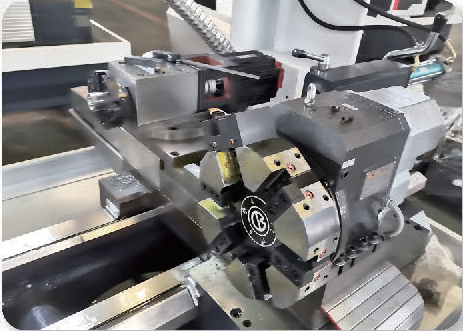

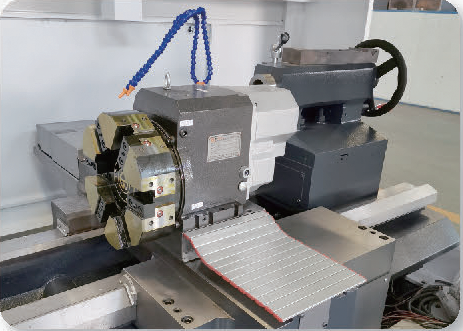

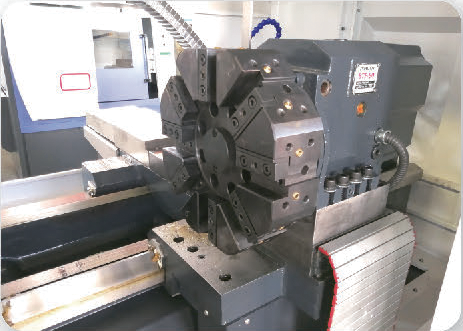

| Capacity of tool post | 4 |
| Tool shank size | 25X25 mmxmm |
| Tail stock quill dia | 75 Φ/mm |
| Tail stock quill travel | 150mm |
| Tail stock quill taper | MT5# |
| Total rated power | 11/12/13Kw |
| Total rated current | 23/26/29A |
| Net weight | 2700/3100/3500Kg |
| Machine dimension(LxWxH) | 2650/3250/3750X1700X1820mm |
| Features | |
|
