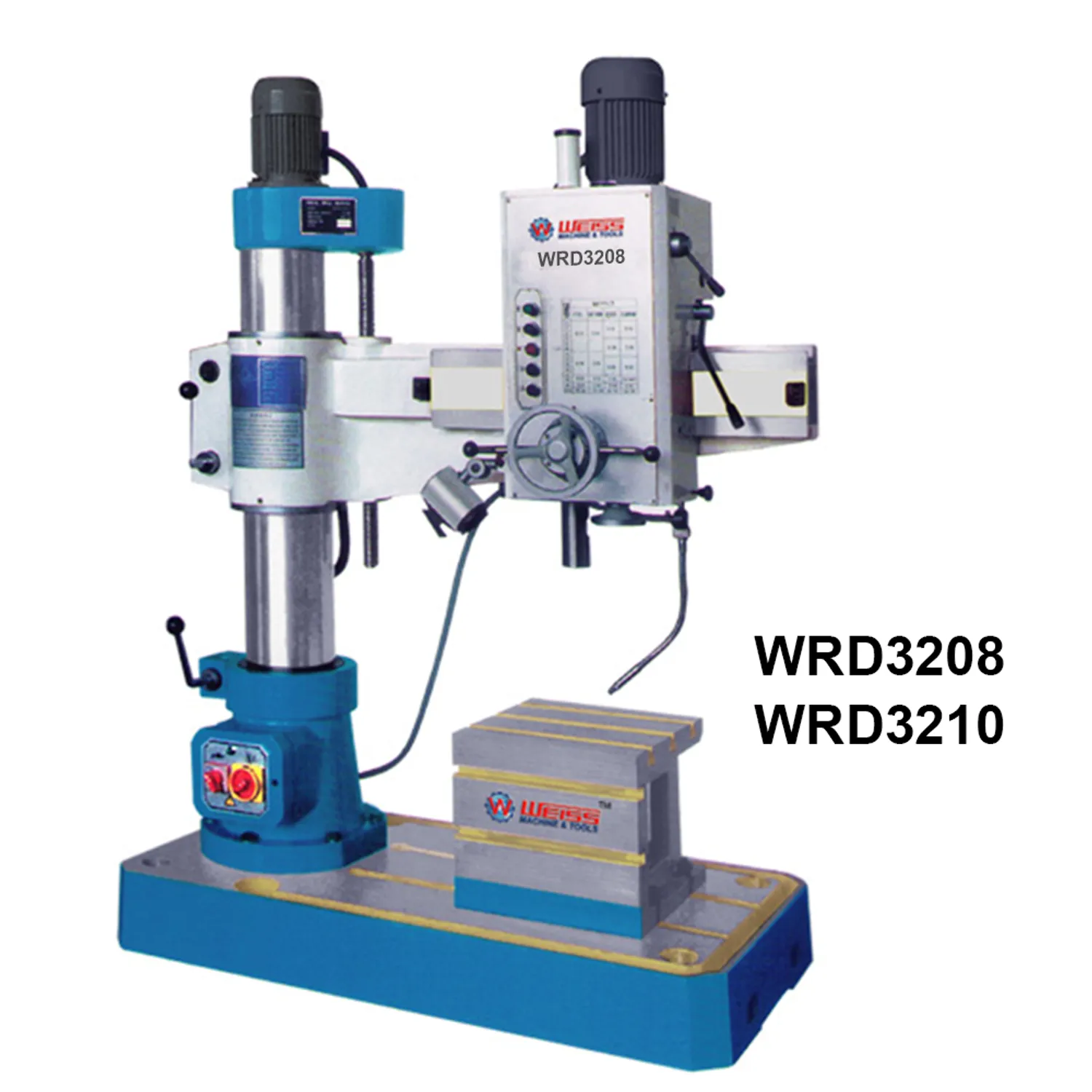

Name: WRD3208 WRD3210 Radial Drilling Machines
Brand: Weiss Machinery
Rating: 4.8 (18 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Specifications

Model No.	WRD3208	WRD3210
Item No.	10305323	10305325
Specifications：
Max. drilling capacity	Φ32 mm	Φ32 mm
Distance from spindle wis to column	320~820 mm	320~1000 mm
Diameter of column	200 mm	240 mm
Spindle taper	MT4	MT4
Spindle stoke	240 mm	280 mm
Step of spindle speeds	6	16
Range of spindle speeds	75~1220 rpm	32~2500 rpm
Step of spindle feeds	3	8
Range of spindle feeds	0.1~0.25 mm/rev	0.1~1.25 mm/rev.
Distance from spindle nose to base	120~860 mm	220~1000 mm
Dimension of worktable	400 x 400 x 350 mm	600 x 450 x 450 mm
Base size	1370 x 700 x 160 mm	1710 x 800 x 160 mm
Main Motor	l.5 kw	2.2kw
Overall size	1407 x 720 x 1885 mm	1760 x 800 x 2050 mm
Packing size	1550 x 770 x 2100 mm	1870 x 970 x 2100 mm
Net weight	1200 kg	1600 kg

Features&Details

With safe and reliable feed safety machine, all parts easy operation and change.
All controls centralized on the head stock easy operation and change.
Main parts are made by machine center which high precision and efficiency, ensuring reliability and high quality.
Integrating technology for casting parts is excellent, ado-pting casting equipment, ensuring high quality of materia for basic parts.
Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.
Main gears are machined by gear grinding, the machine ensuring high precision and Iow noise.
The machine with small appearance and much function,the machine widely used for drilling,counterboring,tapping,etc.
