| Selling Units: | Bag/Bags |
|---|
Transportation: Others
| CONTENT | Metric(mm) | Imperial (in) |
| Item No. | 10203328 | |
| Max. drilling capacity | Ø32 mm | |
| Max. end milling capacity | Ø20 mm | |
| Max. face miling capacity | Ø76 mm | |
| Table size | 840x210 mm | |
| Cross travel | 180 mm | |
| Longitudinal travel | 520 mm | |
| Vertical travel | 340 mm | |
| Taper of spindle bore | MT3 / R8 / ISO30 | |
| Spindle stroke | 100 mm | |
| T-slot | 3x14 mm | |
| Step ofspindle speeds | Variable | |
| Range of spindle speeds | 80-5000 rpm | |
| Heads tilt left & right | ±90° | |
| Distance from spindle to column | 190 mm | |
| Distance from spindle nose to table | 470 mm | |
| Motor | 1500 W | |
| Dimensions | 1300x710x1185 mm | |
| Packing size: | 1100x700x1150 mm | |
| Net Weight: | 269 kg |

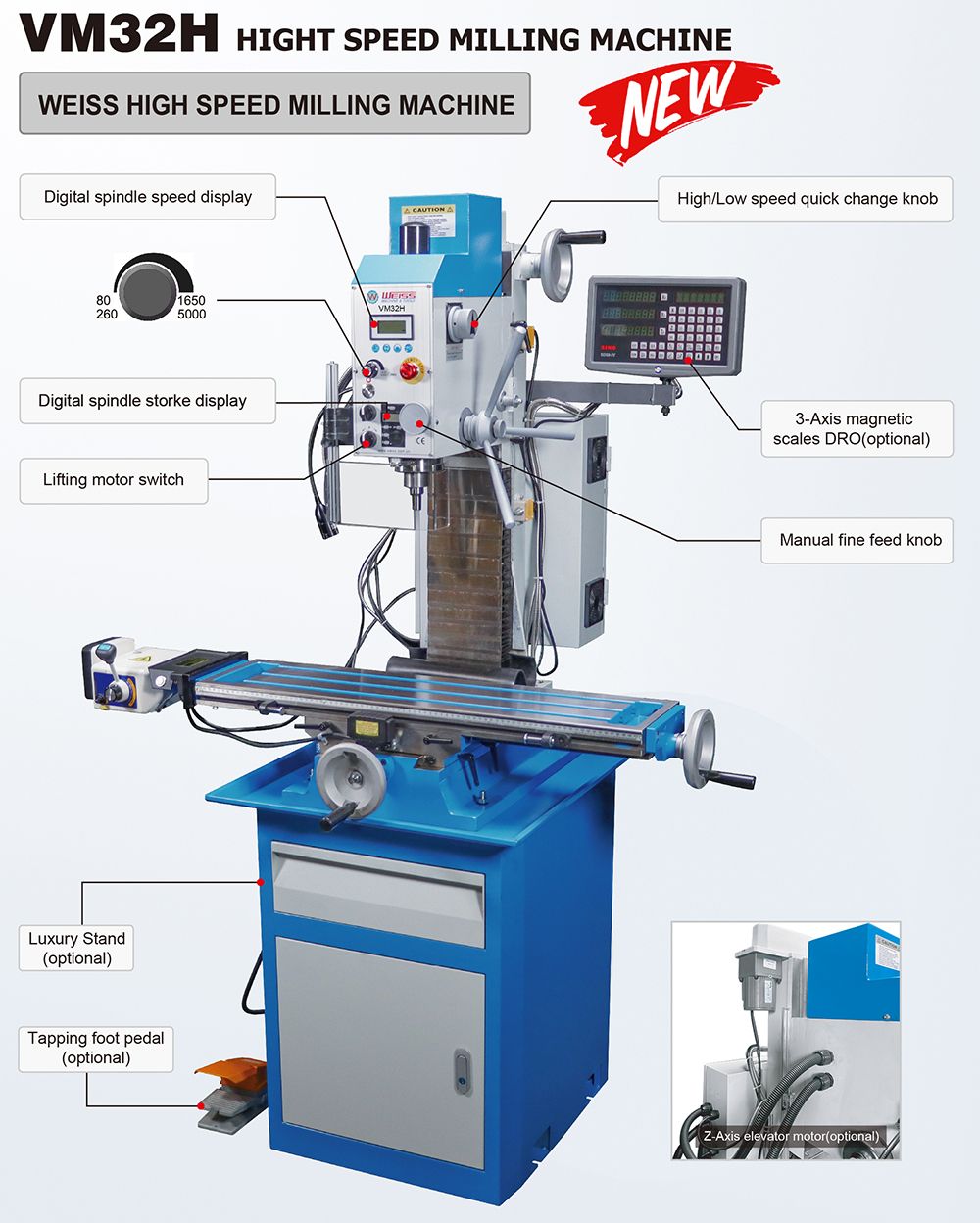

FEATURES:
1.Heavy, stable and solid column, made of high-quality gray cast iron, with ground and scraped dovetail guide, for high stability and precision.
2. Two steps belt drive mill with patent quick change
3. knob, completely change the old complex and hassle belt drive speed change way, much easy and convenient.
4. Stepless speed control
5. 1.5kw powerful brushless motor enable the mill up to 5000rpm speed
6. Massive and large-dimensioned XY stage, precisely surface-finished with T-slots
7. Dovetail guiding for X,Y&Z axis, ajustable by gibs
8. Digital speed and spindle stroke(metric&imperial mode) indicator
9. Mill head tiltableto both sides for angular boring, milling of bevels etc.
10. LED working lamp

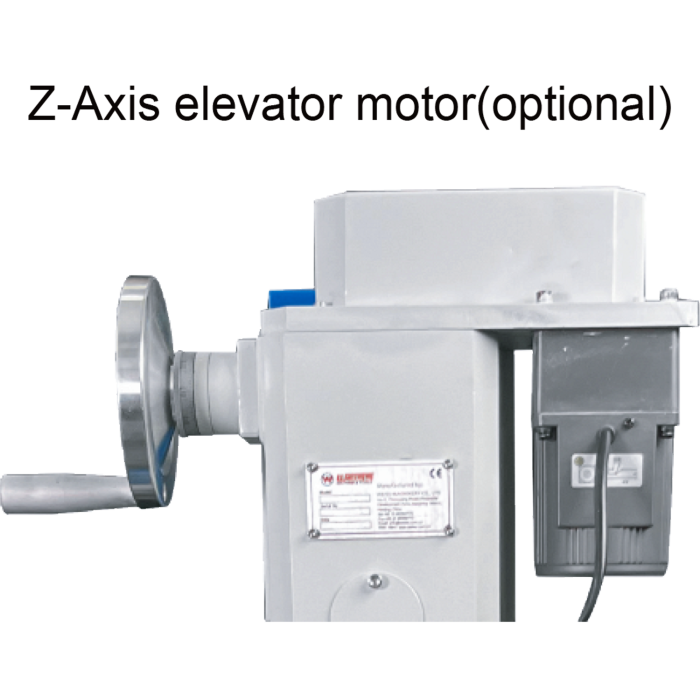

11. Lifting motor ensures covenient height adjustment of milling head(optional)
12. Super heavy-duty stand with multi-function wheel, can be adjust height and fix as machine pad(Optional)
| STANDARD ACCESSORIES: | INCLUDED |
| Drawbar | yes |
| Drill chuck 3-16/B16 | yes |
| Arbor MT3/B16-M12 | yes |
| Digital Depth Ruler | yes |
| Spindle Cover With Micro Switch | yes |
| Toolbox & Tools | yes |
| OPTIONAL ACCESSORIES: | Item NO.: |
| Tapping foot pedal | 30200024 |

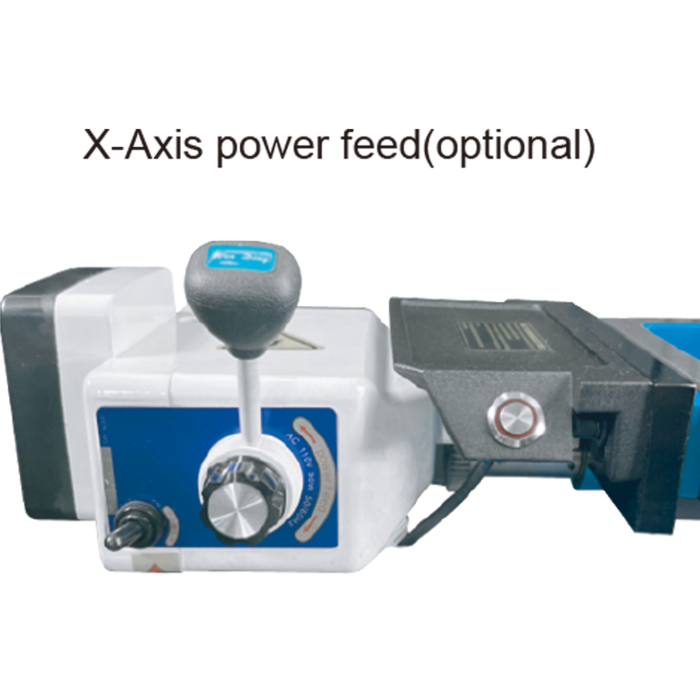

| X-Axis power feed | 30203041 |
| Z-Axis elevator motor | 30203047 |
| Keyless drill chuck 3-16mm | 22020205 |
| HHS 25PCS drill set 1-13mm | 21210252 |
| 7 PCS HSS Tin-coated end mill set, 4-16mm | 21100007 |
| 12 PCS HSS Tin-coated end mill set, 3-12mm | 21100012 |
| 20 PCS HSS Tin-coated end mill set, 3-20mm | 21100020 |
| 5 pcs Center drill set | 21200005 |
| 58pcs clamping kits M 12 x 1.75/13.7mm | 22038024 |
| Mill chuck set ER32 MT3 3-20mm 12pcs | 22030233 |
| Machine Vise BMS125 | 22101025 |
| Machine vise WHV140 | 22101045 |
| 2 way precision tilting vise WOA100 | 22102104 |
| Universal machine vise MVB150 | 22102026 |
| Rotary Table RT150 | 22111515 |
| Semi-universal dividing head BS-0 | 22113005 |
| 3-Axis DRO with magnetic scales D80 | 23073304 |
| Oil tray | 30203010 |
| Stand | 30203030 |
| Luxury stand | 30203035 |
