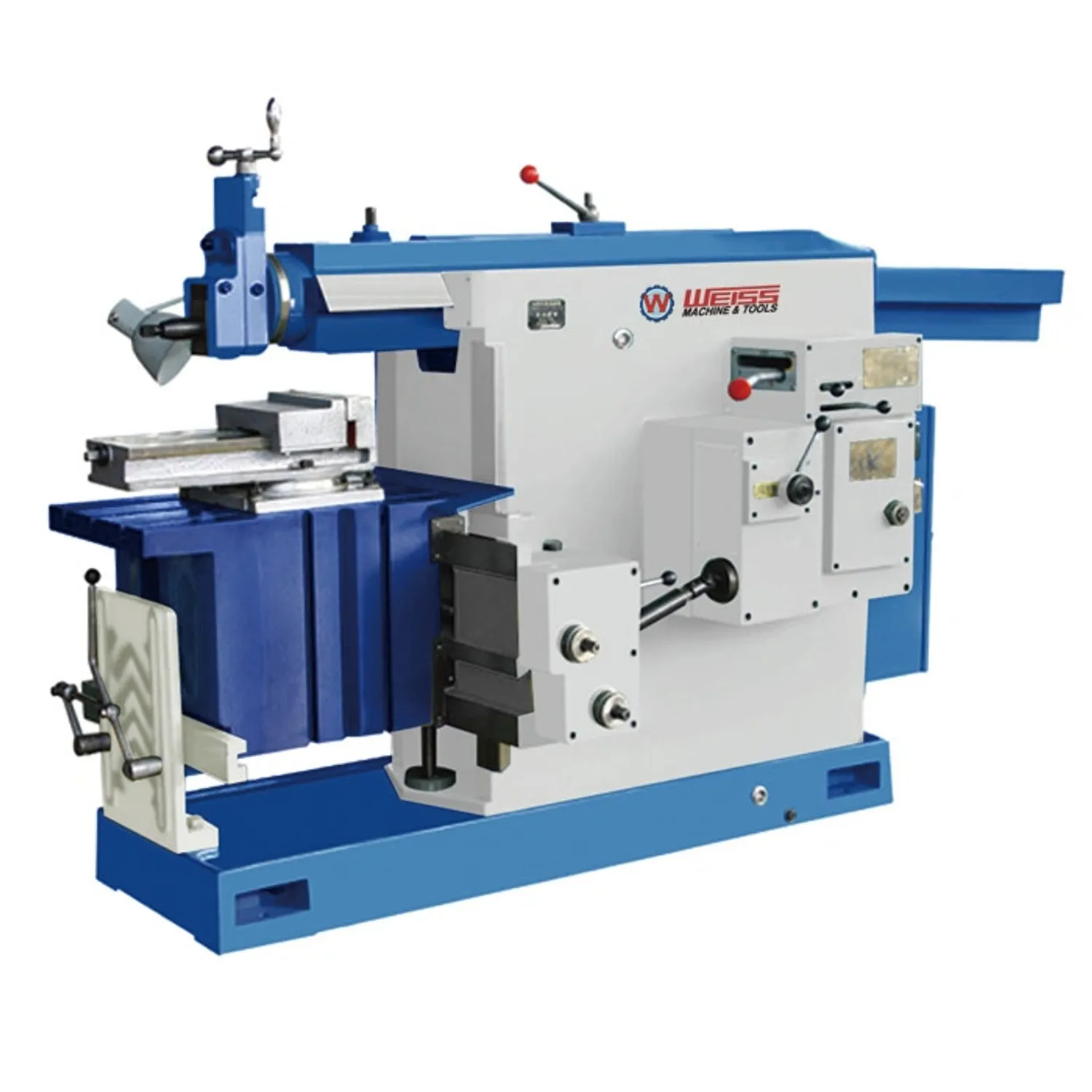

WPM63/66/85 The Planing Machine

 

Price

Get Latest Price

Min. Order: 1 Bag/Bags
Transportation: Others

Contact Now>

Product Detail Description

Product Attributes

Model No.: WPM63/66/85 The Planing Machine

Item No: 10760630/10760660/10760850

Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Features

1、 flexible and reliable starting and stopping,
2、good rigidity of the machine tool,
3、large cutting force, small thermal deformation,
4、stable precision and suitability for strong planing.

Specifications

Model No.	WPM66
Item No.	10760660
Specifications
Maximum planing length	600mm
Rarm underside to table the maximum distance	385mm
Max distance between the ram bottom and table	630mm
Worktable maximum moving distance (vertical)	360mm
Dimensions of table top (LxW)	660x400mm
Max stroke length of the toolhead	120mm
Number of ram reciprocating per minute	14/20/28/40/56/80 times min
Max swivel angle of lhe toolhead	±60°
Max Arbor size (WxH)	20x30mm
Range of table feed(Horizontal)	0.4-5.0
Range of table feed(vertical)	0.08-1.0
Width of the T-shot for center positioning	18mm
power of the main motor	3kw
Carton size	2357x1225x1480mm
N.W/G.W	1800/1920kg

Model No.	WPM85
Item No.	10760850
Specifications
Maximum planing length	850mm
Rarm underside to table the maximum distance	400mm
Max distance between the ram bottom and table	710mm
Worktable maximum moving distance (vertical)	360mm
Dimensions of table top (LxW)	800x450mm
Max stroke length of the toolhead	160mm
Number of ram reciprocating per minute	17/24/35/50/70/100 times min
Max swivel angle of lhe toolhead	±60°
Max Arbor size (WxH)
Range of table feed(Horizontal)	0.25-3mm
Range of table feed(vertical)	0.12-1.5mm
Width of the T-shot for center positioning	22mm
power of the main motor	5.5kw
Carton size	2950x1325x1693mm
N.W/G.W	2940kg/3090kg

Model No.	WPM63
Item No.	10760630
Specifications
Maximum planing length	630mm
Rarm underside to table the maximum distance	385mm
Max distance between the ram bottom and table	630mm
Worktable maximum moving distance (vertical)	360mm
Dimensions of table top (LxW)	630x400mm
Max stroke length of the toolhead	120mm
Number of ram reciprocating per minute	14/20/28/40/56/80 times min
Max swivel angle of lhe toolhead	±60°
Max Arbor size (WxH)	20x30mm
Range of table feed(Horizontal)	0.4-5.0
Range of table feed(vertical)	0.08-1.0
Width of the T-shot for center positioning	18mm
power of the main motor	3kw
Carton size	2000x1300x1550mm
N.W/G.W	1750/1870kg

Features&Details

Both the main cutting motion and the feed motion are gear transmission, with stable rotation, small over-travel, flexible and reliable starting and stopping, good rigidity of the machine tool, large cutting force, small thermal deformation, stable precision and suitability for strong planing.
The tool holder has an automatic tool lifting mechanism, the machine tool handles are centralized, and the operation is convenient.
