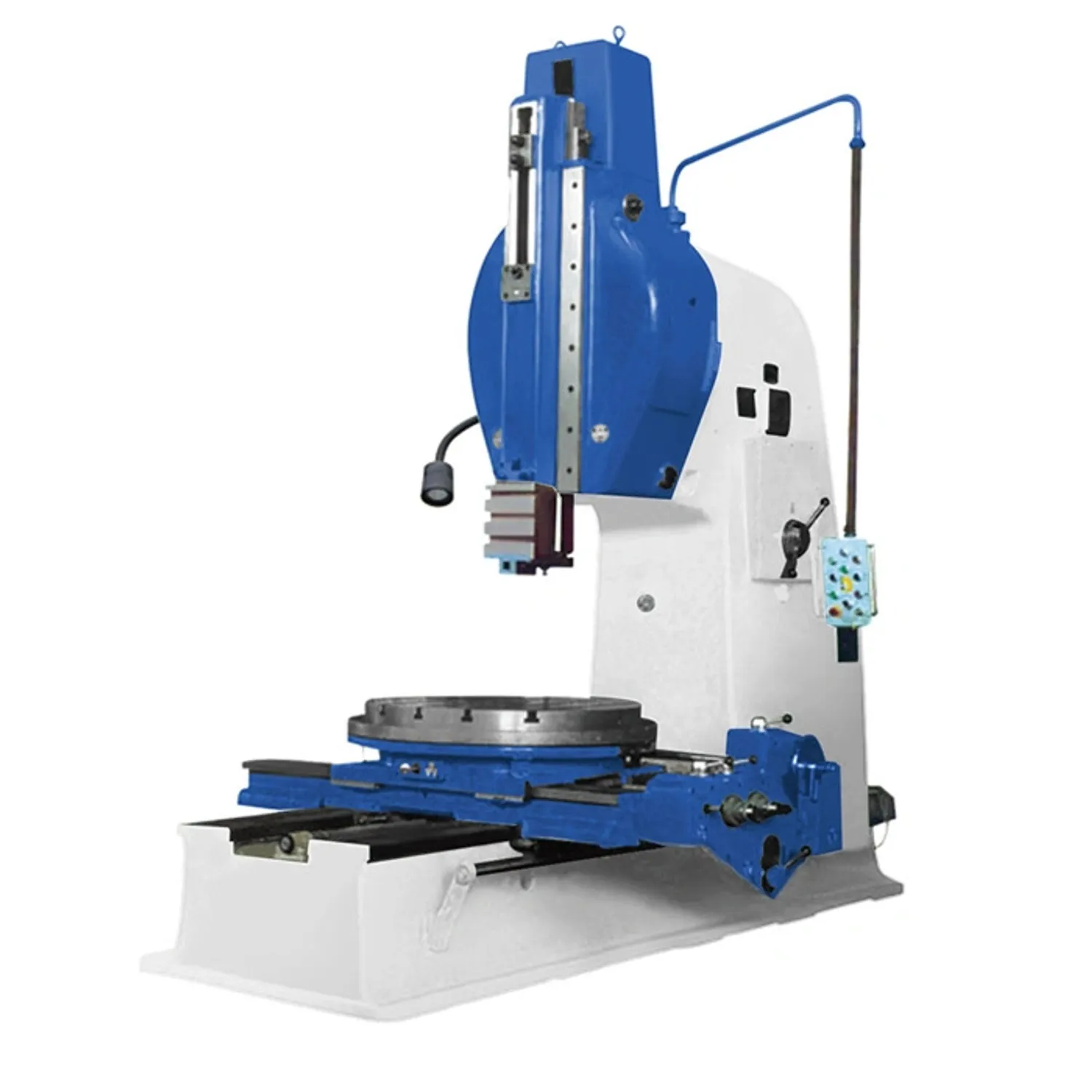

Name: WSM50 The Slotting Machine
Brand: Weiss Machinery
Rating: 4.7 (8 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Features

The Slotting Machine is actually a vertical planer, which belongs to the same category as the shaper in structural principle.

Specifications

Model No.	WSM50
Item No.	10750500
Specifications
Max.slotting length	500mm
Table diameter	1000mm
Cross traverse of work table	660mm
Longitudinal traverse of work table	1000mm
Max weight of workplace	2000kg
Distance between tool holding surface and column front	990mm
Range of ram adjustment	430mm
Distance between worktable and lower side of side	740mm
Inclination of tam head(Left or right directions)	±10°deg
Number of ram strokes(per min)	9/12.5/18/25/36/50.times min
Longitudinal and cross feeds of worktable(mm.per ram stroke)	0.1/0.2/0.3/0.4/0.6/1.2mm
Rotary feeds of worktable(min per ram stroke)	3,6,9,12,18,36dr/per
Max cutting force	16000N
Rapid traverse motor	1.5kw 1440rpm
main motor	7.5kw 1400rpm
coolant pump potor	0.125kw 2800rpm
New weight of machine	10.3t
Overall dimensions(LxWxH)	3480x2085x3307mm

Features&Details

The Slotting Machine is actually a vertical planer, which belongs to the same category as the shaper in structural principle.
The linear reciprocating motion of the insertion knife along with the ram in the vertical direction is the main motion, and the intermittent motion of the workpiece in the longitudinal, transverse and circumferential directions is the feed motion respectively.
The production efficiency of the slotting machine is low, the roughness Ra of the processed surface is 6.3-1.6 microns, and the verticality of the processed surface is 0.025/300mm.
The main parameter of the slotting machine is the maximum slotting length

WSM50 The Slotting Machine
