| Selling Units: | Bag/Bags |
|---|
Transportation: Others

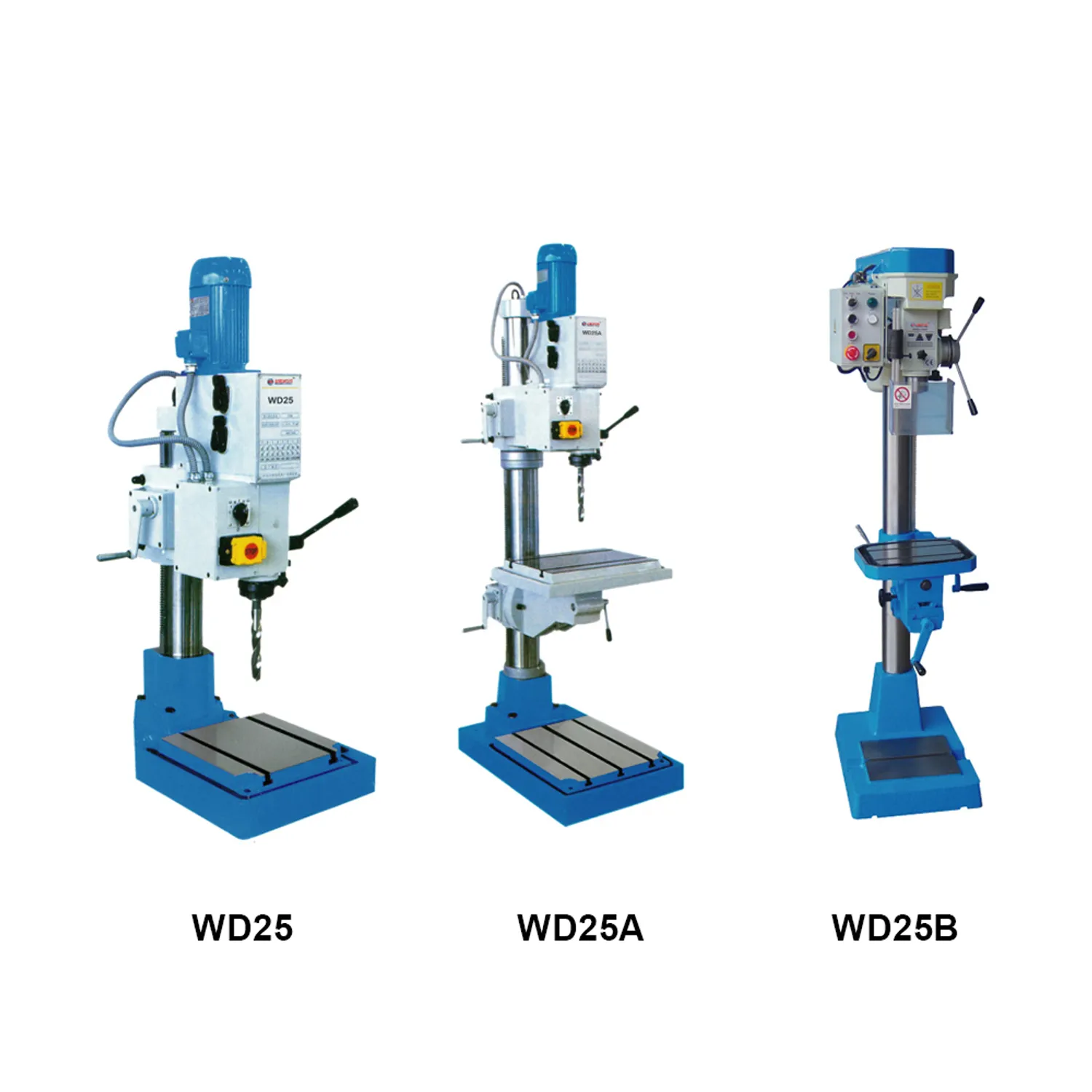

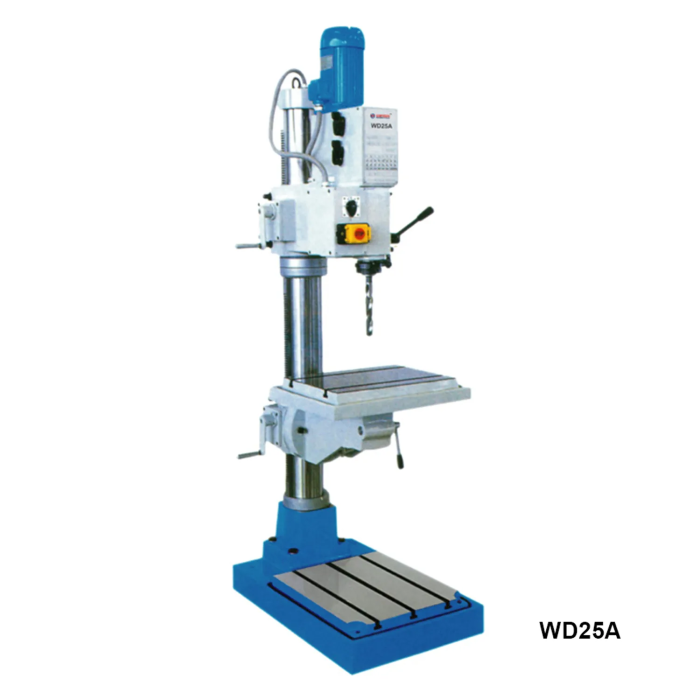

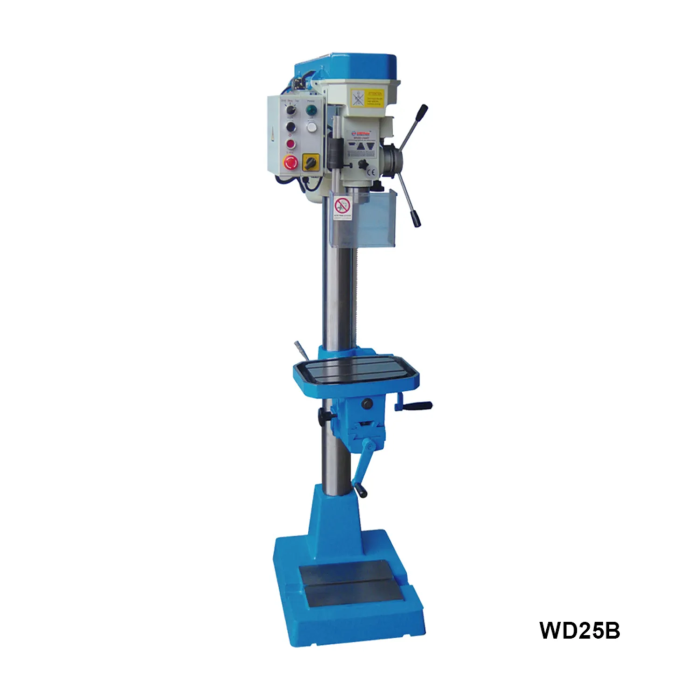

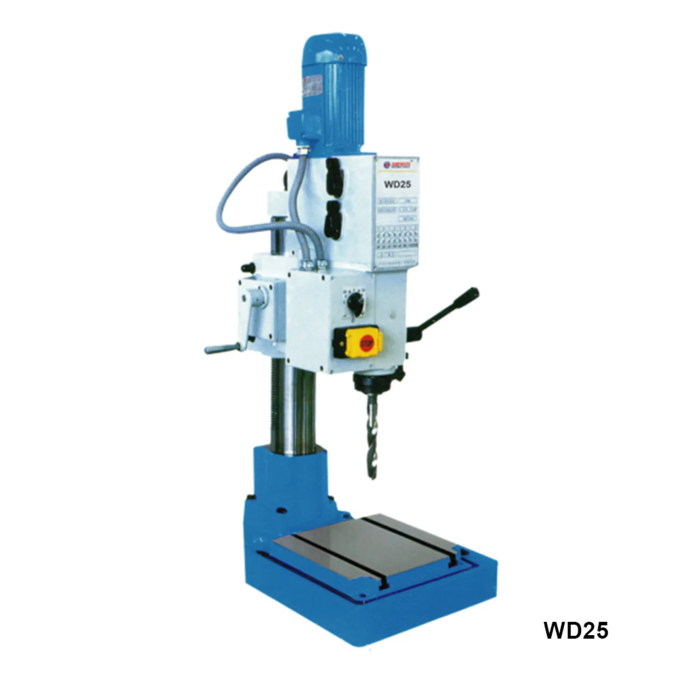

| Model No. | WD25 | WD25A | WD25B |
| Item No. | 10303020 | 10306055 | 10303026 |
| Specifications： | |||
| Max. drilling capacity | Φ25 mm | Φ25 mm | Φ25 mm |
| Max. tapping capacity | M24 | M24 | M20 |
| Spindle taper | MT3 | MT3 | MT3 |
| Spindle stoke | 140 mm | 140 mm | 100 mm |
| Step of spindle speeds | 8 | 8 | 16 |
| Range of spindle speeds | 100-2900 rpm | 100-2900 rpm | 127-2380 rpm |
| Distance from spindle axis to column | 225 mm | 315 mm | 203 mm |
| Distance from spindle nose to table | 445 mm | 660 mm | 145-895 mm |
| Distance from spindle end to base | - | 1200 mm | 1200 mm |
| Table size | - | 315x415 mm | 280x350 mm |
| Table travel | - | 480 mm | 750 mm |
| T-slot | 2x23 mm | 2x16 mm(table) 3x23 mm(base) | 2x12-100 mm |
| Base size | 297x305 mm | 475x400 mm | - |
| Main Motor | 0.55/0.75 kw | 0.55/0.75 kw | 1Kw |
| Coolant motor | 40 w | 40 w | - |
| Overall dimension | 580x470x1000 mm | 788x560x1820 mm | 535x820x1700 mm |
| Net weight | 170 kg | 250 kg | 182 kg |
