| Selling Units: | Bag/Bags |
|---|
Transportation: Others

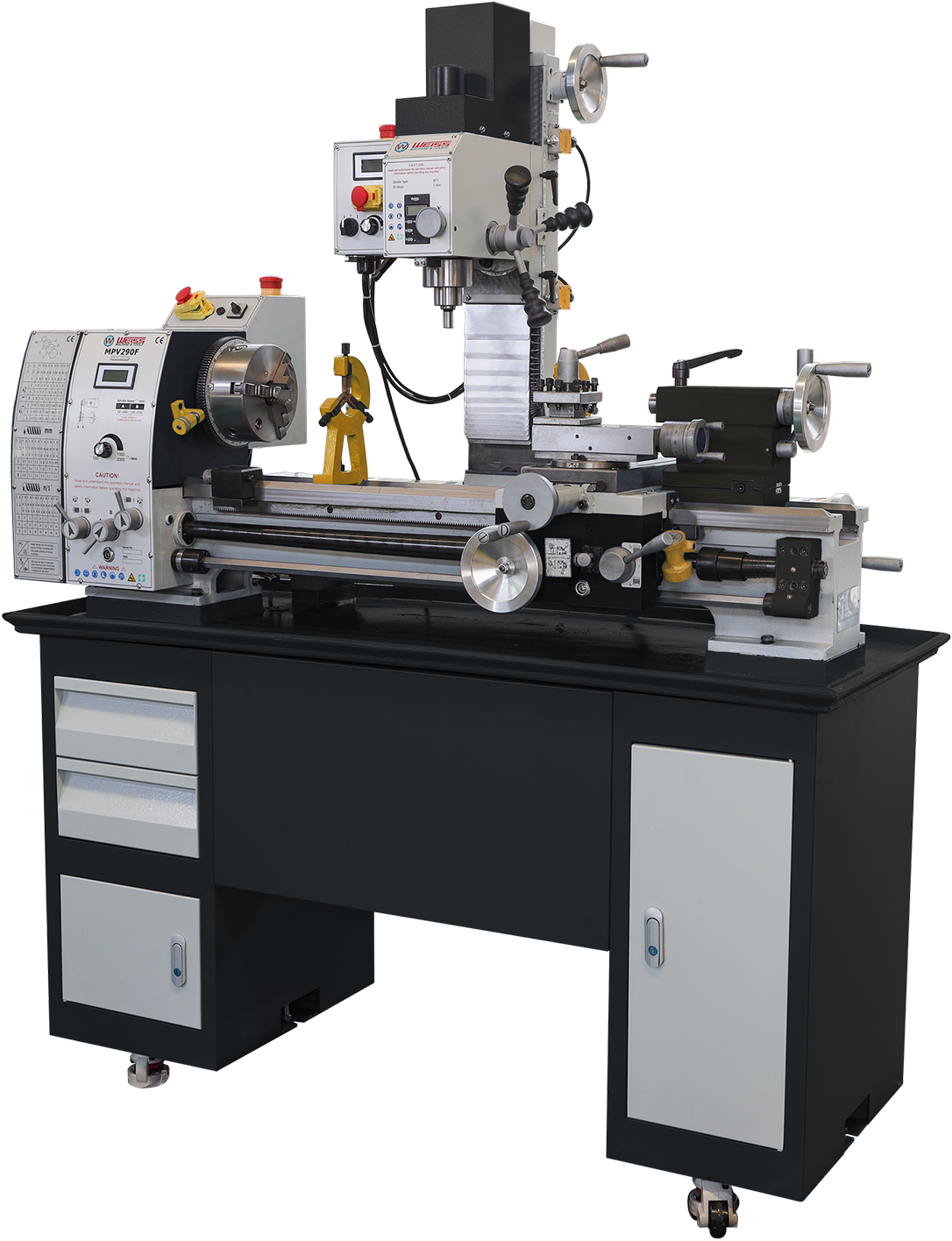

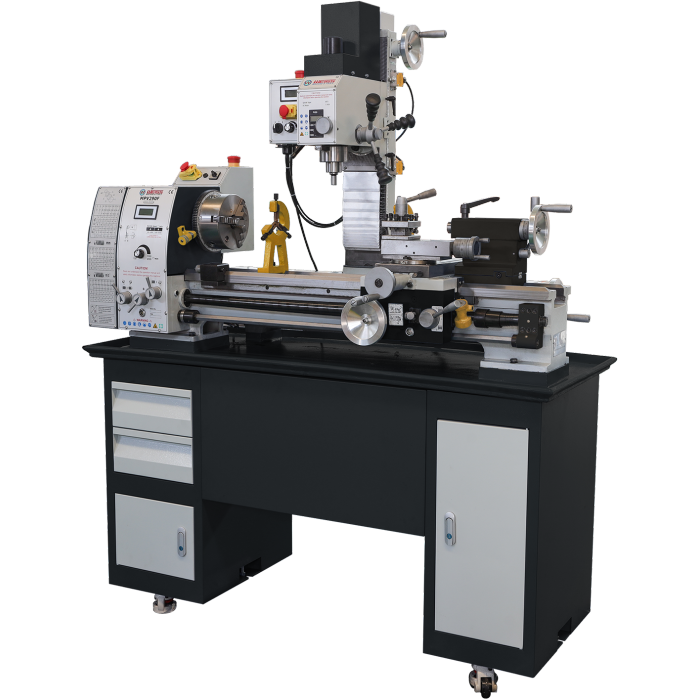

| Model No.: | MPV290F | ||
| Item No.: | 10110718 | ||
| Lathe | Mill & Drill | ||
| Distance between centers | 750 mm | Spindle bore | MT3 |
| Swing over bed | 280 mm | Spindle stroke | 50 mm |
| Swing over cross slide | 170 mm | Spindle speed | 50-2250RPM |
| Width of bed | 180 mm | Mill head travel(X axis) | 500 mm |
| Taper of spindle bore | MT5 | Max.distance spindle to table | 300 mm |
| Spindle bore | 38 mm | Max.distance spindle to column | 185 mm |
| Number of spindle speeds | Variable | Mill Motor | 1.1KW |
| Range of spindle speed | 100-1800RPM | Drive Motor | 40W |
| Range of cross feed | 0.017-0.25 mm | Torque | 2.8N/m |
| Range of longitudinal feed | 0.07-1.0mm | Max.moving speed | 270mm/min |
| Range of inch threads | 8-56 T.P.1 | Max.moving travel | 500mm |
| Range of metric threads | 0.2-3.5 mm | Packing size | 1500x780x1070 mm |
| Top slide travel | 85 mm | Net weight | 280kg |
| Cross slide travel | 170 mm | ||
| Tailstock quil trave! | 80 mm | ||
| Taper of tailstock quill | MT3 | ||
| Motor | 1.5KW | ||

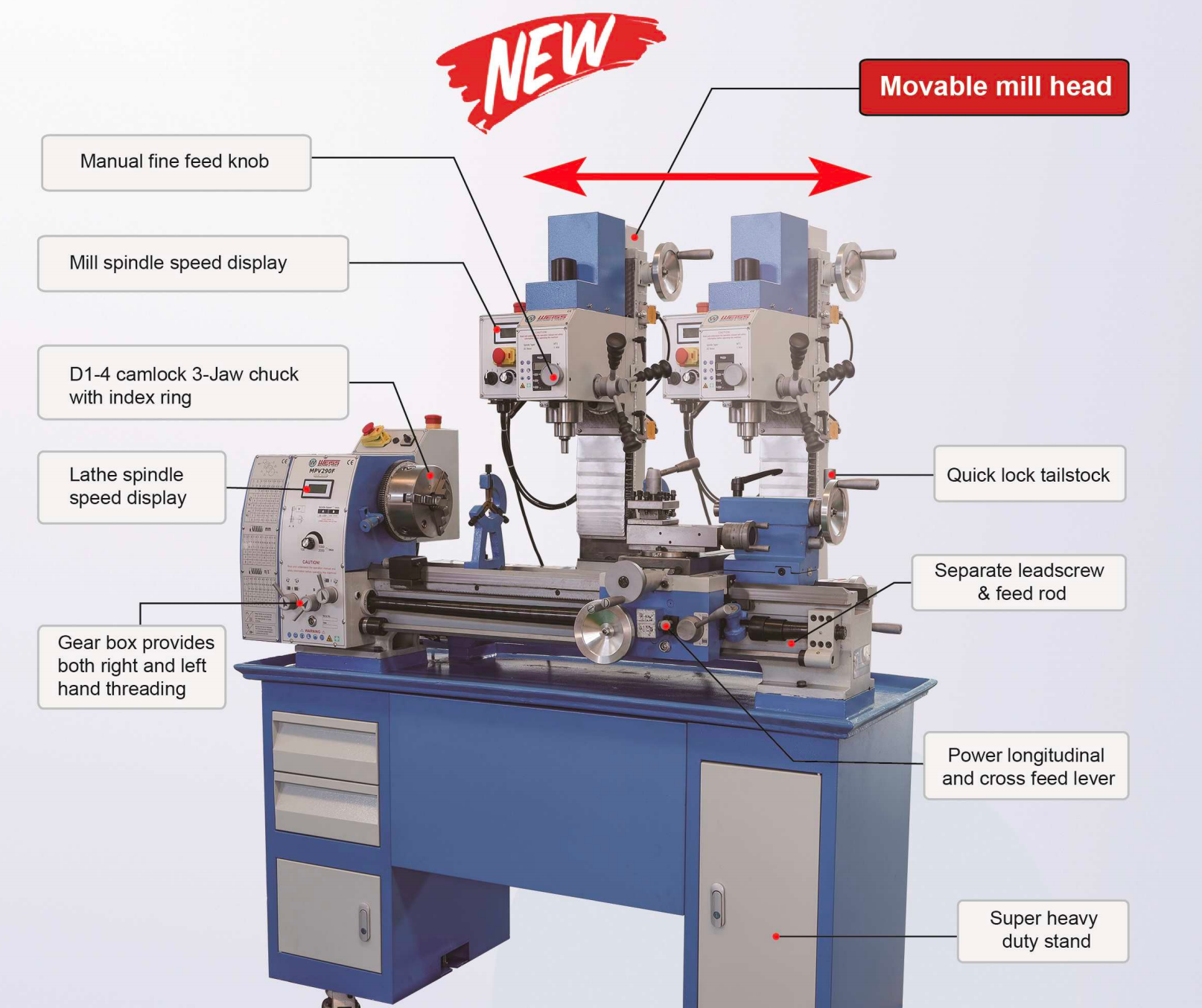

| Features | |
| |

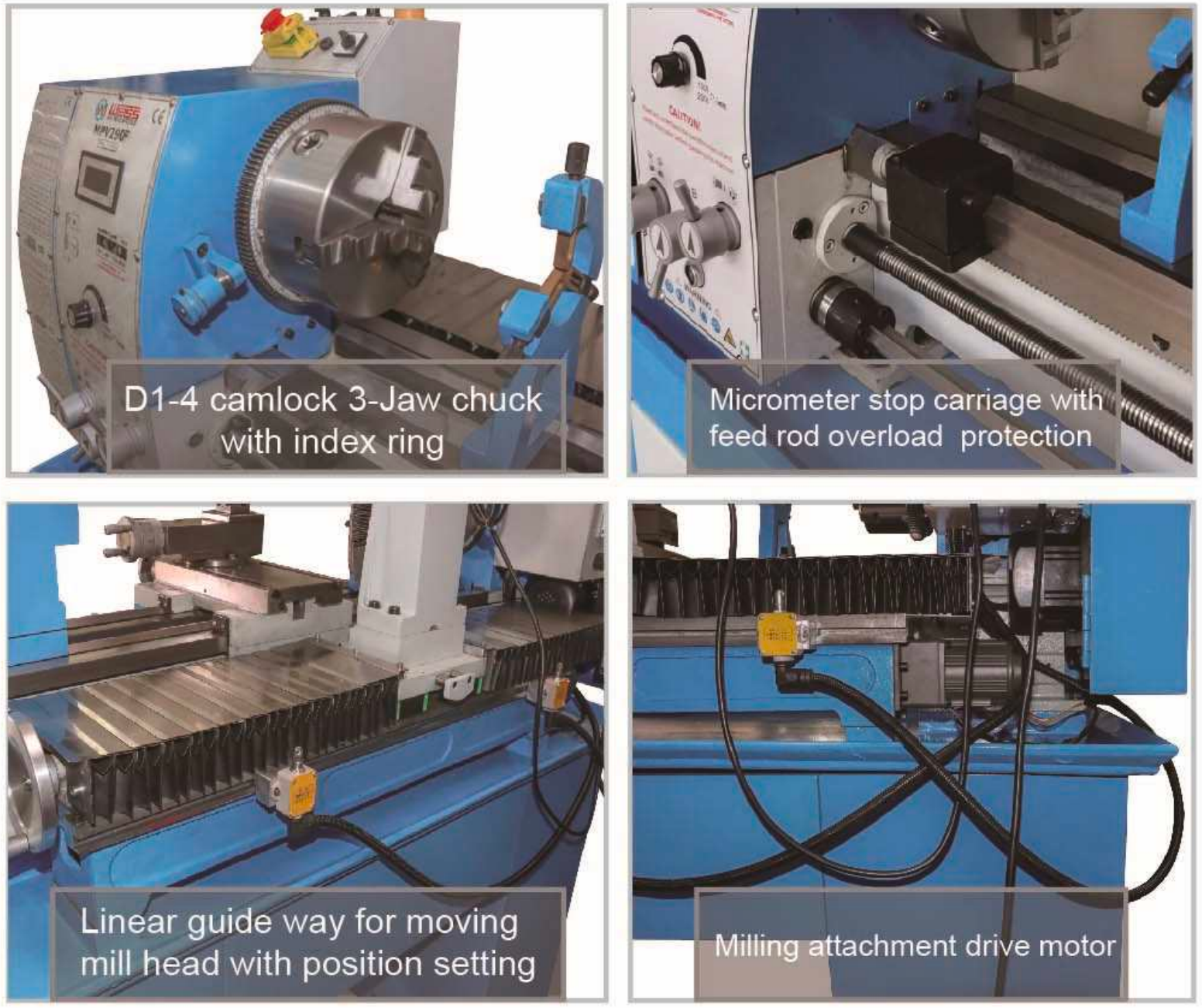

| Details | |
| Standard Accessories |
| D1-4 camlock 3-jaw chuck with index ring 160mm |
| MT3 dead center & MT3/MT5 center sleeve |
| MT3 live center |
| Drill chuck 1-16mm |
| Drill chuck arbor |
| Drawbar |
| Digital display of speed range |
| Digital spindle stroke indication |
| Protect cover for spindle |
| Tool box & Tools |
| Optional Accessories | Code No. |
| Steady rest | 30108001 |
| Follow rest | 30108002 |
| Face plate | 30108003 |
| 4-Jaw chuck 160mm | 22014104 |
| Back plate for 4-jaw chuck 160mm | 30108005 |
| Leadscrew covel | 30108015 |
| Tool post cover | 30108020 |
| Theading dial (Metric) | 30108025 |
| Theading dial (lnch) | 30108026 |
| Mill chuck set ER32 MT3 3-20mm 12pc | 22030233 |
| Horizontal&Vertical totary table HV6-150mm | 22111515 |
| Semi-universal dividing head BS-0 | 22113005 |
| Deluxe clamping kit sets 58pcs 12mm, M10 | 22038022 |
| 2 way precision tilting vise WOA100 | 22102104 |
| Universal Machine Vise MVB100 | 22102024 |
| Machine vise BMS 150 | 22101026 |
| Machine vise WHV140 | 22101045 |
| 20 pcs Hss Tin-coated end mill set, 3-20mm | 21100020 |
| 3-Axis DRO with magnetic sales D80 | 23073346 |
| 3-Axis DRO with optical scales SINO | 23080346 |
| Super heavy duty stand | 30108039 |
