Home> Products> Lathe Machines> Engine Lathes> WL460 ENGINE LATHE MACHINE

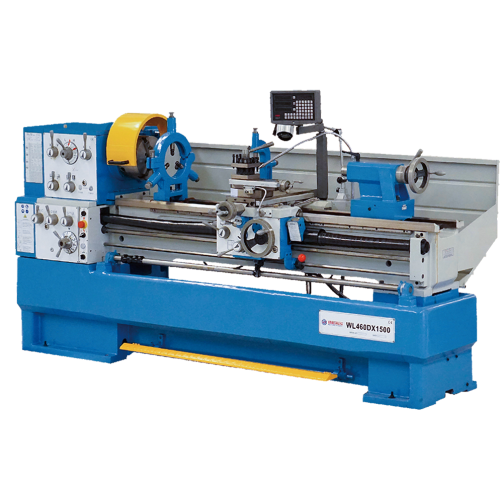

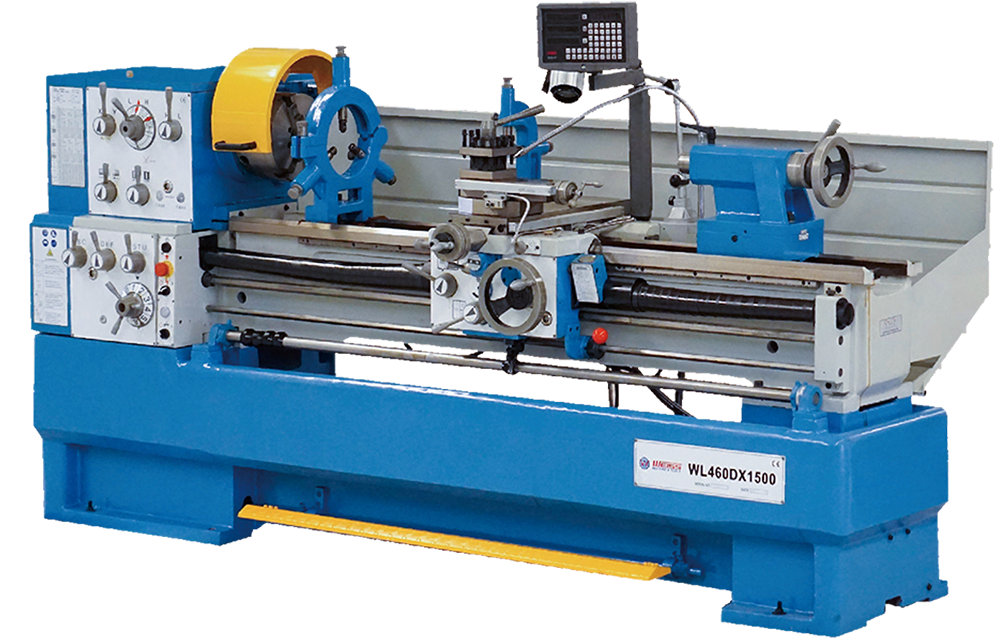

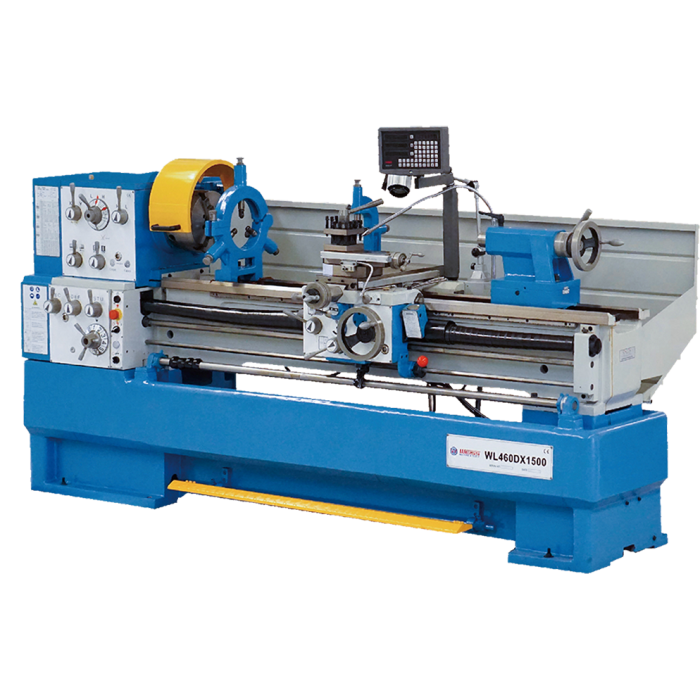

WL460 ENGINE LATHE MACHINE

WL460 ENGINE LATHE MACHINE
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WL460 Engine Lathe Machine

    Distance Between Centers: 1000mm 1500mm

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications

    Model No. WL460x1000/1500
    ITEM NO.
    10106460/10106461
    Specifications： Metric(mm) Imperial (in)
    Distance between centers 1000/1500mm 39-3/8"/59-1/16"
    Swing over bed 460mm 18-7/64"
    Swing over gap 690mm 27-11/64"
    Swing over cross slide 274mm 10-25/32"
    Width of bed 300 mm 11-13/16"
    Taper of spindle bore MT6 MT6
    Spindle nose D1-6 D1-6
    Spindle bore 52 mm 2-3/64"
    Step of spindle speeds 16 16
    Range of spindle speeds 25-2000 rpm 25-2000 rpm
    Range of cross feeds 0.014-0.784mm/r 42kinds 0.0006"~0.0309"/r 42kinds
    Range of longitudinal feeds 0.031-1.7mm/r 42kinds 0.0012"~0.0669"/r 42kinds
    Range of inch threads 2-112 T.P.I 60kinds 2-112 T.P.I 60kinds
    Range of metric threads 0.1-14 mm 41kinds 0.1-14 mm 41kinds
    Range of diametrical pitches 4-112 D.P 50kinds 4-112 D.P 50kinds
    Range of module pitches 0.1-7 M.P 34kinds 0.1-7 M.P 34kinds
    Top slide travel 128mm 5-3/64"
    Cross slide travel 285mm 11-7/32"
    Tailstock quill travel 120mm 4-23/32"
    Tailstock quill diameter 60mm 2-23/64"
    Taper of tailstock quill MT4 MT4
    Motor 5.5KW 5.5KW
    Packing size 2250/2800x1120x1700mm 88-37/64" / 110-15/64"x 44-3/32"x66-59/64"
    Net weight 1670/2020kg 3681lb/4453lb

    Features&Details


    FEATURES:

    1. Super voice frequency heated bedways.
    2. Hardened and grounded gears in the headstock.
    3. With 2 precision D degree taper roller bearings on the spindle.
    4. Integrated deluxe cast iron floor stand.


    Standard Accessories

    STANDARD ACCESSORIES: INCLUDED
    3-Jaw Chuck(200mm) yes
    4-Jaw Chuck(250mm) yes
    Splash Guard

    yes
    Follow Rest yes
    Face Plate (250mm) yes
    Stand&oil tray

    yes
    Steady Rest yes
    Haiogen work lamp yes
    Toolbox & Tools yes

    Optional Accessories

    OPTIONAL ACCESSORIES: Item NO.:
    Quick change tool post -
    Leadscrew cover -
    Chuck guard -
    Digital readout system -
    Tool post cover -
