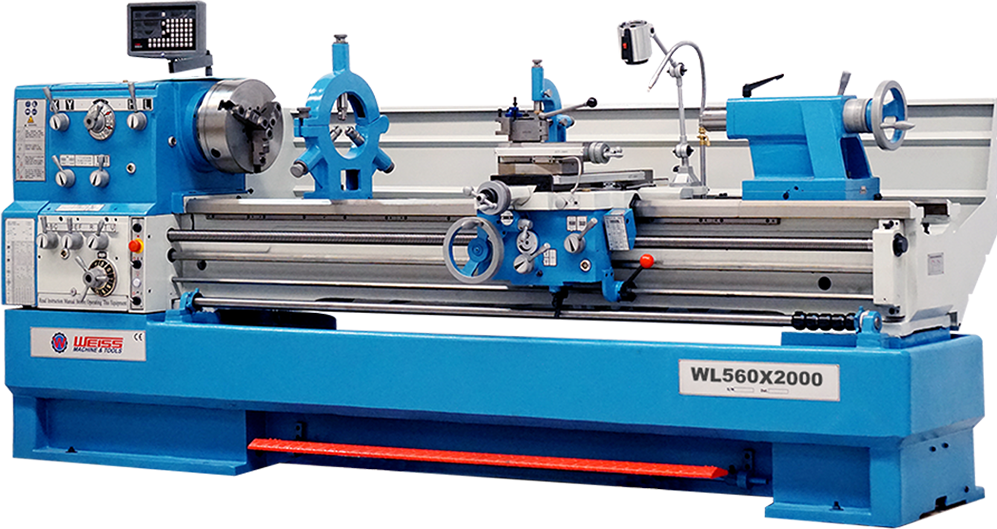

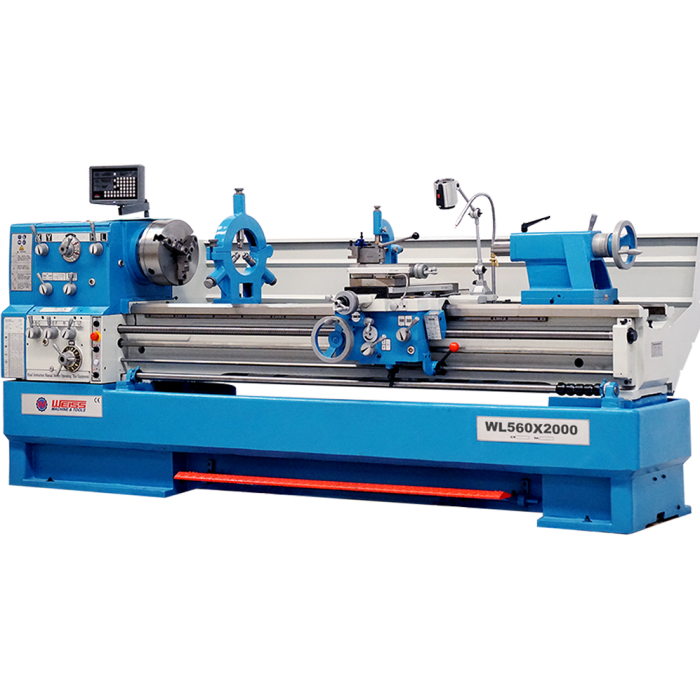

Name: WL560 ENGINE LATHE MACHINE
Brand: Weiss Machinery
Rating: 4.8 (45 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Specifications

Model No.	WL560x1000/1500/2000/3000
ITEM NO.	10106560/10106561/10106562/10106563
Specifications：	Metric(mm)	Imperial (in)
Distance between centers	1000/1500/2000/3000mm	39-3/8"/59-1/16"/78-47/64"/118-7/64"
Swing over bed	560mm	22-3/64"
Swing over gap	780mm	30-45/64"
Swing over cross slide	355mm	13-31/32"
Length of gap	200mm	7-7/8"
Width of bed	350mm	13-25/32"
Spindle nose	D1-8	D1-8
Spindle bore	80 mm	3-5/32"
Taper of spindle bore	MT7	MT7
Step of spindle speeds	12	12
Range of spindle speeds	25-1600rpm	25-1600rpm
Range of cross feeds	0.020-0.573mm/r 35kinds	0.0008"~0.0226"/r 35kinds
Range of longitudinal feeds	0.059-1.646mm/r 35kinds	0.0023"~0.0648"/r 35kinds
Range of metric threads	0.2-14 mm 47kinds	0.2-14 mm 47kinds
Range of inch threads	2-112 T.P.I 60kinds	2-112 T.P.I 60kinds
Range of module pitches	0.1-7 M.P 39kinds	0.1-7 M.P 39kinds
Range of diametrical pitches	4-112 D.P 50kinds	4-112 D.P 50kinds
Max.section of tool	25mmx25mm	63/64"x63/64"
Leadscrew diameter&thread	Φ40mm x12mm or 1-9/16"X2T.P.I	Φ1-37/64"x2T.P.I
Top slide travel	130mm	5-1/8"
Cross slide travel	325mm	12-51/64"
Tailstock quill travel	180mm	7-3/32"
Tailstock quill diameter	75mm	2-61/64"
Taper of tailstock quill	MT5	MT5
Coolant pmp	90W	90W
Motor	7.5KW	7.5KW
Net weight	2100/2300/2550/3000kg	4629lb/5070lb/5621lb/6613lb
Gross weight	2400/2720/2900/3380kg	5291lb/5996lb/6393lb/7451lb
Packing size	10106560: 2460x1130x1820mm	10106560: 96-27/32"x44-31/64"x71-21/32"
	10106561: 2960x1130x1820mm	10106561: 116-17/32"x44-31/64"x71-21/32"
	10106562: 3460x1130x1820mm	10106562: 136-7/32"x44-31/64"x71-21/32"
	10106563: 4460x1130x1820mm	10106563: 175-19/32"x44-31/64"x71-21/32"
