| Selling Units: | Bag/Bags |
|---|
Transportation: Others

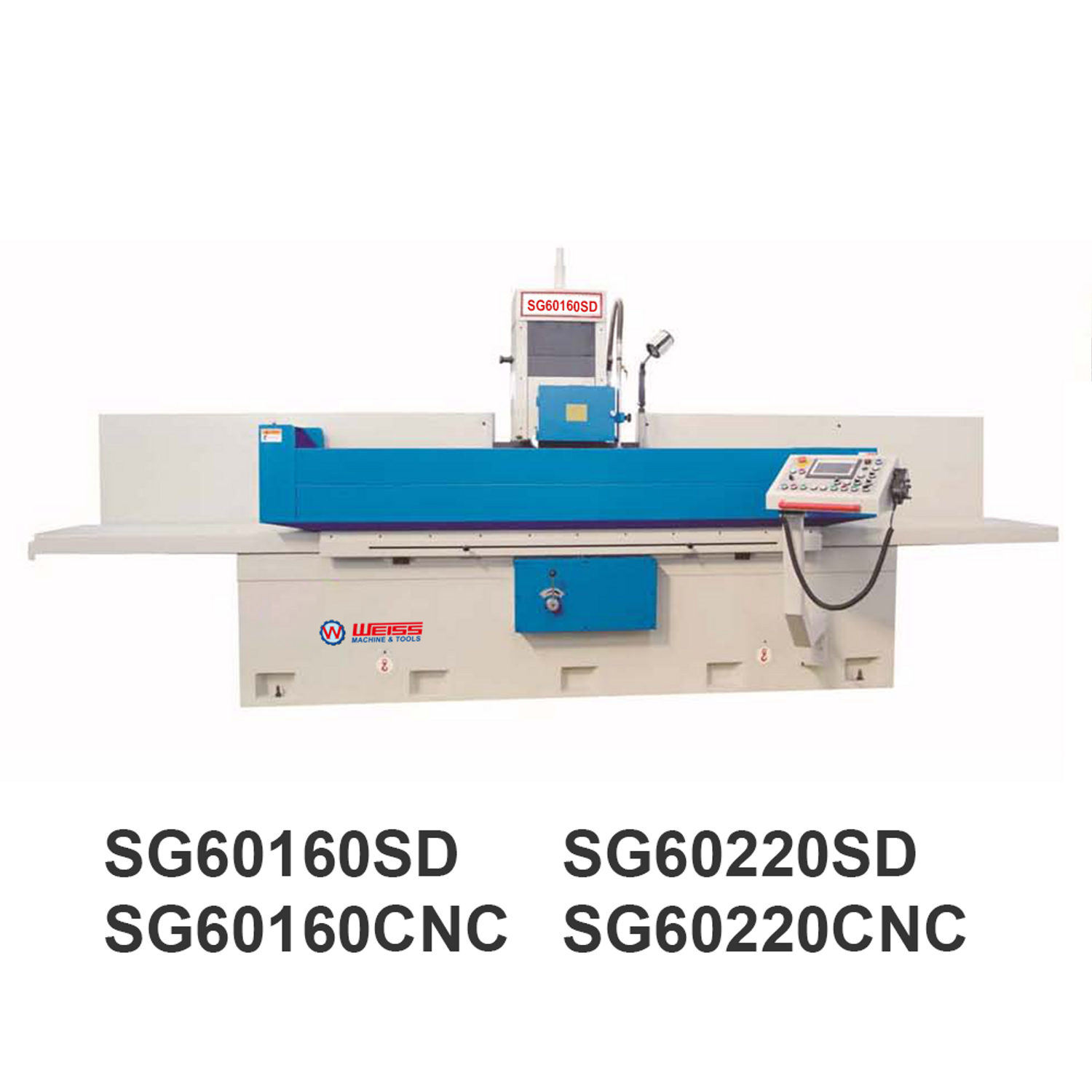

| Model No. | Unit | SG60160SD/SG60160CNC | SG60220SD/SG60220CNC | |
| Item No. | 10401360/10411360 | 10401362/10411362 | ||
| Specifications： | ||||
| Table size | mm | 610x1600 | 610x2200 | |
| Max. grinding (WxL) | mm | 610x1600 | 610x2200 | |
| Max. distance from table to spindle center | mm | 820 (925) | 820 (925) | |
| Magnetic chuck size (optional equipment) | mm | 600x800x2 | 500x1000x2 | |
| Speed of table longitudinal movement | m/min | 5~25 | 5~25 | |
| Table tansverse movement | Auto feed | mm/t | 1~30 | 1~30 |
| Rapid speed | m/min | 0.05~2 | 0.05~2 | |
| Feed of handwheel | mm/div | 0.005 | 0.005 | |
| Head vetical movement | Auto feed | mm/t | 0.005~ 0.05 | 0.005~ 0.05 |
| Rapid speed | m/min | 0.05~ 2 | 0.05~ 2 | |
| Feed of handwheel | mm/div | 0.005 | 0.005 | |
| Grindinc wheel | Speed | rpm | 960 (1450) | 960 (1450) |
| Size (OD x W x ID) | mm | 500x75x305 (450x75x203) | 500x75x305 (450x75x203) | |
| Spindle Motor | Kw | 18.5 | ||
| Max. loading of table (include chuck) | Kg | 1230 | 1690 | |
| Total rated power | Kw | 28.5 | 28.5 | |
| Height of machine | mm | 2700 | 2700 | |
| Floor space | mm | 4700x3000 | 6000x3000 | |
| Gross weight | Kg | 8500 kg | 9500 kg | |
