| Selling Units: | Bag/Bags |
|---|
Transportation: Others

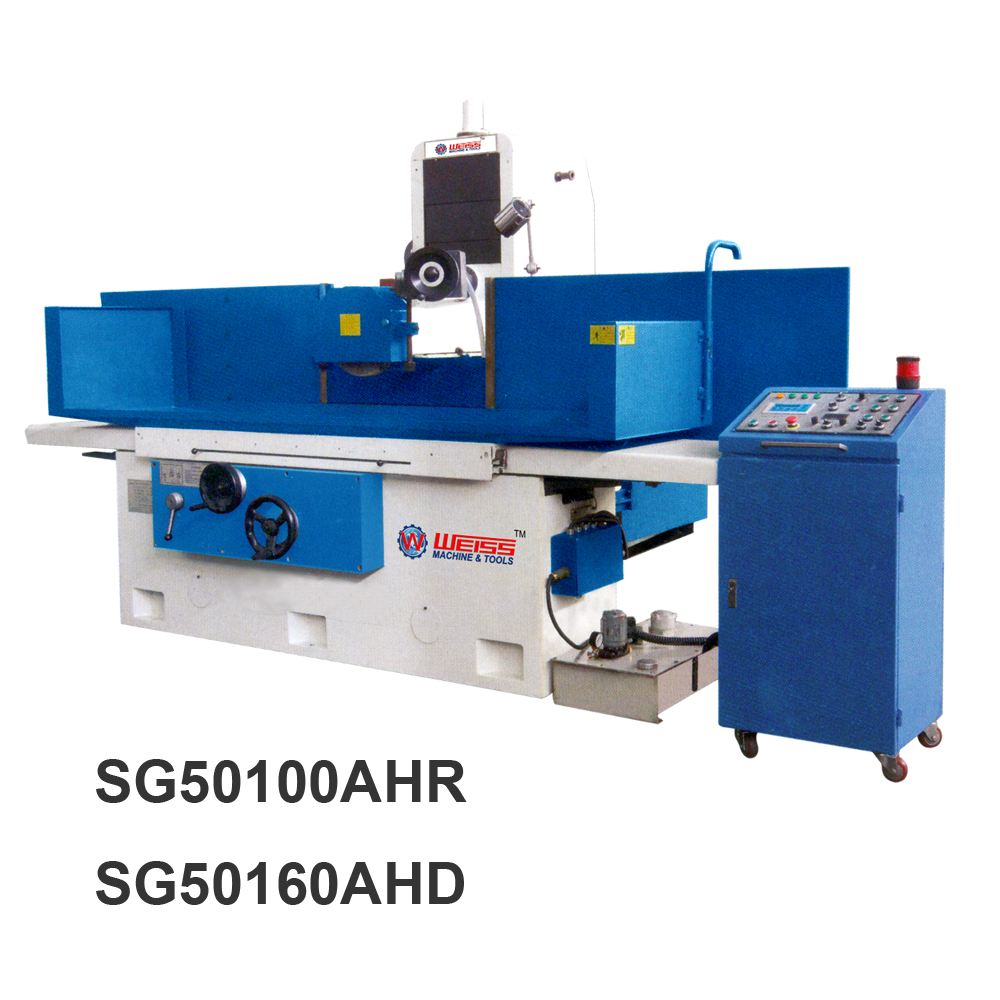

| Model No. | Unit | SG50100AHR/SG50100AHD | SG50160AHR/SG50160AHD | |
| Item No. | 10401150/10401151 | 10401152/10401153 | ||
| Specifications： | ||||
| Table size | mm | 500x1000 | 500x1600 | |
| Max. grinding (WxL) | mm | 500x1000 | 500x1600 | |
| Max. distance from table to spindle center | mm | 600 | 600 | |
| Magnetic chuck size (optional equipment) | mm | 500x1000x1 | 500x800x2 | |
| Speed of table longitudinal movement | m/min | 5~25 | 5~25 | |
| Table tansverse movement | Auto feed | mm/t | 0.5~20 | 0.5~20 |
| Rapid speed | m/min | 1.25 | 1.25 | |
| Feed of handwheel | mm/div | 0.02 mm/div. | 0.02 mm/div. | |
| Head vetical movement | Auto feed | mm/t | 0.005/0.01/0.015/0.02/0.03/0.04mm (only for AHD) | 0.005/0.01/0.015/0.02/0.03/0.04mm (only for AHD) |
| Rapid speed | m/min | 230 | 230 | |
| Feed of handwheel | mm/div | 0.002 mm/div. | 0.002 mm/div. | |
| Grindinc wheel | Speed | rpm | 1450(50Hz) /1740(60Hz) | 1450(50Hz) /1740(60Hz) |
| Size (OD x W x ID) | mm | 355x(20~50)x127 | 355x(20~50)x127 | |
| Spindle Motor | Kw | 7.5 | 7.5 | |
| Max. loading of table (include chuck) | Kg | 700 | 880 | |
| Total rated power | Kw | 12 | 12 | |
| Height of machine | mm | 2390 (Include the packing base) | 2390 (Include the packing base) | |
| Floor space | mm | 4700x2550 | 7120x2550 | |
| Gross weight | Kg | 5500 | 6000 | |
