| Selling Units: | Bag/Bags |
|---|
Transportation: Others

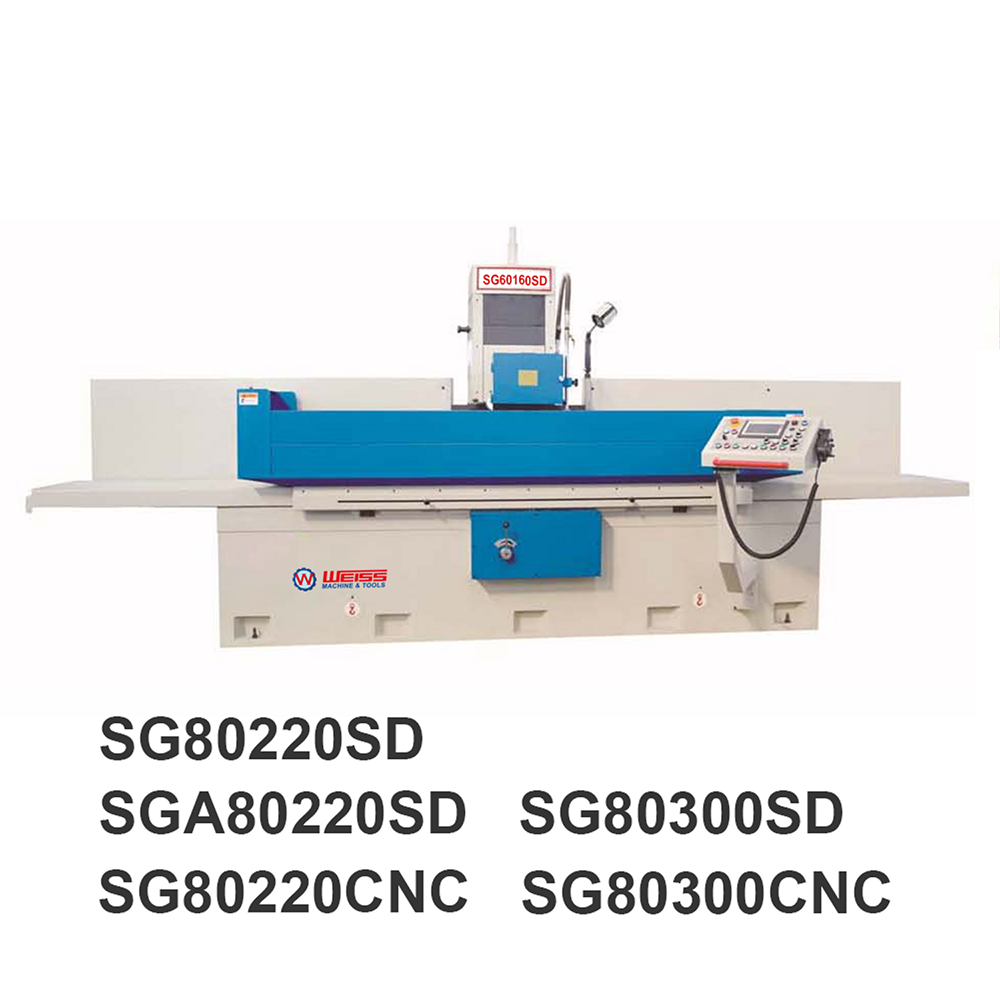

| Model No. | Unit | SG80220SD/SGA80220SD/SG80220CNC | SG80300SD/SG80300CNC | |
| Item No. | 10401381/10401382/10411382 | 10401383/10411383 | ||
| Specifications： | ||||
| Table size | mm | 810x2200 | 810x3000 | |
| Max. grinding (WxL) | mm | 810x2200 | 810x3000 | |
| Max. distance from table to spindle center | mm | 820 (925) | 820 (925) | |
| Magnetic chuck size (optional equipment) | mm | 800x1000x3 | 500x1000x3 | |
| Speed of table longitudinal movement | m/min | 5~25 | 5~25 | |
| Table tansverse movement | Auto feed | mm/t | 1~30 | 1~30 |
| Rapid speed | m/min | 0.05~2 | 0.05~2 | |
| Feed of handwheel | mm/div | 0.005 | 0.005 | |
| Head vetical movement | Auto feed | mm/t | 0.005~ 0.05 | 0.005~ 0.05 |
| Rapid speed | m/min | 0.05~ 2 | 0.05~ 2 | |
| Feed of handwheel | mm/div | 0.005 | 0.005 | |
| Grindinc wheel | Speed | rpm | 960 (1450) | 960 (1450) |
| Size (OD x W x ID) | mm | 500x75x305/450x75x203 | 500x75x305 (450x75x203) | |
| Spindle Motor | Kw | 18.5 | 18.5 | |
| Max. loading of table (include chuck) | Kg | 2240/3000 | 3060 kg | |
| Total rated power | Kw | 28.5/29.6 | 31 kw | |
| Height of machine | mm | 2700 | 2700 | |
| Floor space | mm | 6000x3500 | 8200x3600 | |
| Gross weight | Kg | 11500 (13000) kg | 14000 kg | |
