| Selling Units: | Bag/Bags |
|---|
Transportation: Others

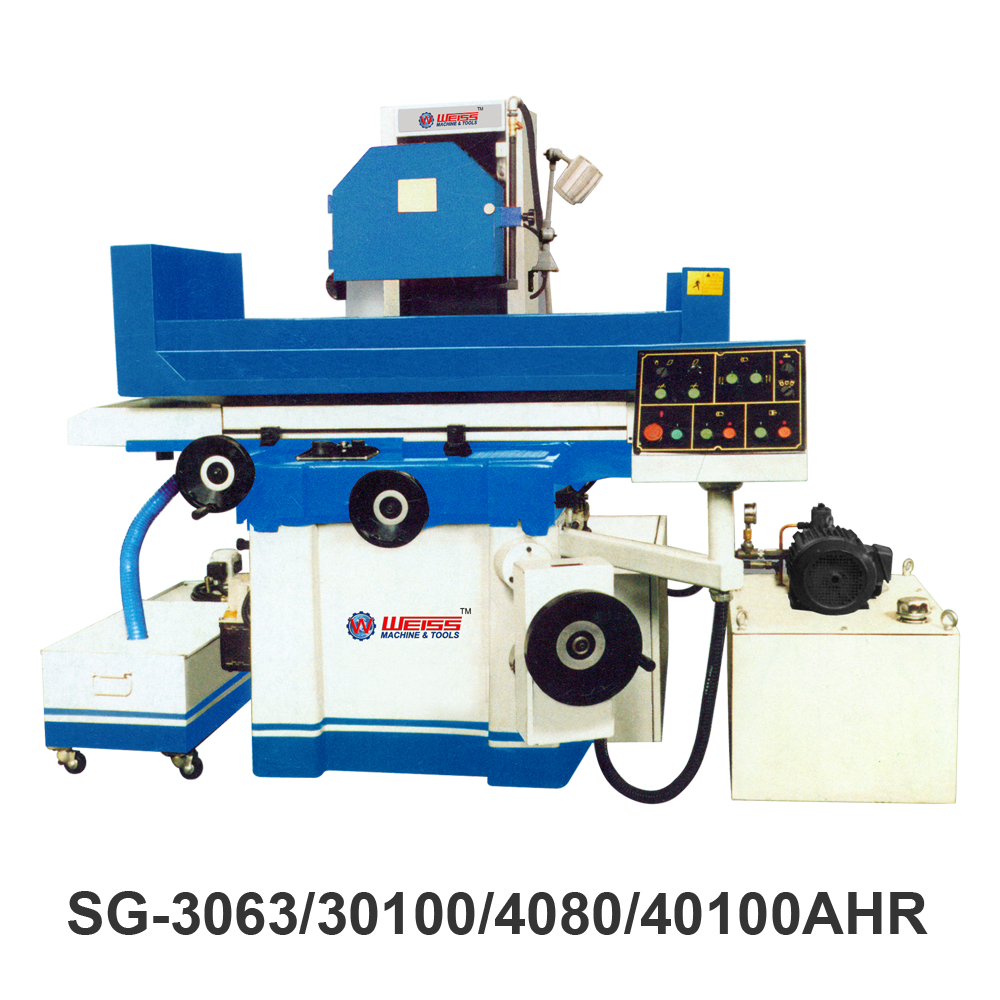

| Model No. | Unit | SG-3063AH/SG-3063AHR/SG-3063AHD | |
| Item No. | 10401130/10401131/10401132 | ||
| Specifications： | |||
| Table size | mm | 305x635 | |
| Max. longitudinal travel | mm | 765 | |
| Max. cross travel | mm | 340 | |
| Max. dis. from spindle to table | mm | 580 | |
| Electro magnetic chuck size | mm | 300x600 | |
| Table longitudinal feed speed | m/min | 7~23 m/min. | |
| Table tansverse movement | Auto feed | mm/min | 0.1~8 mm/min. |
| Rapid speed | m/min | 990 m/min. | |
| Feed of handwheel | mm/div | 0.02 mm/div. | |
| Head vetical movement | Auto feed | mm | 0.005/0.01/0.02/0.03/0.04/0.05 mm (only forAHD) |
| Rapid speed | mm/min | 460 mm/min. (only forAHD) | |
| Feed of handwheel | mm/div | 0.005 mm/div. | |
| Grindinc wheel | Speed | mm | 1450 rpm |
| Size (OD x W x ID) | mm | 350x40x127 mm | |
| Spindle Motor | Kw | 5.5 | |
| Hydranlic motor | Kw | 2.2 | |
| Cooling pump motor | Kw | 0.125 | |
| Elevating motor | Kw | (AH mode) 0.25 (AHR mode) 0.5 (AHD mode,servo motor) | |
| Cross feed motor | Kw | 0.04 | |
| Max. loading of table (include chuck) | Kg | 270 | |
| Total rated power | Kw | 9 | |
| Height of machine | mm | 1890 | |
| Floor space | mm | 2900x2200 | |
| Gross weight | Kg | 2900 | |
| Package dimensions | mm | 2350x2220x2150 | |
