| Selling Units: | Bag/Bags |
|---|
Transportation: Others

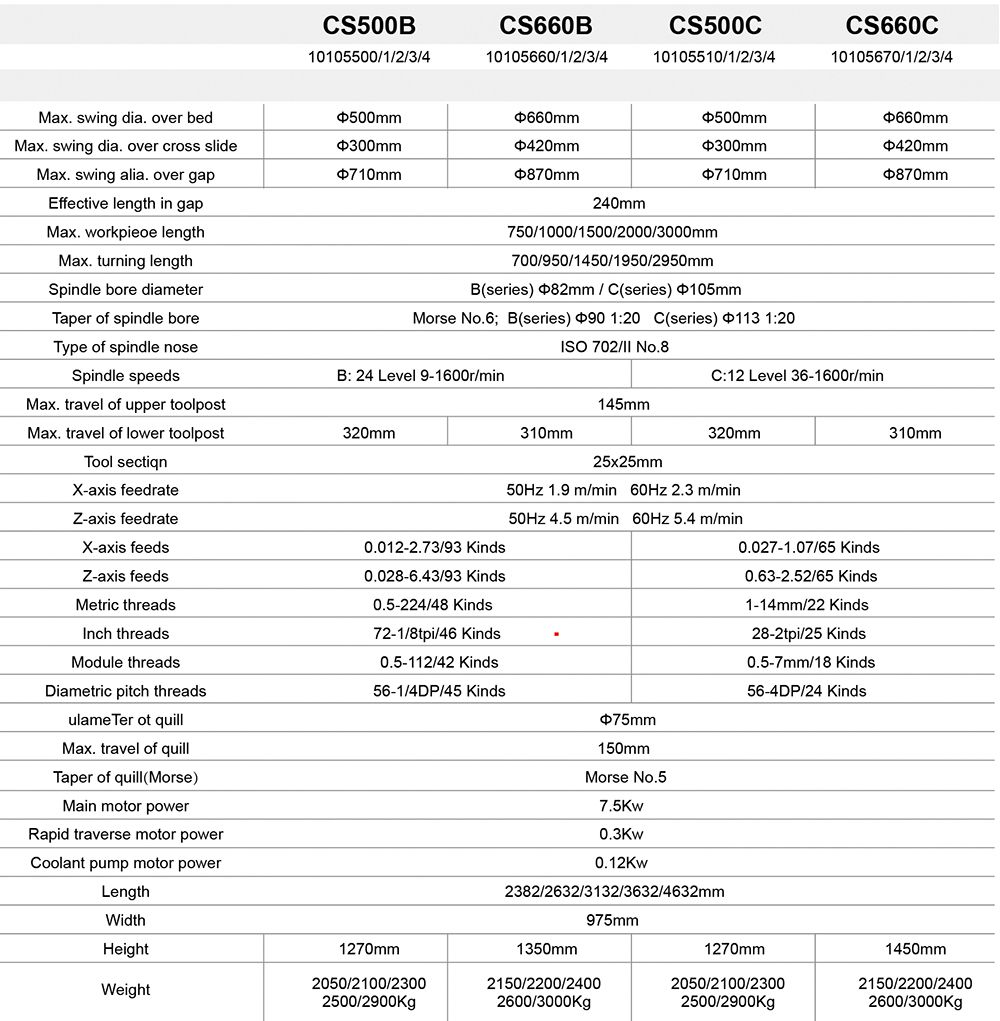

| Model No. | CS660Bx750/1000/1500/2000/3000 | |
| ITEM NO. | 10105660/10105661/10105662/10105663/10105664 | |
| Specifications： | Metric(mm) | Imperial (in) |
| Max. swing dia. over bed | Φ660mm | Φ25-63/64" |
| Max. swing dia. over cross slide | Φ420mm | Φ16-17/32" |
| Max. swing alia. over gap | Φ870mm | Φ34-1/4" |
| Effective length in gap | 240mm | 9-29/64" |
| Max. workpieoe length | 750/1000/1500/2000/3000mm | 29-17/32"/39-3/8"/59-1/16"/78-47/64"/118-7/64" |
| Max. turning length | 700/950/1450/1950/2950mm | 29-17/32"/37-13/32"/ |
| Spindle bore diameter | B(series) Φ82mm / C(series) Φ105mm | B(series) Φ3-15/64" / C(series) Φ4-9/64" |
| Taper of spindle bore | Morse No.6; B(series) Φ90 1:20 C(series) Φ113 1:20 | Morse No.6; B(series) Φ90 1:20 C(series) Φ113 1:20 |
| Type of spindle nose | ISO 702/II No.8 | ISO 702/II No.8 |
| Spindle speeds | B: 24 Level 9-1600r/min | B: 24 Level 9-1600r/min |
| Max. travel of upper toolpost | 145mm | 5-45/64" |
| Max. travel of lower toolpost | 310mm | 12-13/64" |
| Tool sectiqn | 25x25mm | 63/64" x 63/64" |
| X-axis feedrate | 50Hz 1.9 m/min 60Hz 2.3 m/min | 50Hz 74-51/64"/min 60Hz 90-35/64"/min |
| Z-axis feedrate | 50Hz 4.5 m/min 60Hz 5.4 m/min | 50Hz 177-11/64"/min 60Hz 212-19/32"/min |
| X-axis feeds | 0.012-2.73/93 Kinds | 0.012-2.73/93 Kinds |
| Z-axis feeds | 0.028-6.43/93 Kinds | 0.028-6.43/93 Kinds |
| Metric threads | 0.5-224/48 Kinds | 0.5-224/48 Kinds |
| Inch threads | 72-1/8tpi/46 Kinds | 72-1/8tpi/46 Kinds |
| Module threads | 0.5-112/42 Kinds | 0.5-112/42 Kinds |
| Diametric pitch threads | 56-1/4DP/45 Kinds | 56-1/4DP/45 Kinds |
| Tailstock sleeve diameter | Φ75mm | Φ2-61/64" |
| Max. travel of quill | 150mm | 5-29/32" |
| Tailstock sleeve diameter | Morse No.5 | Morse No.5 |
| Main motor power | 7.5Kw | 7.5Kw |
| Rapid traverse motor power | 0.3Kw | 0.3Kw |
| Coolant pump motor power | 0.12Kw | 0.12Kw |
| Length | 2382/2632/3132/3632/4632mm | 93-25/32"/103-5/8"/123-5/16"/142-63/64"/182-23/64" |
| Width | 975mm | 38-25/64" |
| Height | 1350mm | 53-5/32" |
| Weight | 2150/2200/2400/ 2600/3000Kg | 4739lb/4850lb/5291lb/5732lb/6613lb |
