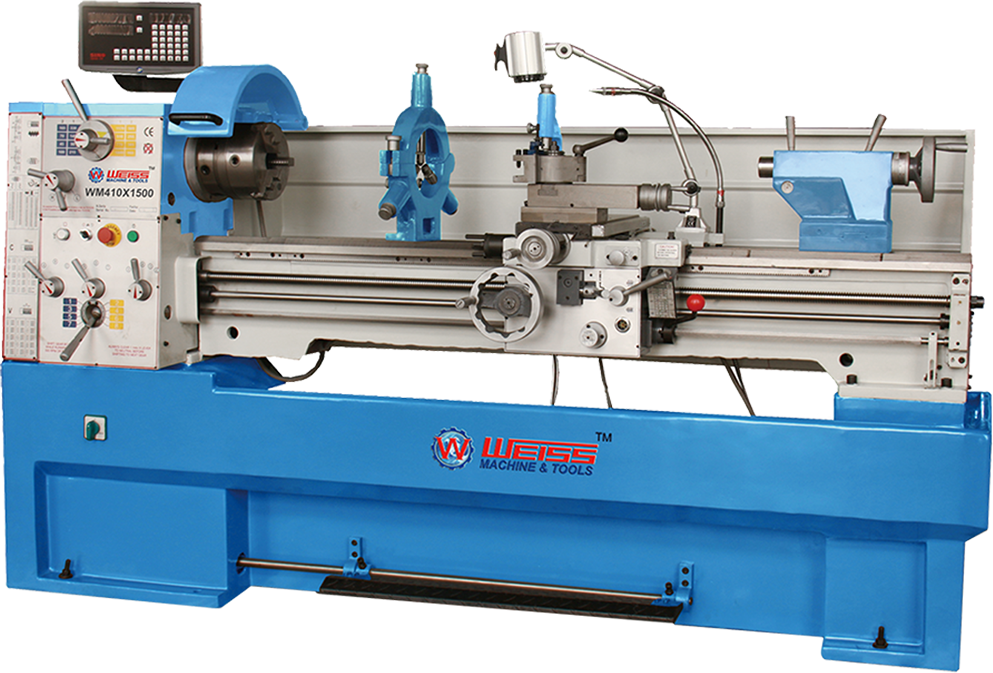

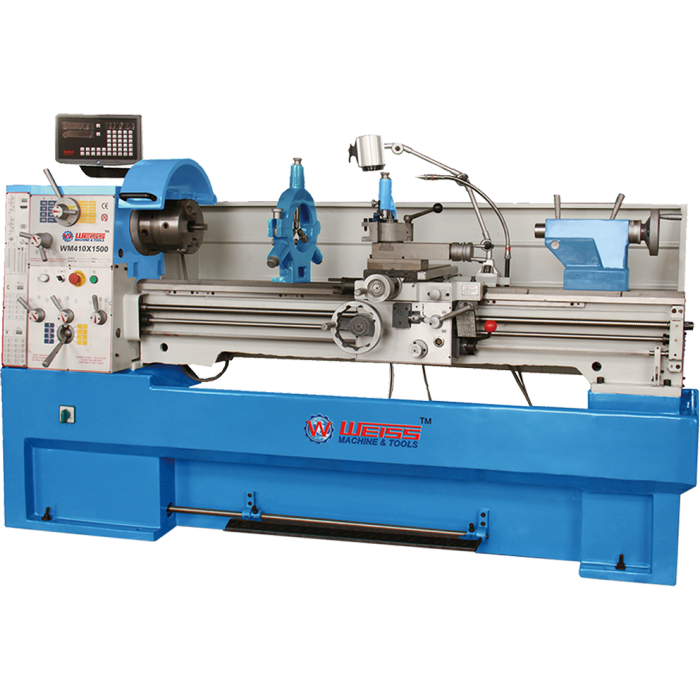

Name: WL410E ENGINE LATHE MACHINE
Brand: Weiss Machinery
Rating: 4.6 (17 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Specifications

Model No.	WL410Ex1000/1500
ITEM NO.	10106400/10106401
Specifications：	Metric(mm)	Imperial (in)
Distance between centers	1000/1500mm	39-3/8"/59-1/16"
Swing over bed	410mm	16-9/64"
Swing over gap	580mm	22-53/64"
Swing over cross slide	255mm	10-3/64"
Width of bed	250mm	9-27/32"
Taper of spindle bore	MT6	MT6
Spindle nose	D1-6	D1-6
Spindle bore	52mm	2-3/64"
Number of spindle speeds	16	16
Range of spindle speeds	45-1800 rpm	45-1800 rpm
Range of cross feeds	0.0291-1.0190mm/r 17kinds	0.0011"~0.0401" 17kinds
Range of longitudinal feeds	0.0506-1.7707mm/r 17kinds	0.002"~0.0697" 17kinds
Range of inch threads	2-72 T.P.I 45kinds	2-72 T.P.I 45kinds
Range of metric threads	0.2-14mm 39kinds	0.2-14mm 39kinds
Range of diametrical pitches	8-44 D.P 21 kinds	8-44 D.P 21 kinds
Range of module pitches	0.3-3.5 M.P 18kinds	0.3-3.5 M.P 18kinds
Top slide travel	140mm	5-33/64"
Cross slide travel	210mm	8-17/64"
Tailstock quill travel	120mm	4-23/32"
Tailstock quill diameter	50mm	1-31/32"
Taper of tailstock quill	MT4	MT4
Motor	2.2/3.3KW	2.2/3.3KW
Packing size	2060/2560x900x1640mm	81-7/64" / 100-25/32"x35-7/16"x64-9/16"
Net weight	1550/1800kg	3417lb/3968lb
