WL660 ENGINE LATHE MACHINE

WL660 ENGINE LATHE MACHINE
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WL660 Engine Lathe Machine

    Distance Between Centers: 1000mm 1500mm 2000mm 3000mm

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications
    Model No. WL560x1500/2000/3000
    ITEM NO.
    10106661/10106662/10106663
    Specifications： Metric(mm) Imperial (in)
    Distance between centers 1500/2000/3000mm 59-1/16"/78-47/64"/118-7/64"
    Swing over bed 660mm 25-63/64"
    Swing over gap 900mm 35-7/16"
    Swing over cross slide 440mm 17-21/64"
    Length of gap 250mm 9-27/32"
    Width of bed 400mm 15-3/4"
    Spindle nose D1-8 D1-8
    Spindle bore 105mm 4-9/64"
    Taper of spindle bore 113mm (1:20) MT5
    Step of spindle speeds 16 16
    Range of spindle speeds 25-1600 rpm 25-1600 rpm
    Range of cross feeds 0.022-0.74mm 25kinds 0.0009"x0.0291" 25kinds
    Range of longitudinal feeds 0.044-1.28mm 25kinds 0.0017"x0.0504" 25kinds
    Range of metric threads 0.45-120mm 54kinds 0.45-120mm 54kinds
    Range of inch threads 7/16-80 T. R. I 54kinds 7/16-80 T. R. I 54kinds
    Range of module pitches 0.25-60 M.P 46kinds 0.25-60 M.P 46kinds
    Range of diametrical pitches 7/8-160 D.P 42kinds 7/8-160 D.P 42kinds
    Max.section of tool 25mmx25mm 63/64"x63/64"
    Leadscrew diameter&thread Φ40mmx12mm Φ1-37/64"x2T.P.I
    Top slide travel 230mm 9-1/16"
    Cross slide travel 365mm 14-3/8"
    Tailstock quill travel 235mm 9-1/4"
    Tailstock quill diameter 90mm (3"-1/2") 3-35/64"
    Taper of tailstock quill MT5 MT5
    Coolant pmp 90W 90W
    Motor 7.5KW 7.5KW
    Net weight 3060/3345/3710Kg 6746lb/7374lb/8179lb
    Gross weight 3535/3835/4310kg 7793lb/8454lb/9501lb
    Packing size 10106661: 3240x1140x1840mm 10106661: 127-9/16"x44-7/8"x72-7/16"
      10106662: 3740x1140x1840mm 10106662: 147-1/4"x44-7/8"x72-7/16"
      10106663: 4740x1140x1840mm 10106663: 186-39/64"x44-7/8"x72-7/16"

    Features&Details
    Standard Accessories
    Optional Accessories

    The file is encrypted. Please fill in the following information to continue accessing it

    Inquire the password
    GET IN TOUCH
    If you have any questions our products or services,feel free to reach out to us.Provide unique experiences for everyone involved with a brand. we’ve got preferential price and best-quality products for you.
    -
    Please fill in the information
    *
    Please fill in your e-mail
    *
    Please fill in the content
    RELATED PRODUCTS
    WL460D ENGINE LATHE MACHINE
    WL460D ENGINE LATHE MACHINE
    WL510 ENGINE LATHE MACHINE
    WL510 ENGINE LATHE MACHINE
    WL410 ENGINE LATHE MACHINE
    WL410 ENGINE LATHE MACHINE
    WL460 ENGINE LATHE MACHINE
    WL460 ENGINE LATHE MACHINE
    WL560 ENGINE LATHE MACHINE
    WL560 ENGINE LATHE MACHINE
    WL660 ENGINE LATHE MACHINE
    WL660 ENGINE LATHE MACHINE

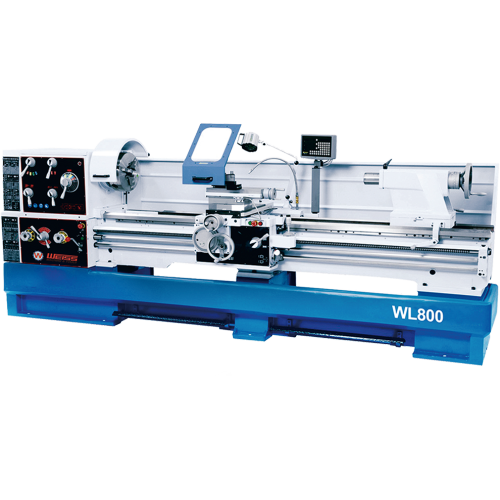

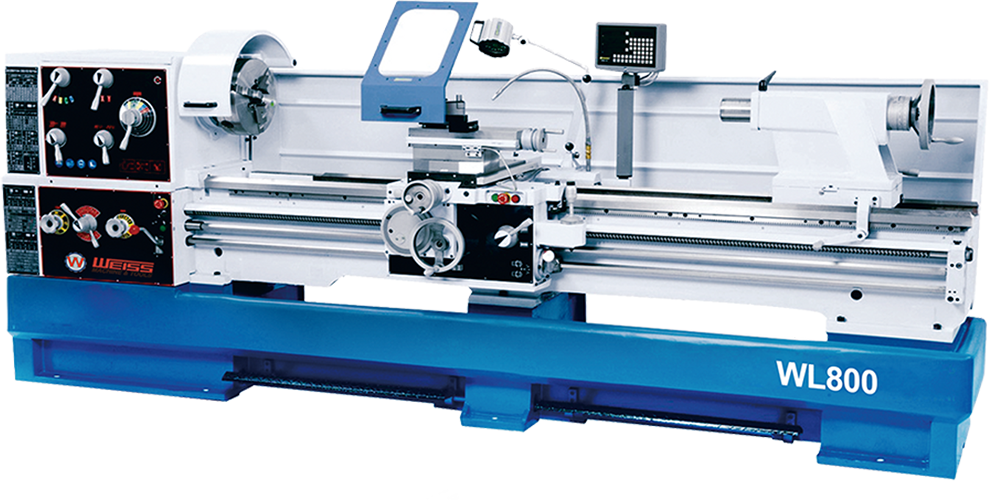

    WL800 ENGINE LATHE MACHINE
