Product Description

Specifications

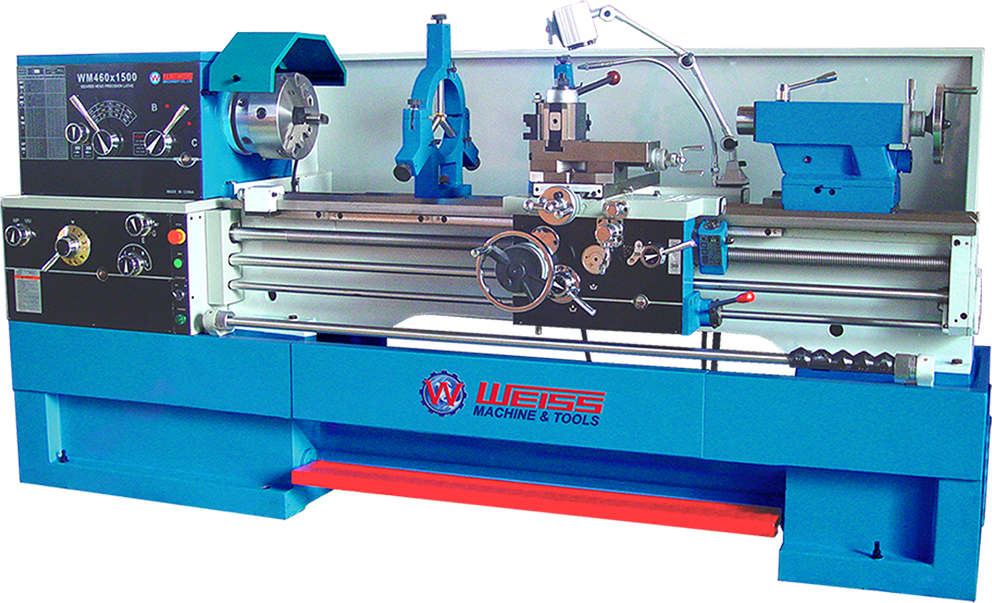

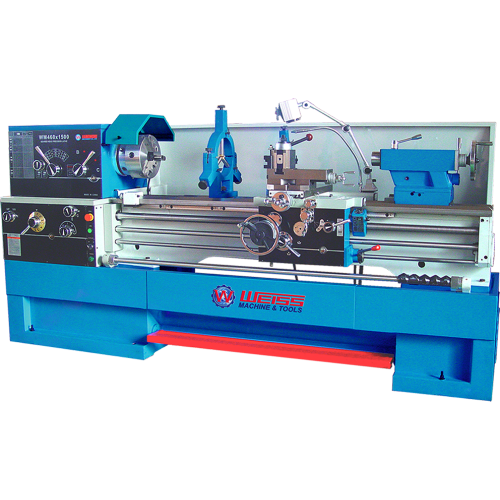

Model No.	WM460Ax1000/1500/2000
ITEM NO.	10107346/10107347/10107348
Specifications：	Metric(mm)	Imperial (in)
Distance between centers	1000/1500/2000 mm	39-3/8"/59-1/16"/78-47/64"
Swing over bed	460 mm	18-7/64"
Swing over gap	700 mm	27-9/16"
Swing over cross slide	290 mm	11-27/64"
Width of bed	336 mm	13-15/64"
Taper of spindle bore	MT7	MT7
Spindle nose	D1-8	D1-8
Spindle bore	80 mm	3-5/32"
Number of spindle speeds	12	12
Range of spindle speeds	42-1800/25-1800 rpm	42-1800/25-1800 rpm
Range of cross feeds	0.03-1.23mm/r	0.0012"-0.0484"/r
Range of longitudinal feeds	0.04-2.46mm/r	0.0016"-0.0969"/r
Range of inch threads	1-5/8-72 T.P. I/61	1-5/8-72 T.P. I/61
Range of metric threads	0.5-20 mm/24	0.5-20 mm/24
Range of moduler threads	0.25-10 M.P/20	0.25-10 M.P/20
Range of diametrical threads	3-1/4-96 D.P/45	3-1/4-96 D.P/45
Top slide travel	100 mm	3-15/16"
Cross slide travel	230 mm	9-1/16"
Tailstock quill travel	130 mm	5-1/8"
Tailstock quill diameter	75 mm	2-61/64"
Taper of tailstock quill	MT5	MT5
Motor	5.5KW	5.5KW
Packing size	(2310/2810/3320)x1140x1640 mm	(90-15/16" / 110-5/8" / 130-45/64")x44-7/8"x64-9/16"
Net weight	2635/2835/3055/3285KG	5809lb/6250lb/6735lb/7242lb

Features&Details

1. Induction hardened, precision ground V-way bed.
2. D1-8 spindle is supported by two high quality tapered roller bearing and one ball bearing.
3. Hardened, precision ground, chrome molybdenum gears in headstock.
4. 80mm spindle bore gets high in rigidity and accuracy.
5. Universal gearbox allows inch, metric, diametral, and module pitch threads without changing gears.
6. Five position automatic carriage stop.
7. Special braking device work quickly and effectively.
8. One-piece casting iron base allows heavier cuts.

Standard Accessories

STANDARD ACCESSORIES:	INCLUDED
3-Jaw Chuck(250mm)	Yes
4-jaw chuck(320mm)	Yes
Face Plate (405mm)	Yes
Follow Rest	Yes
Splash Guard	Yes
Steady Rest	Yes
One piece casting stand	Yes
Halogen work lamp	Yes
Toolbox & Tools	Yes

Optional Accessories

OPTIONAL ACCESSORIES:	Item NO.:
Taper turning attachment	-
Turning tools	-
Quick change tool post	-
Digital readout system	-
Leadscrew cover	-
Tool post cover
Micro carriage stop
