| Selling Units: | Bag/Bags |
|---|
Transportation: Others

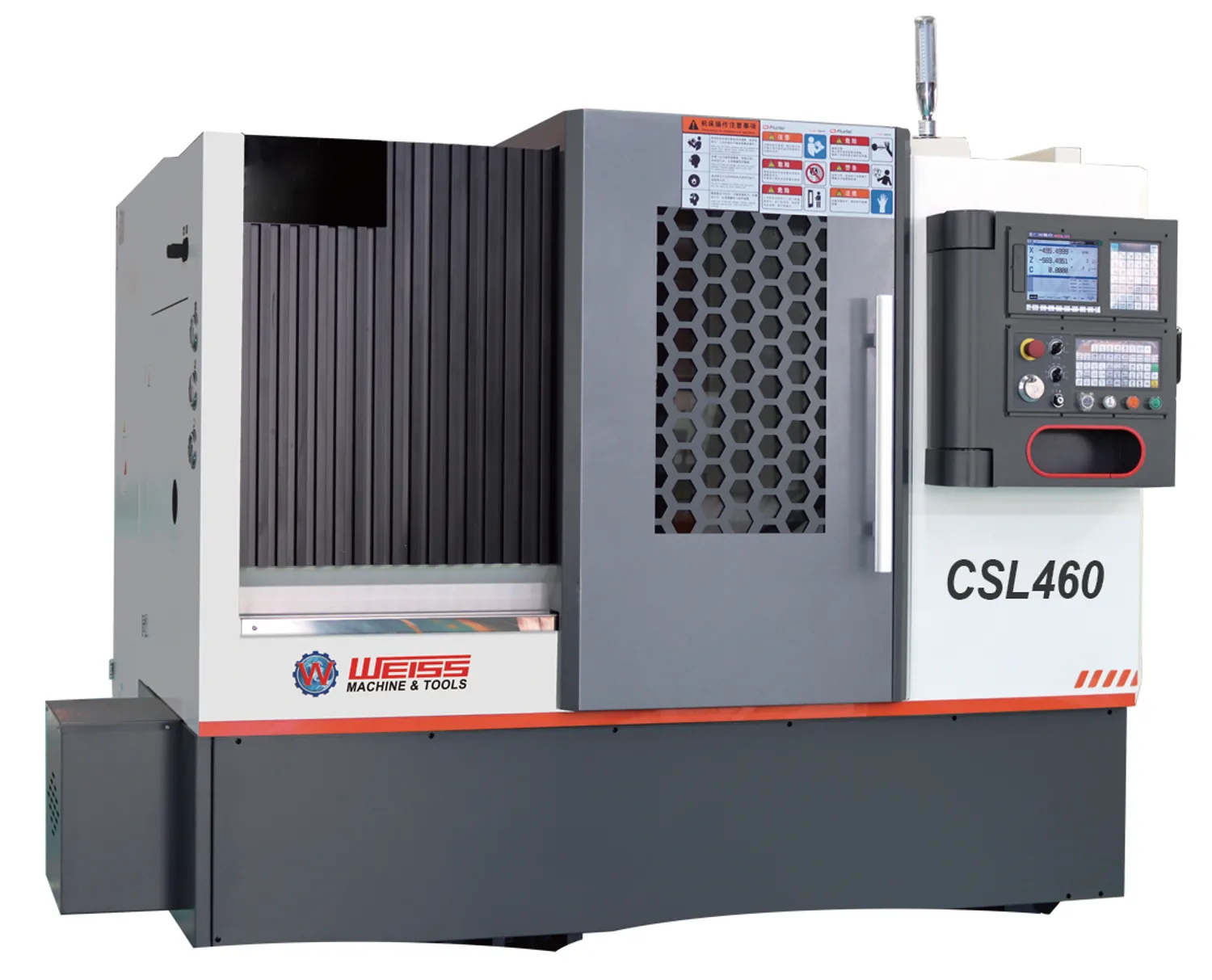

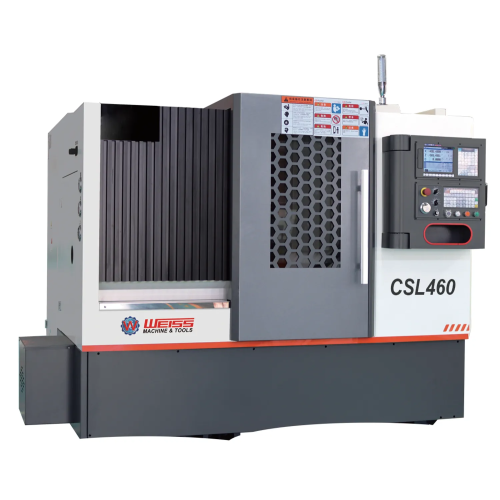

| CONTENT | METRIC INFO. |
| ITEM NO. | 10122146 |
| Specification | |
| Max. swing dia. over bed | 460mm |
| Max. swing dia. over slide | 260mm |
| Max. work piece length | 350mm |
| Max. bar capacity | 44mm |
| Max. processing diameter (plate) | 440/360mm |
| Spindle nose | A2-5 GB59001 |
| Spindle bore | 56 Φ/mm |
| Spindle speed | 50-3500 r/min |
| Spindle shift mode | Variable |
| Spindle motor power | 7.5Kw |
| Chuck type | hydraulic chuck |
| Chuck size | 8 Inch |
| X axis rapid traverse | 24 m/min |
| Z axis rapid traverse | 24 m/min |
| X axis servo motor torque | 7.5 N.m |
| Z axis servo motor torque | 7.5 N.m |
| X axis travel | 240mm |
| Z axis travel | 400mm |
| Guide way type | Linear guide rail |
| Turret type | horizontal type 8/12 station |
| Tool shank size | 25x25/Φ32 |
| Tail stock type | hydraulic |
| Tail stock quill dia | 70 Φ/mm |
| Tail stock quill travel | 80mm |
| Tail stock quill taper | MT5# |
| Total rated power | 11Kw |
| Total rated current | 23A |
| Net weight | 3000Kg |
| Machine dimension(LxWxH) | 2500x1950x1950(mm) |
| Features | |
|
| Details | |
