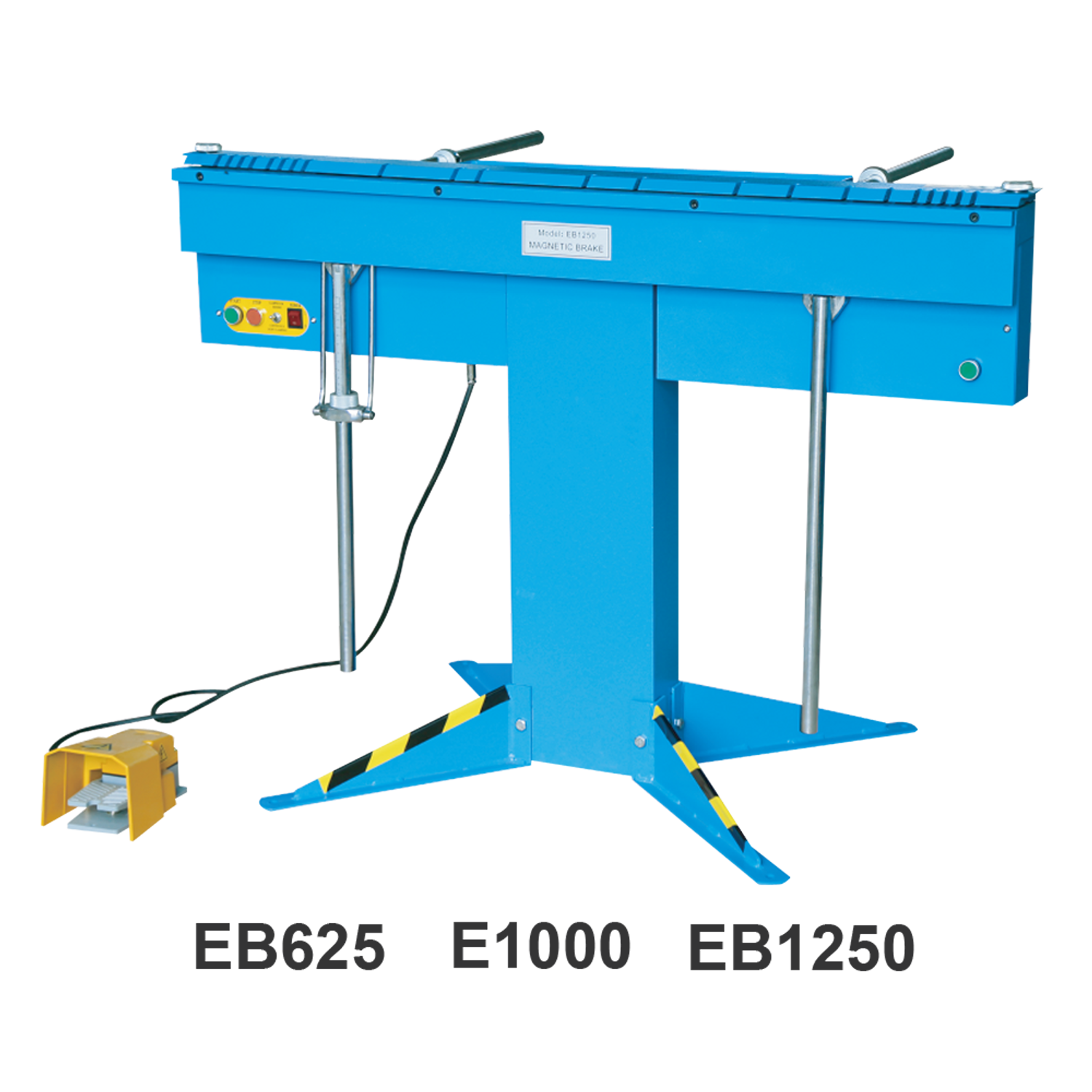

Name: EB625/EB1000/EB1250 Magnetic Bending Machines
Brand: Weiss Machinery
Rating: 4.6 (33 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Specifications

Model No.	EB625	EB1000	EB1250
Item No.	11220006	11220010	11220012
Specifications：(for standard full-length clamping bar)
Max. Capacity (lengthxthickness)	625x1.6mm 2'x16 ga	1000x1.6mm 3'x16 ga	1250x1.6mm 4'x16 ga
Clamping force	3 Ton	4.5 Ton	6 Ton
Duty cycle	30%	30%	30%
Back gauge	390 mm	640 mm	640 mm
Foot switch	NO		Standard
Nominal current	4 Amp	6 Amp	6 Amp
Protection	Thermal cut-out 70°
Bending-edge length	670 mm	1050 mm	1300 mm
Distance between lifters	630 mm	1010 mm	1260 mm
Packing size(cm)	83x112x38	120x112x38	145x112x38
N.W/G.W. (kg)	102/127	142/177	175/220

Features&Details

Features:

The fundamental principle of the Magnetic Bending Machine is that it uses electromagnetic, rather thanmachanical, clamping system.
The machine consists kf a long electromagnet with a steel clamp bar located above it.
The sheet metal is clamped between the two by an electromagnet capable of clamping with a force range of between 3-10 tons.

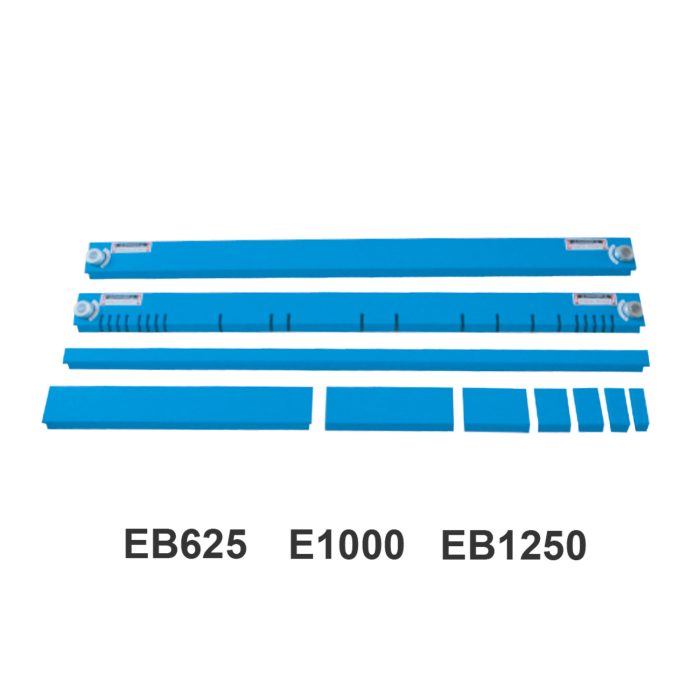

Rotating the bending beam then forms the bend, The sheet is bent around the front edge of the clamping bar, They have application in many ways with four various sets clamping bars.
