| Selling Units: | Bag/Bags |
|---|
Transportation: Others

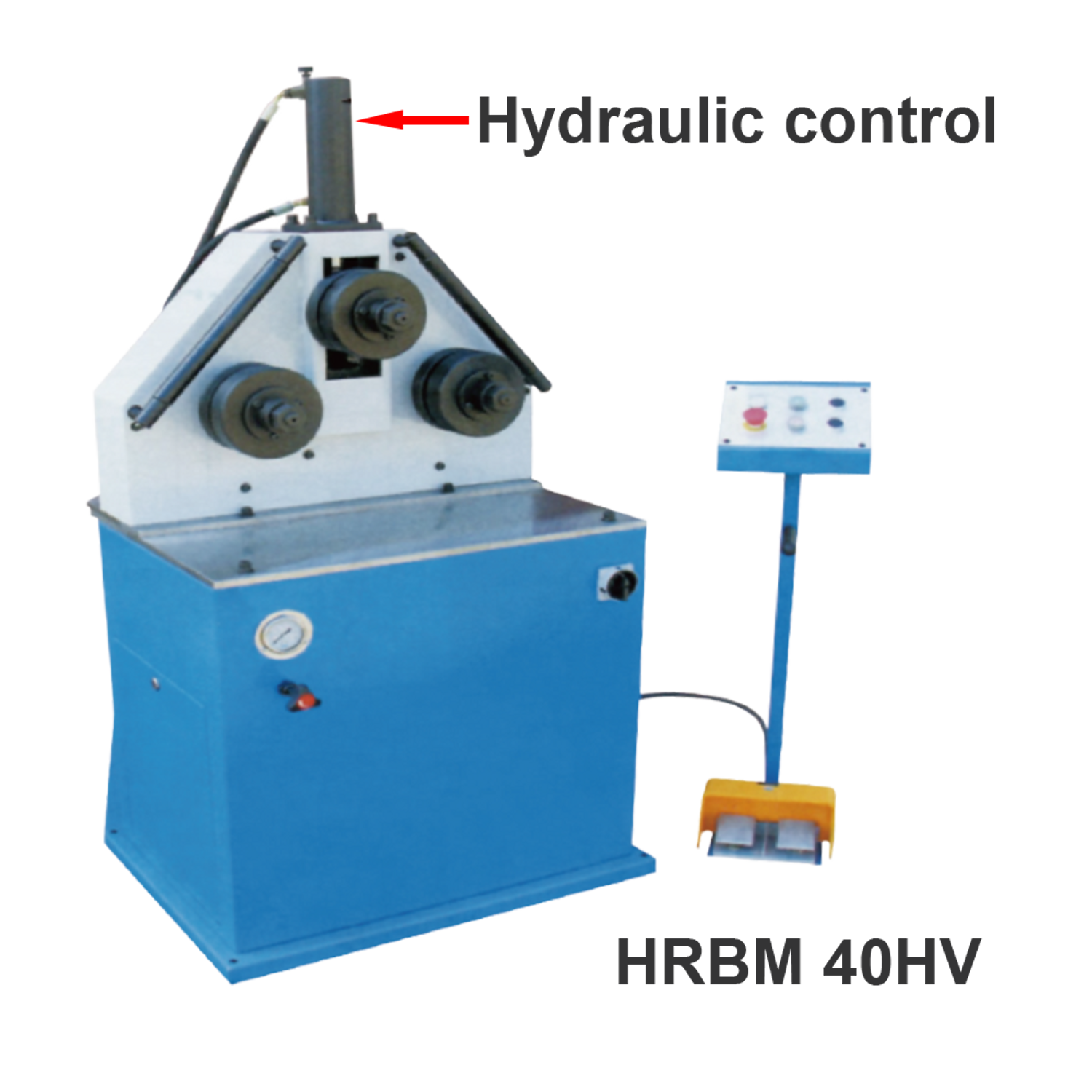

| Model No. | HRBM 40HV | ||||
| Item No. | 11328142 | ||||
| Specifications： | |||||
| Dia. of roll | Φ40 mm | ||||
| Motor power | 1.5Kw / 2HP | ||||
| Spindle speed | 9.3 r/mm | ||||
| Packing size | 134x93x185 cm | ||||
| N.W/G.W. | 490/586 kg | ||||
| Max. Capacity | Sisz (mm) | Min dia (mm) | Max. Capacity | Sisz (mm) | Min dia (mm) |
| 50x10 | 600 | 60x40x6 | 600 | ||
| 20x6 | 800 | 30x15x4 | 900 | ||
| 60x20 | 800 | 50x5 | 500 | ||
| 30x6 | 1250 | 30x4 | 500 | ||
| 30x30 | 650 | 50x5 | 500 | ||
| 10x10 | 1100 | 30x4 | 500 | ||
| 50x6 | 600 | Φ30 | 650 | ||
| 30x3 | 500 | Φ10 | 1100 | ||
| 50x6 | 600 | | 50x50x2.5 | 700 | |
| 30x3 | 500 | 30x30x2 | 800 | ||
| 60x40x6 | 600 | 50x50x2.5 | 800 | ||
| 30x15x4 | 900 | 40x40x2 | 1000 | ||
| Profile | HRBM 40HV | ||||
| Sisz (mm) | Min dia (mm) | ||||
| 30X2 35X2 | 700 | ||||
| 40X2 45X2 | |||||
| 50X2 55X2 | |||||
| 60X2 65X2 | |||||
| 70X2 | |||||
