Product Description

Description

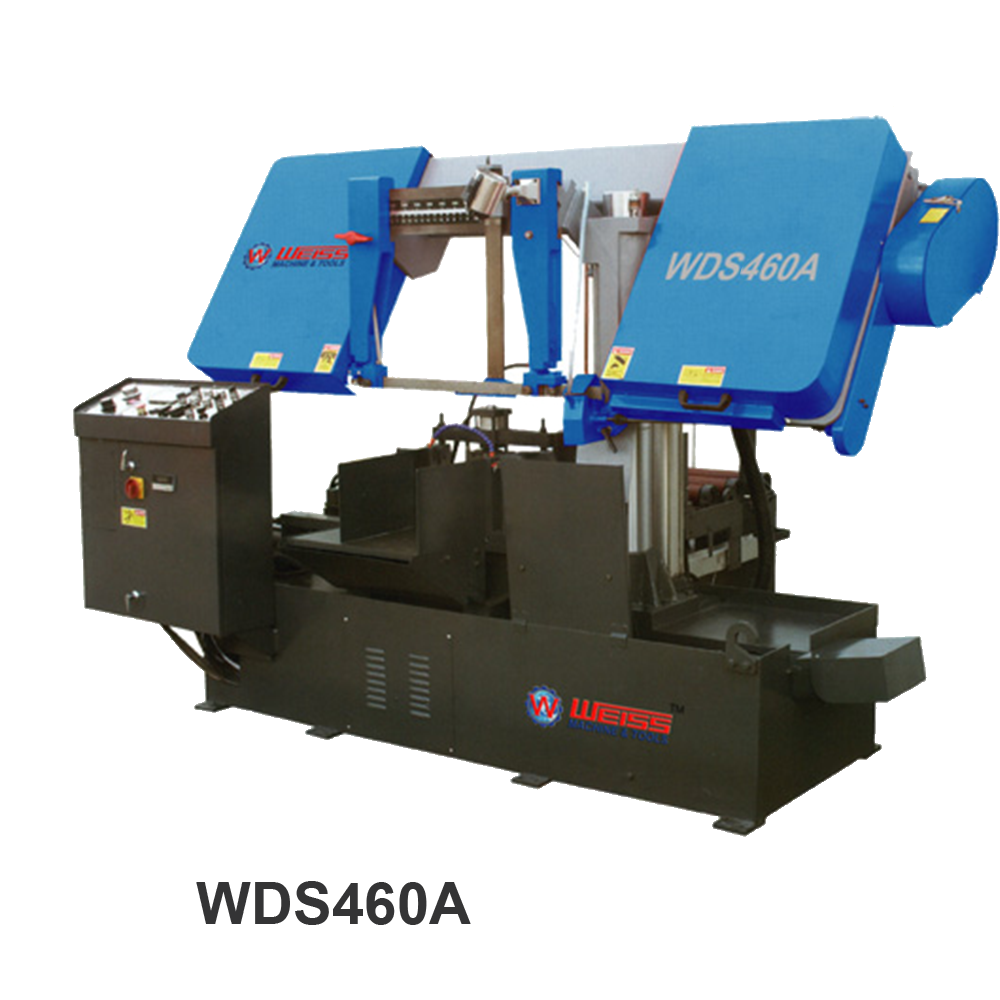

Hydraumatic controls saw cutting feed, Band Saw blade tension and workpiece clamping.Band saw blade overload protection device.Planer-type structure with high rigidity.Mainly used for sawing all kinds of ferrous and non-ferrous metals;The utility model has the advantages of reasonable structure, stable performance, high reliability and high precision, and is an ideal device for cutting medium and small batches.

Specification

Model No.		WDS460A	WDS560A
Item No.		12024146	12024156
Specifications：
Motor Main		5.5 kw	7.5 kw
Motor Hydraulic		750 W	1.5 kw
Coolant Pump		75 W	75 W
Max. cutting Capacity(mm)	Round	Φ460 mm	Φ560 mm
	Rectangle	500 x 460 mm	610 x 560 mm
Bundle cutting(mm)	Bundle	310 x 230 mm	-
Blade Speed		20~100 (inverter) (m/min)	20~100 (inverter) (m/min)
Blade Size		5450 x 41 x 1.3 mm	6200 x 54 x 1.6 mm
Guides		Carbide and beadng blade guides
Cleaning		Power wire brush & good coolant
Tension		Hydraulic	Hydraulic
Multiple Feed		400mm x 9 tims	400mm x 9 tims
Work Vice		Hydraulic	Hydraulic
Machine Weight		3500 kg	3800 kg
Packing Size (LxWxH)		2850 x 2200 x 1900 mm	3400 x 2200 x 2000 mm
