Product Description

Features

The linear speed of the saw band and the feed speed of the slide (hydraulic slide or servo feed slide) are set by the program. According to the different structure of the saw cut-off surface, the speed of the saw band and the feed speed of the slide are adjusted to achieve the best match.There are fixed, retractable and reversible tooling platforms to meet the requirements of different sawing processes.The band Sawing Machine is equipped with automatic tension device, which can set tension strength according to different bands.Automatically brushing scraps away and prolonging the service life of saw blade.Automatically feeding by plate pulley. Hydraulic control of the double workpiece clamping.

Specifications

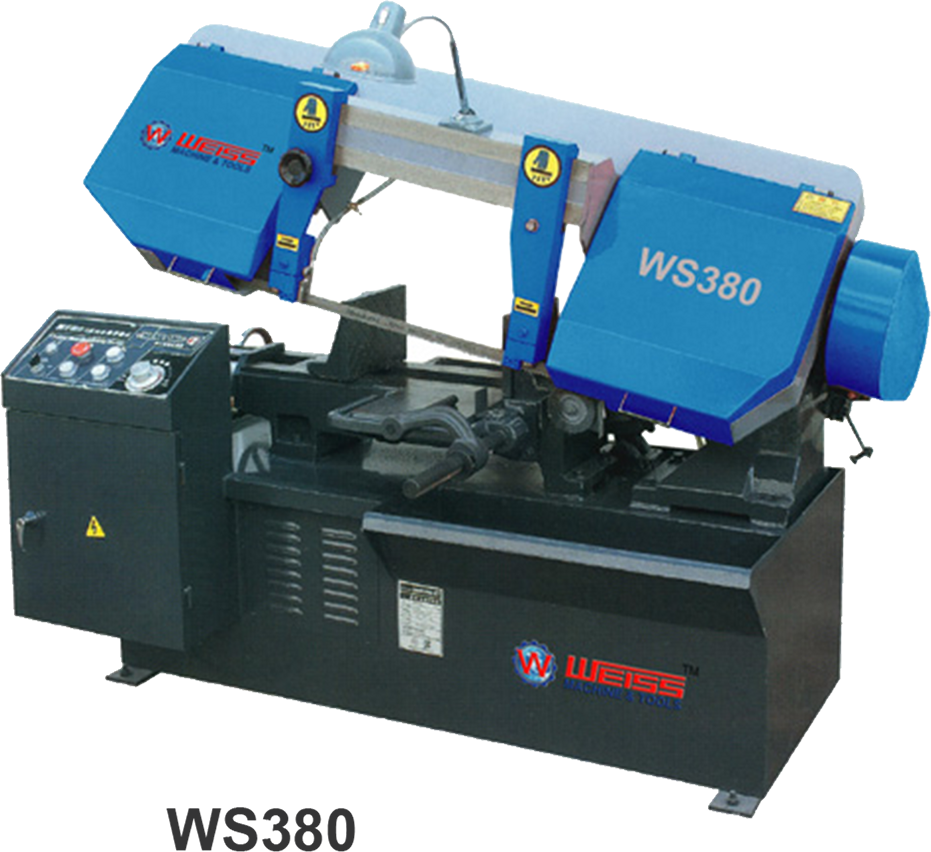

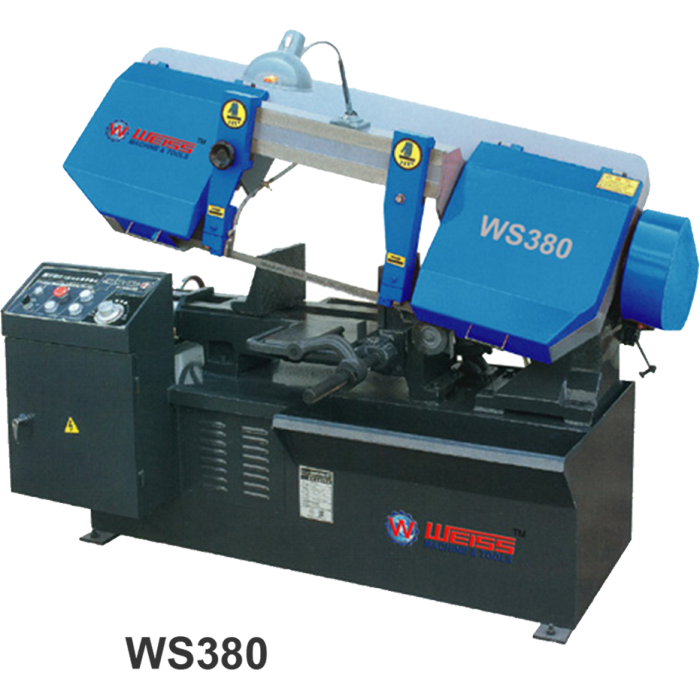

Model No.		WS380
Item No.		12020380
Specifications：
Motor Main		3.0 kw
Motor Hydraulic (KW)		750W
Coolant Pump		75W
Cutting Capacity	Round	Φ380 mm
Cutting Capacity	Square	400 x 250 mm
Blade Speed		25, 35, 45, 55 (m/min)
Blade Size		4115 x 34 x 1.1 mm
Workpiece Clamping		Hydraulic Vice
Blade Tensioning		Manual
Main Drive		Wormwheel Drive
Table loading capacity		620 kg
Overall Dimension (LxWxH)		2000 x 1200 x 1310 mm
