Product Description

Features

Mainly used for sawing all kinds of ferrous and non-ferrous metals;The utility model has the advantages of reasonable structure, stable performance, high reliability and high precision, and is an ideal device for cutting medium and small batches.It is mainly used to cut the ferrous and nonferrous metal with large diameter, such as pipe, square, bar, angle iron, armor plate, profiled bar and so on.

Specifications

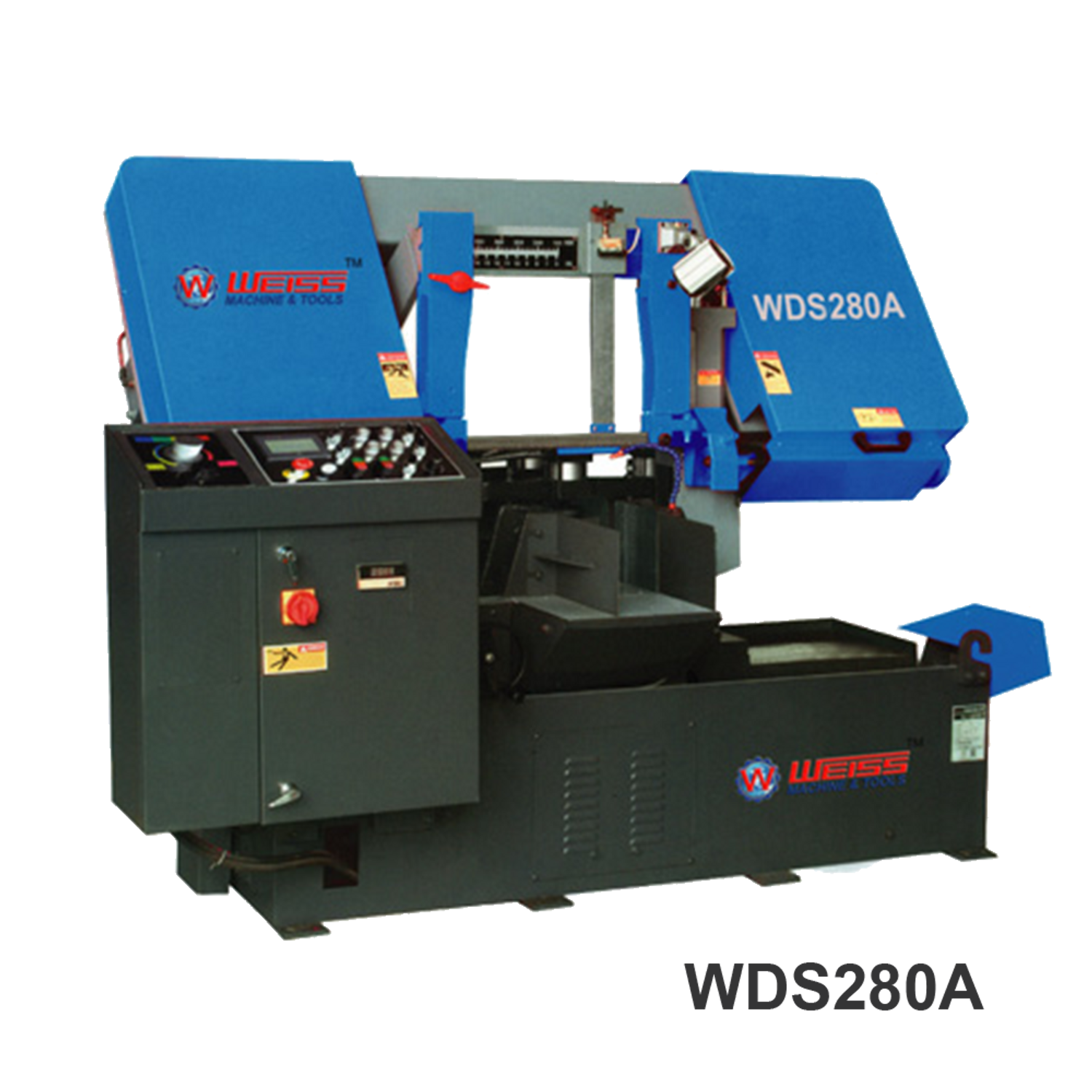

Model No.		WDS280A	WDS360A
Item No.		12024028	12024136
Specifications：
Motor Main		2.2kw	4kw
Motor Hydraulic		370W	750W
Coolant Pump		75W	75W
Max. cutting Capacity(mm)	Round	Φ280 mm	Φ360 mm
	Rectangle	280 x 400 mm	360 x 360 mm
Bundle cutting(mm)	Bundle	210 x 150 mm	280 x 160 mm
Blade Speed		20~90 (inverter) (m/min)	20~100 (inverter) (m/min)
Blade Size		3620 x 27 x 1.1 mm	4420 x 34 x 1.1 mm
Guides		Carbide and beadng blade guides
Cleaning		Power wire brush & good coolant
Tension		Manual	Hydraulic
Multiple Feed		400mm x 9 tims
Work Vice		Hydraulic
Machine Weight		1500 kg	2100 kg
Packing Size (LxWxH)		2200 x 1900 x 1700 mm	2500 x 2200 x 1750 mm
