| Selling Units: | Bag/Bags |
|---|
Transportation: Others

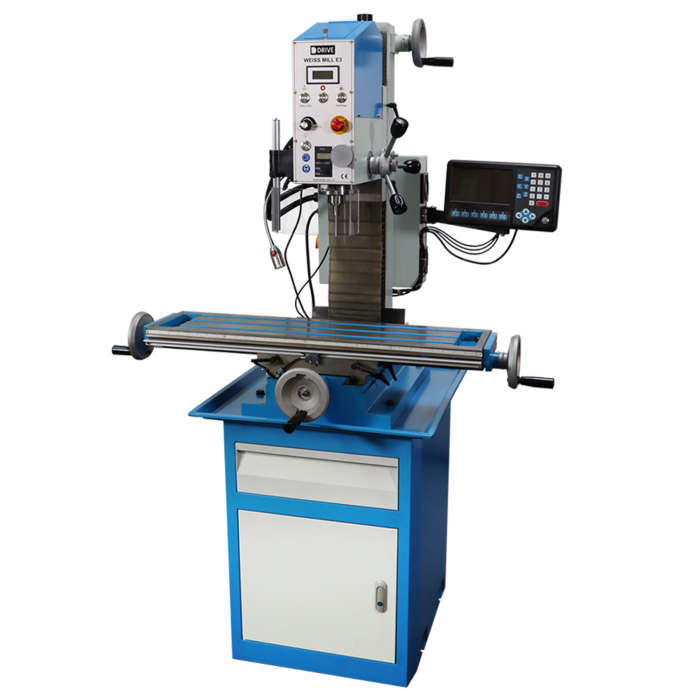

| Model No. | E3 | |
| ITEM NO. | 10203003 | |
| Specifications： | Metric(mm) | Imperial (in) |
| Max. drilling capacity | Φ32 mm | |
| Max. end milling capacity | Φ20 mm | |
| Max. face milling capacity | Φ76 mm | |
| Table size | 840x210 mm | |
| Cross travel | 200 mm | |
| Longitudinal travel | 580 mm | |
| Vertical travel | 230 mm | |
| Taper of spindle bore | MT3/R8/ISO30 | |
| Spindle stroke | 100 mm | |
| T-slot | 3x14 mm | |
| Step of spindle speeds | Variable | |
| Range of spindle speeds | 100-2500 rpm | |
| Heads tilt left & right | ±90° | |
| Distance from spindle to column | 180 mm | |
| Distance from spindle nose to table | 450 mm | |
| Motor | 1.5 KW | |
| Dimensions | 1000x710x1020 mm | |
| Packing size: | 1050x740x1150 mm | |
| Net Weight: | 240 Kg | |

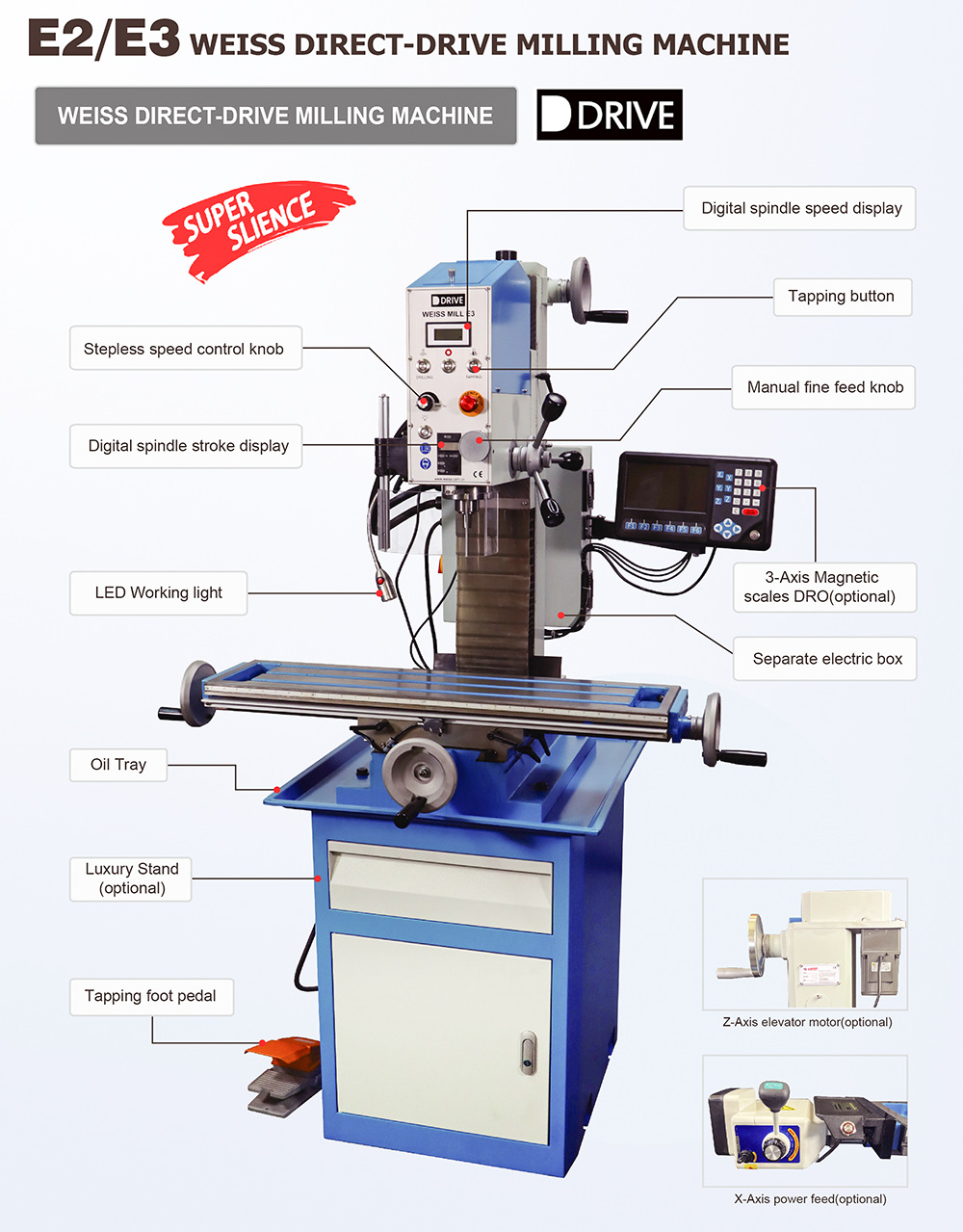

FEATURES:
1. Medium capacity, small footprint machine with MT3 spindle nose, allowing the use of widely used attachments. Use for precision machining, prototypes, maintenance, laboratories.
2. Maintenance free thanks to the Weiss direct transmission: no pinion, no belt, nonoise, no worries !
3. Massive and large-dimensioned XY stage, precisely surface-finished with T-slots
4. Dovetail guiding for X,Y&Z axis, ajustable by gibs
5. Digital speed and spindle stroke(metric&imperial mode)
6. Direct drive (no belts or gears)，absolutely silent operation
7. Very good precision and excellent rigidity
8. Spindle speed adjustable by electronic speed control
9. Micrometric fine feed or standard drilling function
10. Mill head tiltable to both sides for angular boring, milling of bevels etc.
| STANDARD ACCESSORIES: | INCLUDED |
| Tapping foot pedal | yes |

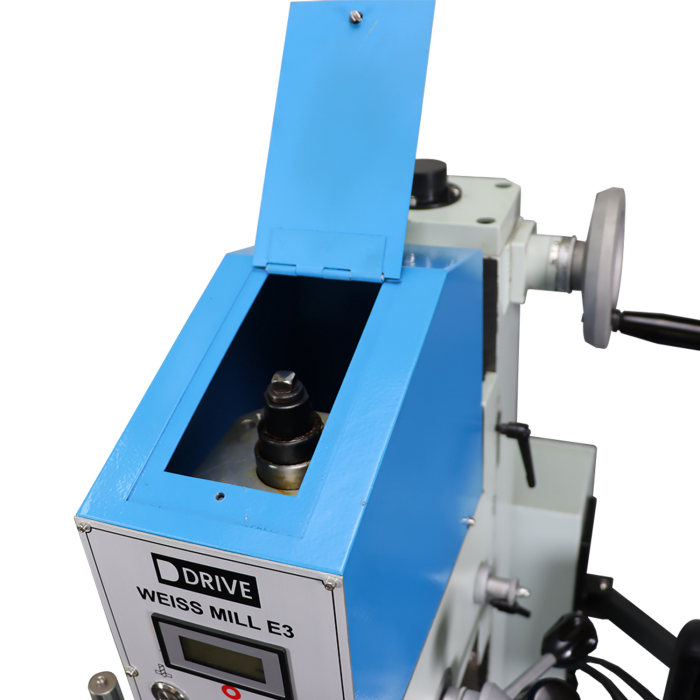

| Drawbar M12 | yes |
| Keyless Drill chuck 1-16mm | yes |
| Arbor MT3/B16-M12 | yes |
| Digital display of speed range | yes |
| Digital spindle stroke indication | yes |
| Protect cover for spindle | yes |

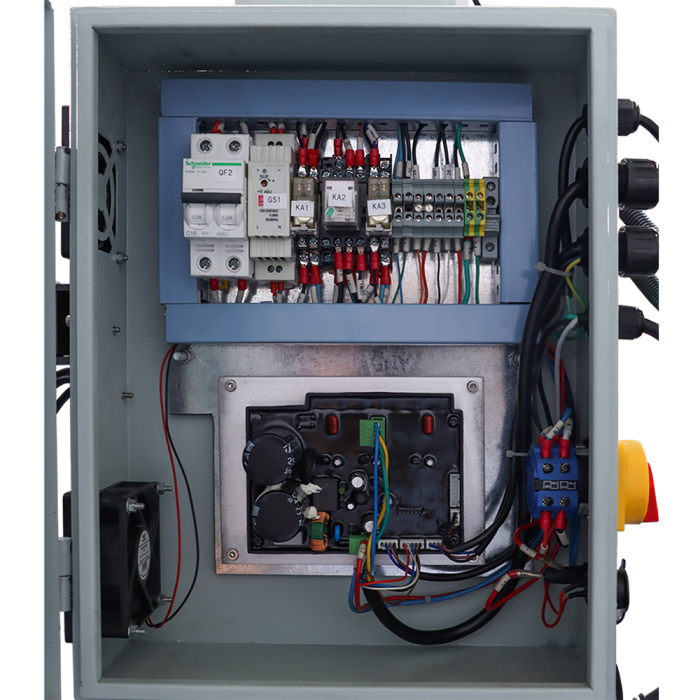

| Separate electric box | yes |
| LED working light | yes |
| Tool box & tools | yes |
| OPTIONAL ACCESSORIES: | Item NO.: |
| Power feed for X-axis(E2/E3) | 30302041/30303041 |
| Elevator motor for Z-axis(E2/E3) | 30302047/30303047 |
| Mill chuck set ER32 MT3 3-20mm 12pcs | 22030233 |
| Horizontal&Vertical totary table HV8-200mm | 22111520 |
| Semi-universal dividing head BS-0 | 22113005 |
| Deluxe clamping kit sets 58pcs 12mm, M10(E2) | 22038022 |
| Deluxe clamping kit sets 58pcs 14mm, M12(E3) | 22038024 |
| 2 way precision tilting vise WOA100 | 22102104 |
| Universal Machine Vise MVB100 | 22102024 |
| Machine vise BMS 150 | 22101026 |
| Machine vise WHV140 | 22101045 |
| 25 pcsHHS drillset 1-13mm | 21210252 |
| 7 pcs HSS Tin-coated end mill set, 4-16mm | 21100007 |
| 20 pcs HSS Tin-coated end mill set, 3-20mm | 21100020 |
| 5 pcs Center drill set | 21200005 |
| Stand(E2/E3) | 30302030/30303030 |
| Luxury stand(E2/E3) | 30302035/30303035 |
| 3-Axis DRO with magnetic sales D80(E2/E3) | 23073302/23073304 |
| 3-Axis DRO with grating scales SlNO(E2/E3) | 23080302/23080304 |
