Home> Products> Milling Machines> Drilling&Milling Machines> WM7550 WUM7550 Bench type Drilling & Milling Machine

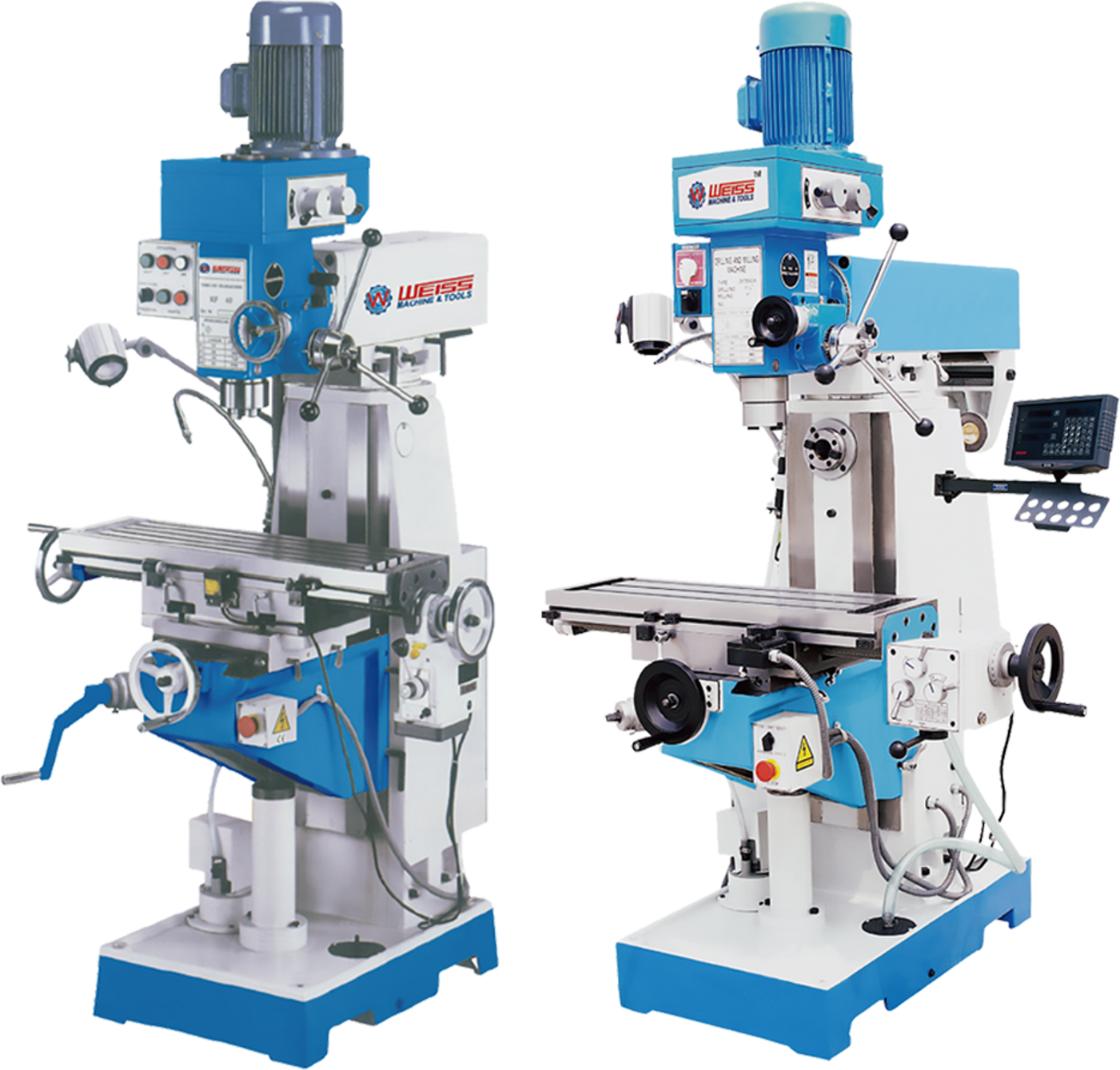

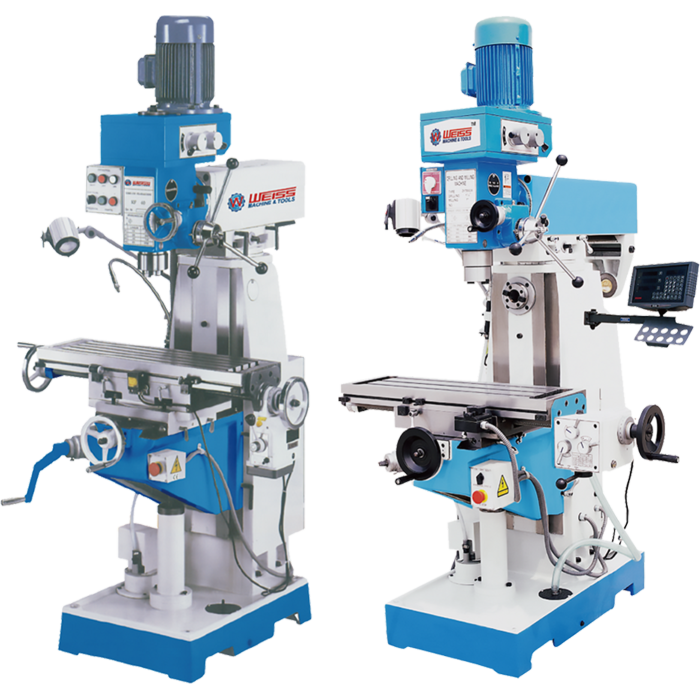

WM7550 WUM7550 Bench type Drilling & Milling Machine

WM7550 WUM7550 Bench type Drilling & Milling Machine
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WM7550 WUM7550

    Customization: Support for Customization

    Style: 10205001 10205002 10207001 10207002

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications

    MODEL NO. WM7550
    		 WUM7550
    ITEM NO. 10205001 10205002 10207001 10207002
    Specifications： Belt drive Gear drive Belt drive Gear drive
      Metric(mm) Metric(mm)
    Table size 800X240 mm
    Table travel (X,Y) 380x170mm(manual)/170mm(power feed) /150mm (swivel table)
    Knee travel 335 mm
    T-slot 5x14-44 mm
    Vertical Spindle: 290 mm
    Vertical Spindle:
    Distance spindle nose to table 65- 385 mm
    Spindle taper IS040
    Spindle stroke 120 mm
    Step of spindle speeds 9 8 9 8
    Range of spindle speeds 220-2400 rpm 115-1750 rpm 220-2400 rpm 115-1750 rpm
    Spindle motor 0.85/1.5 kw
    Head swivel (L&R) ±45°
    Horizontal Spindle:
    Spindle taper IS040
    Step of spindle speeds 9
    Range of spindle speeds 60-1350 mm
    Spindle motor 1.5 kw
    Distance spindle center to table 0 ~ 300 mm
    Distance spindle cneter to ram 183mm 180mm
    Packing size 1290x1140x2100mm 1290x1220x2100mm
    Net weight 610kg 970kg
