WDP32A Drill Press

WDP32A Drill Press
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WDP32A

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description

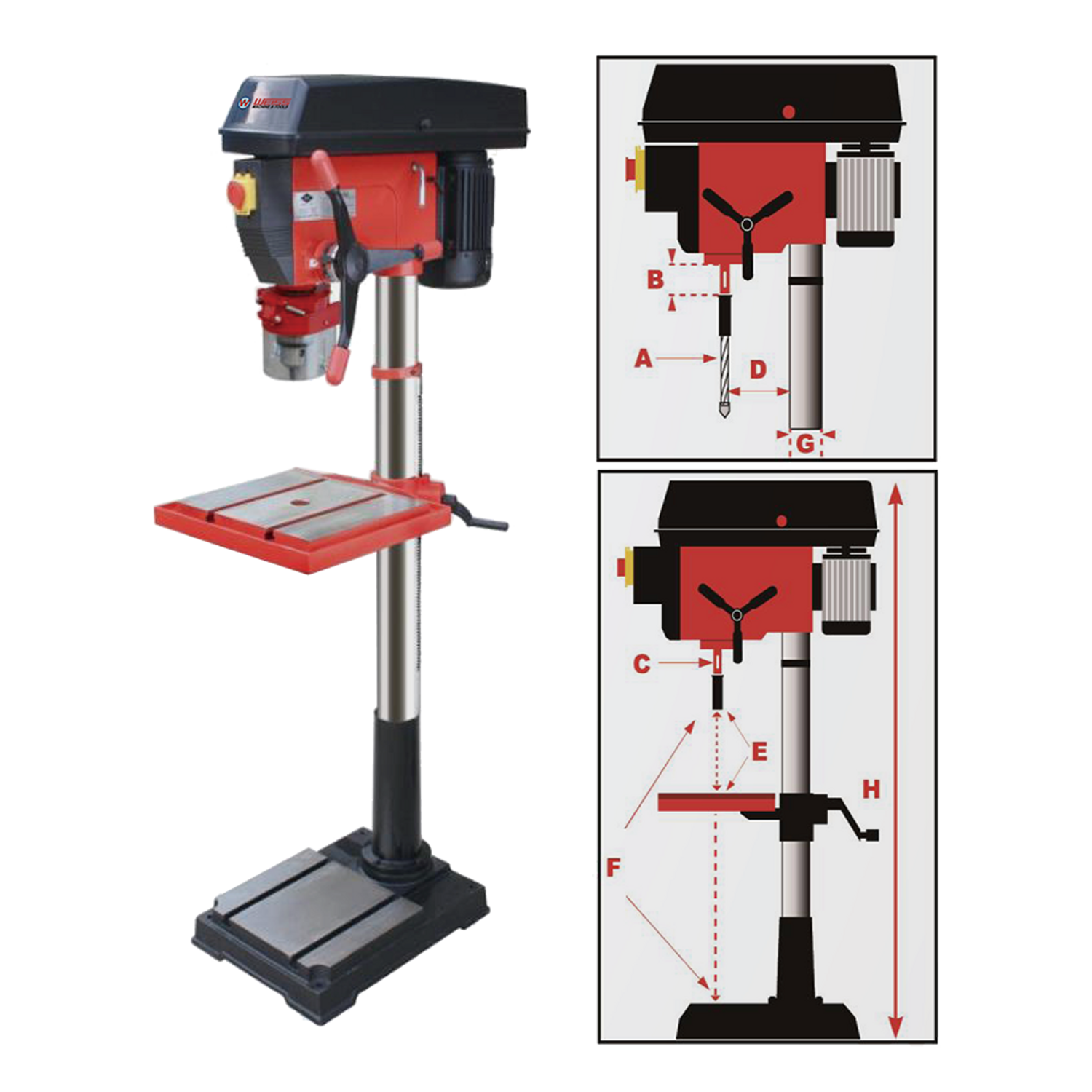

    Specifications
    Model No. WDP32A
    Item No. 10301321 10301321
    Specifications： Metric(mm) Imperial (in)
    A Max Drilling Diameter Φ32mm(1-1/4")
      Motor Power (W) 1.1/1.5 kw
      Chuck Capacity 5-20 mm
    B Spindle Travel 120 mm
      Class Of Speed 12
      Speed 50Hz 150-2450 RPM
      Speed 60Hz 180-2940 RPM
    C Spindle Taper MT4
    D Max. distance from spindle axis to surface of column 255 mm
    E Max. distance from spindle end to surface of table 745 mm
    F Max. distance from spindle end to surface of base 1205 mm
      Table Size 420X480 mm
      Base Size 575X425 mm
    G Column Diameter Φ92 mm
    H Height 1710 mm
      Net Weight/Gross Weight 125/130 Kg
      Packing Size 1415x650x305 mm
      20'/40' 84/168

    Features&Details
    Features:

    1. Cast iron working table, Cast iron base
    2. GS/CE/EMC/ROHS
    3. Micro-switch inside pulley cover box
    4. Front emergency switch
    5. Cast iron feeding handle
    6. Chuck Guard
    7. Cast iron belt Pulley
    8. Rack lifting system




    Optional Accessories

    Optional Accessories: Code No.
    6" Bench vice
    Cross laser light
