Product Description

Specifications

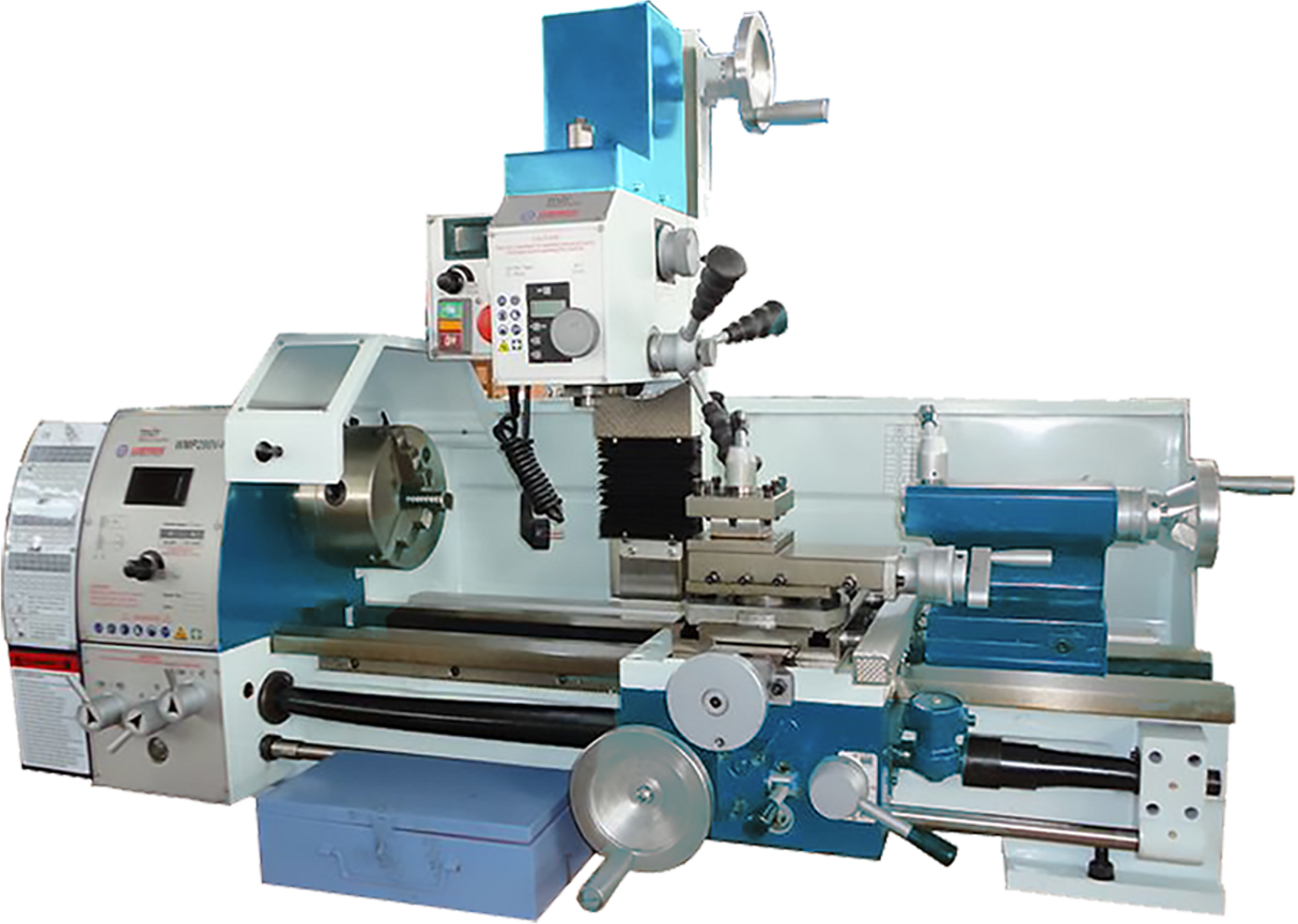

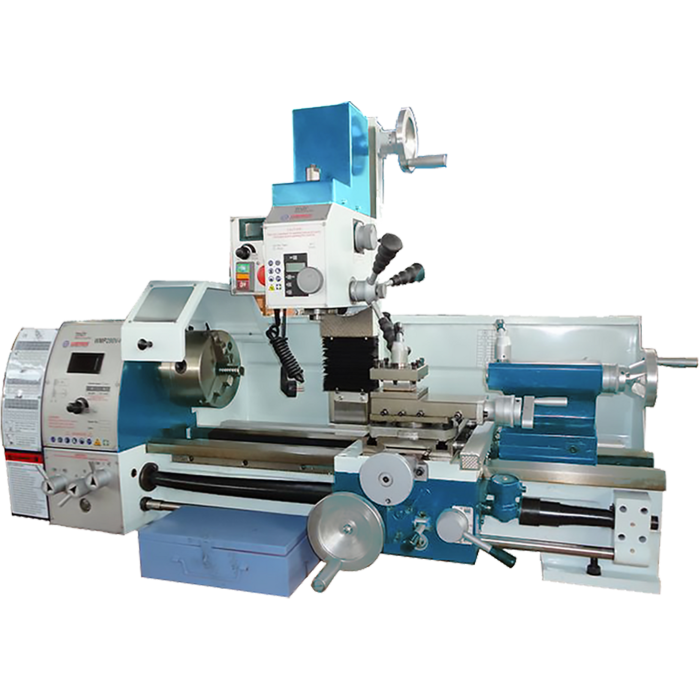

Model No.	WFP290V-F
ITEM NO.	10110416
Specifications：	Metric(mm)	Imperial (in)
Lathe
Distance between centers	700MM
Swing over bed	280mm
Swing over cross slide	165MM
Width of bed	180mm
Taper of spindle bore	MT5
Spindle bore	38mm
Number of spindle speeds	Variable
Range of spindle speeds	50-2000RPM
Range of longitudinal feeds	0.07-0.20mm
Range of cross feeds	0.025-0.18mm
Range of inch threads	8-56T.P.I
Range of metric threads	0.4-3.5mm
Top slide travel	70mm
Cross slide travel	140mm
Tailstock quill travel	70mm
Taper of tailstock quill	MT3
Motor	0.85 kw (AC)
Mill & Drill
Taper of tailstock quill	MT2
Spindle stroke	50 mm
Spindle speed	50-2250RPM
Max. distance spindle to table	375 mm
Max. distance spindle to column	185 mm
Motor	750 W
Packing size	1400x780x1070 mm
Net weight	230 kg

Features&Details

1. Frequency inverter
2. 38mm spindle bore
3. V-way bed is hardened and precision ground
4. Independent leadscrew and feedshaft.
5. Power cross feed function.
6. Automatic feed and threading are fully interlocked
7. MT5 spindlle hole gets greater capacity with Φ160 mm three-jaw chuck
8. T-slotted cross slide
9. Top design of gearbox gets more function
10. Tailstock may be offset for turning tapers
11. Geared mill head gets more torque.
12. Mill head can be tilted ±90°.
13. Toleranc e test certificate, test flow chart included.

Standard Accessories

STANDARD ACCESSORIES:	INCLUDED
3-jaw chuck (160mm)	yes
Splash guard	yes
Chip tray	yes
Drawbar	yes
Arbor	yes
Speed DRO for lathe	yes
Depth ruler for mill	yes
Speed DRO for mill	yes
Toolbox & tools	yes

Optional Accessories

OPTIONAL ACCESSORIES:	Item NO.:
4-jaw chuck (160mm)
Backplate
Follow rest
Steady rest
Face plate
ER25 collet chuck for lathe
ER25 collet chuck for mill
Turning tools
Stand
