Home> Products> Lathe Machines> Combination Lathes> WMP280V-F Lathe & Mill&Drill Combination Machine

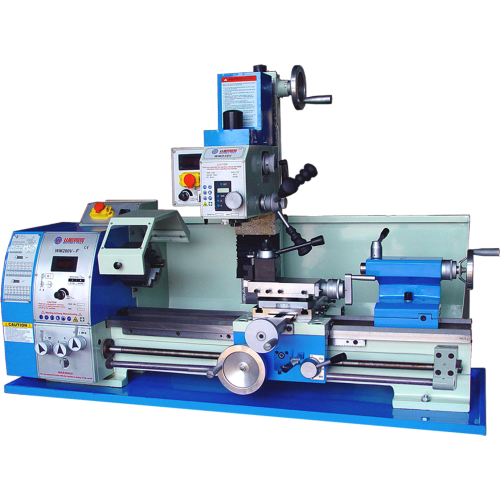

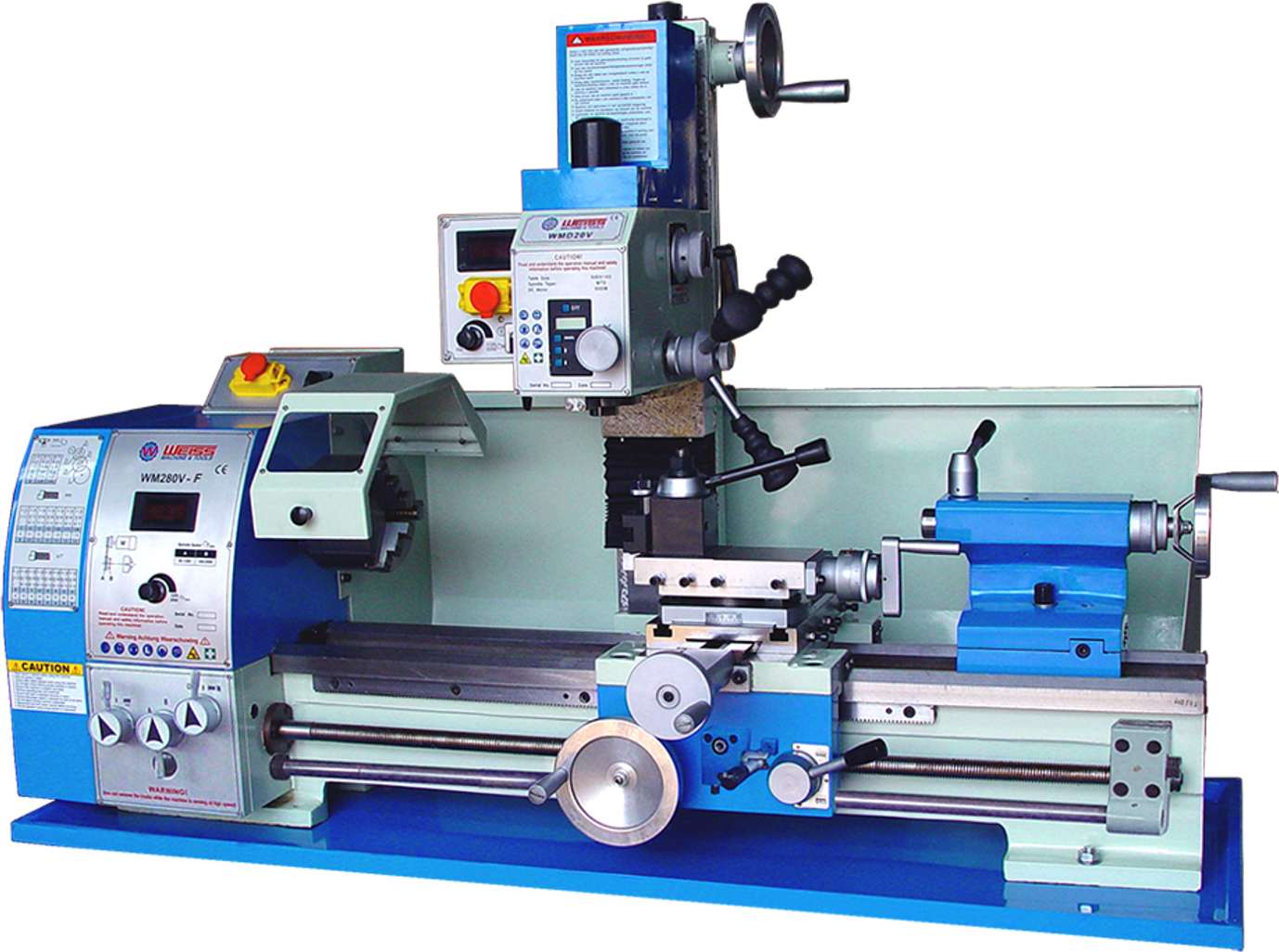

WMP280V-F Lathe & Mill&Drill Combination Machine

WMP280V-F Lathe & Mill&Drill Combination Machine
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WMP280V Lathe & Mill&Drill Combination Machine

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications
    Model No. WMP280V-F
    ITEM NO. 10110212
    Specifications： Metric(mm) Imperial (in)
    Lathe
    Distance between centers 700 mm
    Swing over bed 280 mm
    Swing over cross slide 165 mm
    Width of bed 180 mm
    Taper of spindle bore MT4
    Spindle bore 26 mm
    Number of spindle speeds Variable
    Range of spindle speeds 50-2000 rpm
    Range of longitudinal feeds 0.07-0.20 mm/r
    Range of inch threads 8-56 T.P.I
    Range of metric threads 0.4-3.5 mm
    Top slide travel 65 mm
    Cross slide travel 155 mm
    Tailstock quill travel 85 mm
    Taper of tailstock quill MT2
    Motor 1.1 kw
    Mill & Drill
    Taper of spindle bore MT2
    Spindle stroke 50 mm
    Spindle speed 50-2250 rpm
    Max. distance spindle to table 375 mm
    Max. distance spindle to column 182 mm
    Motor 600W
    Packing size 1400x780x1070 mm
    Net weight 230 kg

    Features&Details

    FEATURES:

    1. V-way bed is hardened and precision ground
    2. Super width bedway gets more capacity.
    3. Independent leadscrew and feedshaft.
    4. Power cross feed function.
    5. Automatic feed and threading are fully interlocked
    6. T-slotted cross slide
    7. Top design of gearbox gets more function
    8. Tailstock may be offset for turning tapers
    9. Geared mill head gets more torque.
    10. Mill head can be tilted ±90°.
    11. Tolerance test certificate, test flow chart included.




    Standard Accessories
    STANDARD ACCESSORIES: INCLUDED
    3-jaw chuck (125mm) yes
    Splash guard yes
    Chip tray

    yes
    Drawbar yes
    Arbor yes
    Speed DRO for lathe yes
    Depth ruler for mill yes
    Speed DRO for mill yes
    Toolbox & tools yes

    Optional Accessories

    OPTIONAL ACCESSORIES: Item NO.:
    4-jaw chuck (125mm)
    Backplate
    Follow rest
    Steady rest
    Face plate
    ER25 collet chuck for lathe
    ER25 collet chuck for mill
    Turning tools
    Stand
