| Selling Units: | Bag/Bags |
|---|
Transportation: Others
| CONTENT | METRIC INFO. |

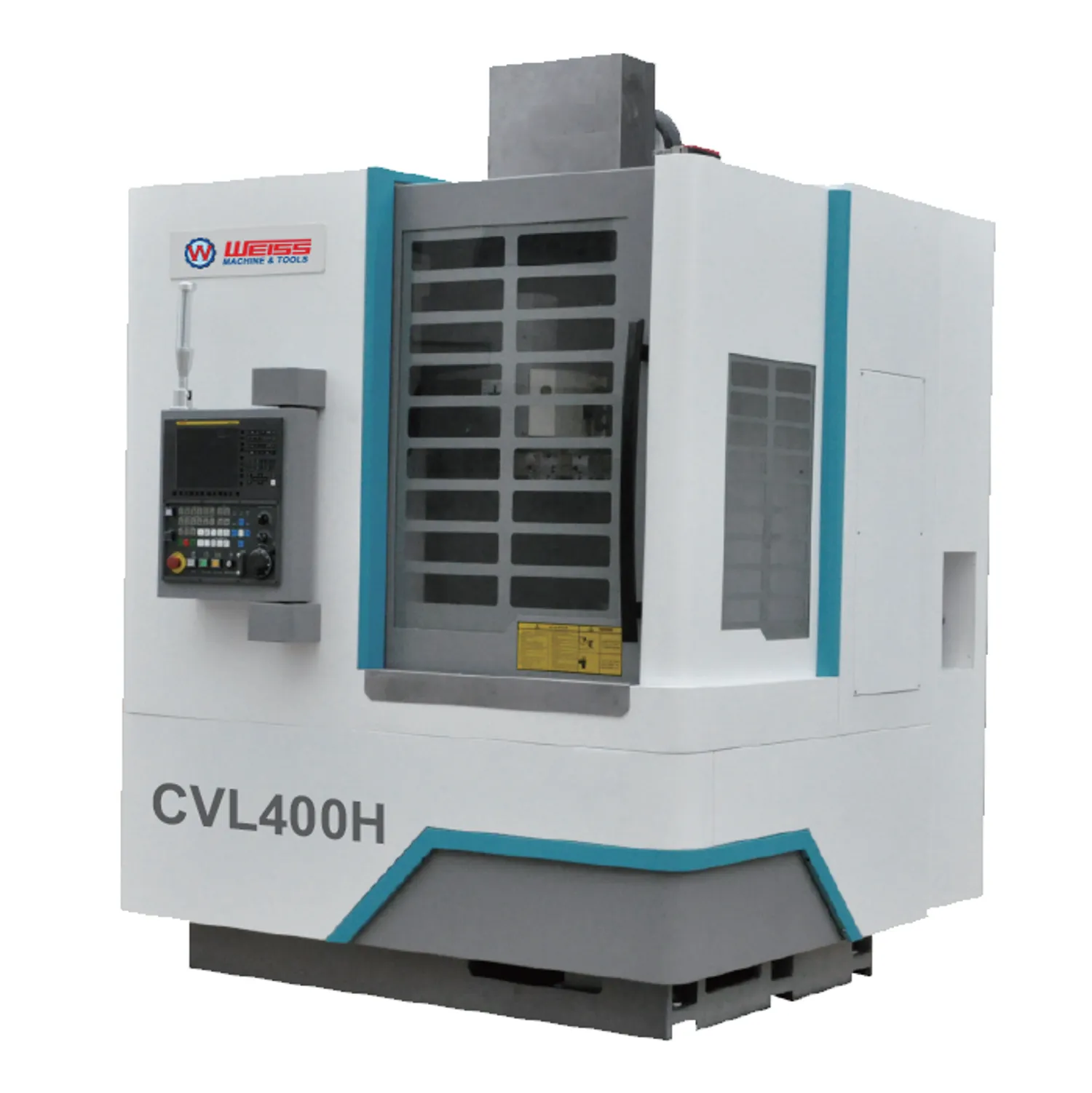

| ITEM NO. | 10111740H |
| Specification | |
| Max. cutting dia. for disc parts | Φ400mm |
| Max. cutting dia. for axle parts | Φ400mm |
| Max. height for turning | 430mm |
| Spindle nose | A2-8 |
| Front spindle bearing ID | Φ120mm |
| Spindle speed range | 100-2000rpm |
| Steps of spindle speed | Variable |
| Chuck dia. | 12" |
| X axis travel | -50/+250mm |
| Z axis travel | 450mm |
| X axis rapid feed | 12m/min |
| Z axis rapid feed | 16m/min |
| Type of tool stations | Driven turret |
| Number of tool stations | 12 |
| Tool shank size(square) | 25x25mm |
| Tool shank size(round) | Φ40mm |
| Main motor | 15/18.5kw |
| Live tool servo motor | 3.7/5.5kw |
| Hydraulic motor | 1.5kw |
| Coolant pump motor | 200w |
| Net weight | 4500kg |
| Machine dimension(LxWxH) | 1590x2670x2545mm |
| Tail stock quill dia | 70/90 Φ/mm |
| Tail stock quill travel | 80mm |
| Tail stock quill taper | MT5# |
| Total rated power | 14/18Kw |
| Total rated current | 30A |
| Net weight | 3200/3600/4500/5200Kg |
| Machine dimension(LxWxH) | 2600/2700/3300/3750x2000x2000(mm) |
| Features | |
|
| Details | |
