| Selling Units: | Bag/Bags |
|---|
Transportation: Others
| CONTEN | METRIC INFO. | INCHES INFO. | METRIC INFO. | INCHES INFO. |
| ITEM NO. | 10103255 | 10103256 | ||
| Distance between centers | 550mm | 21-21/32" | 750 mm | 29-17/32" |
| Swing over bed | 250mm | 9-27/32" | 250 mm | 9-27/32" |
| Swing over cross slide | 140mm | 5-33/64" | 140 mm | 5-33/64" |
| Width of bed | 132mm | 51-3/64" | 132 mm | 51-3/64" |
| Taper of spindle bore | MT4 | MT4 | MT4 | MT4 |
| Spindle bore | 26 mm | 1-1/32" | 26 mm | 1-1/32" |
| Number of spindle speeds | Variable speed | Variable speed | Variable speed | Variable speed |
| Range of spindle speeds | 50-2000 rpm | 50-2000 rpm | 50-2000rpm | 50-2000rpm |
| Range of cross feeds | 0.03-0.075mm | - | 0.03-0.075mm | - |
| Range of longitudinal feeds | 0.06-0.32mm | 0.0236"~0.0125" | 0.06-0.32mm | 0.0236"~0.0125" |
| Range of inch threads | 8-56 T.P.I | 8-56 T.P.I | 8-56 T.P.I | 8-56 T.P.I |
| Range of metric threads | 0.2-3.5mm | 0.2-3.5mm | 0.2-3.5 mm | 0.2-3.5 mm |
| Top slide travel | 65mm | 2-9/16" | 65 mm | 2-9/16" |
| Cross slide travel | 105mm | 4-9/64" | 105 mm | 4-9/64" |
| Tailstock quill travel | 75mm | 2-61/64" | 75 mm | 2-61/64" |
| Taper of tailstock quill | MT2 | MT2 | MT2 | MT2 |
| Brushless Motor | 1.1KW | 1.1KW | 1.1KW | 1.1KW |
| Machine Size | 1150x650x530mm | 45-9/32"x25-19/32"x20-55/64" | 1400x650x530 mm | 55-1/8"x25-19/32"x20-55/64" |
| Packing size | 1250x570x610mm | 49-7/32"x22-7/16"x24-1/64" | 1500x570x610 mm | 59-1/16"x22-7/16"x24-1/64" |
| Net weight | 120Kg | 264lb | 140 Kg | 308lb |
FEATURES:
1. Perfect size for garage or workshop to take on light duty jobs.
2. Precisely manufactured.
3. Powerful, maintenance-free engine.
4. Hardened and ground V-ways bed.
5. Guaranteed concentricity of the spindle nose ≤ 0.01 mm.
6. Concentricity on the lathe chuck ≤ 0.04 mm.
7. Lead screw for thread cutting or automatic longitudinal turning.
8. All guides can be adjusted by wedge strips.
9. Right / left rotation in the control panel switchable.
10. Hardened main spindle mounted in adjustable precision tapered roller bearings.
11. Hardened spindle nose with Ø 26 mm spindle bore.
12. Handwheels on the carriage with adjustable fine scale 0.04 / 0.01 mm.
13. Tailstock for taper turning ± 5 mm adjustable.
14. Quick, easy and tool-free adjustment of the tailstock by a clamping lever.
15. Change gear set in the standard scope of delivery for thread cutting.

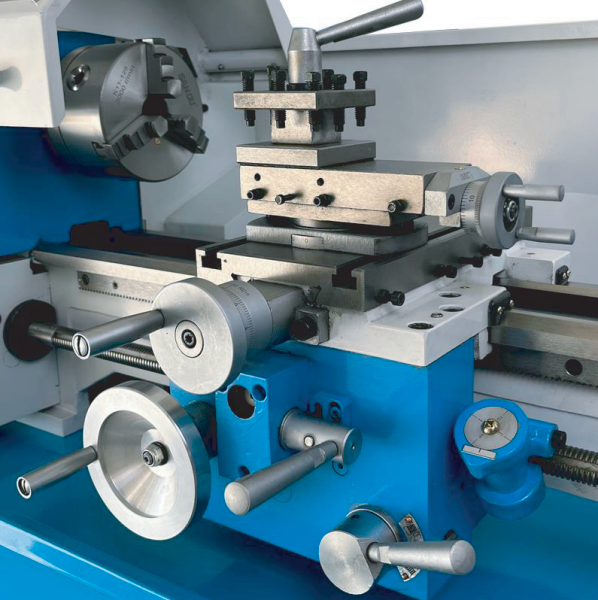

16. The lathe comes equipped with a full featured carriage and apron assemblies that provide super accurate cuts and finishes.

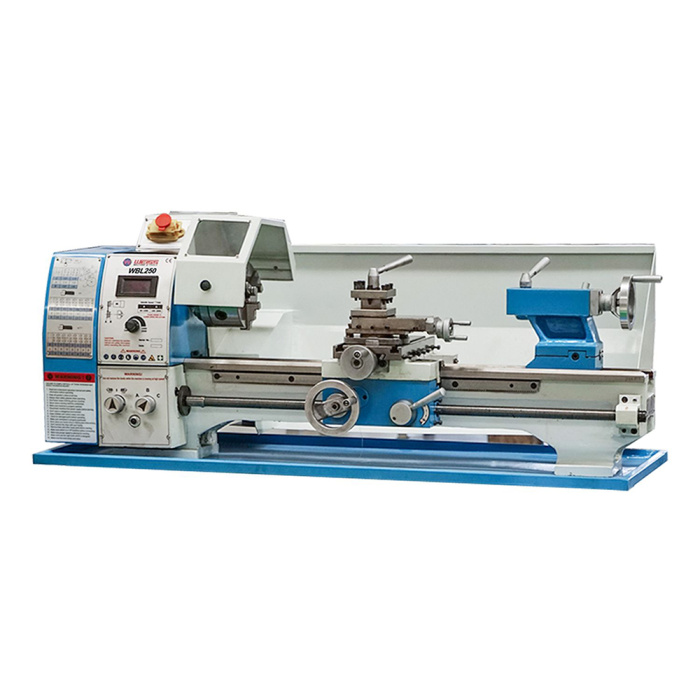

17. WBL250F has power cross feed function.
| STANDARD ACCESSORIES: | INCLUDED |

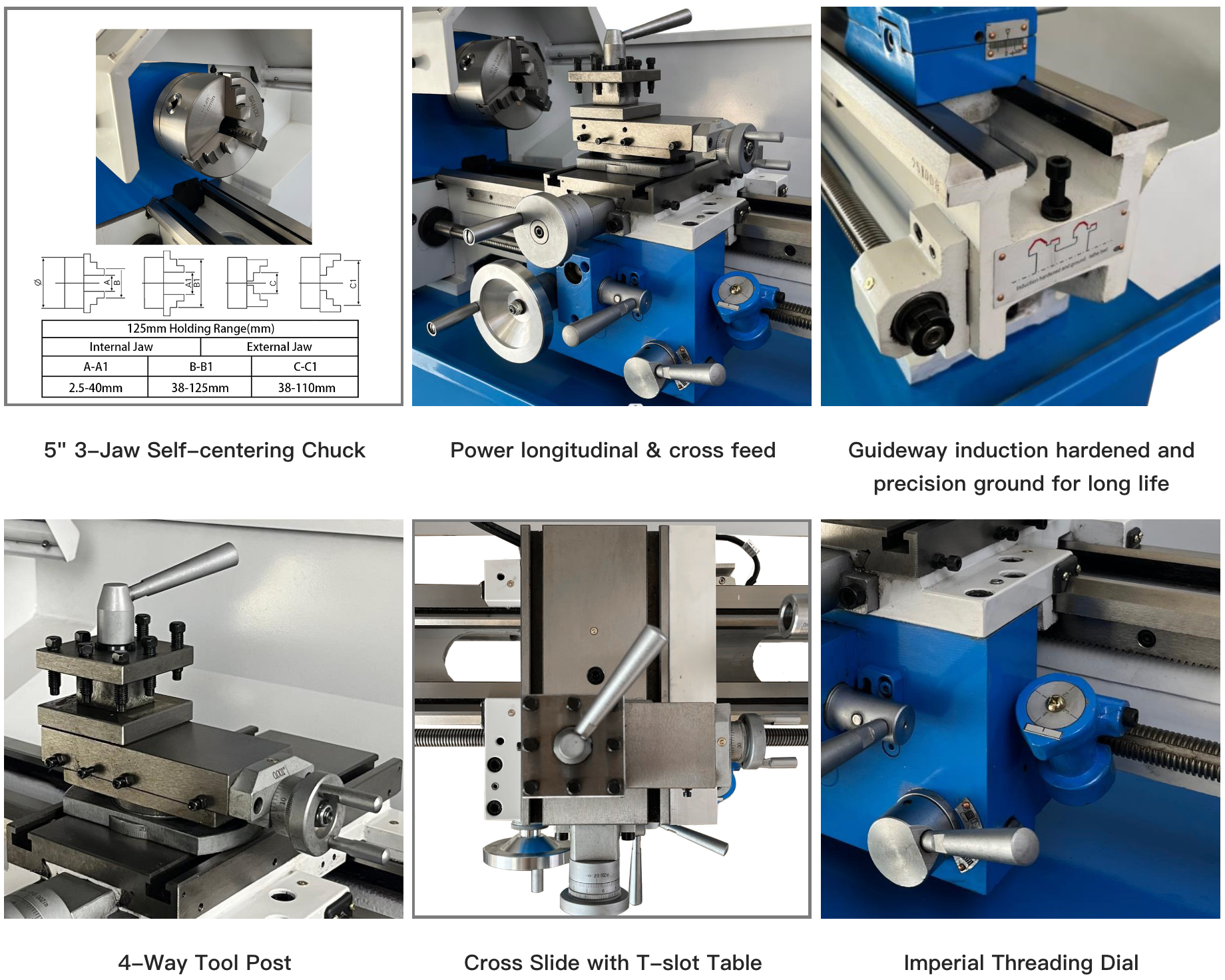

| 3-Jaw chuck (125mm) | yes |
| High and Iow variable spindle speed ranges | yes |
| Digital display of speed range | yes |
| Chip tray | yes |
| Splash guard | yes |
| Switch-off chuck cover | yes |
| Toolbox & tools | yes |
| OPTIONAL ACCESSORIES: | Item NO.: |
| Steady Rest | 30103001 |
| Follow Rest | 30103002 |
| Face Plate (240mm) | 30103003 |
| 4-jaw Chuck (125mm) | 22014103 |
| Backplate For 4-Jaw Chuck | 30103005 |
| Leadscrew cover | 30103015 |
| Tool post cover | 30103020 |
| Threading dial(Metric/Inch) | 30103025/30103026 |
| 11pcs/12mm/Carbide turning tools | 21000033 |
| 7 pcs/12mm/Afioy turning tools | 21020117 |
| 9 pcs/12mm/Alloy turning tools | 21020019 |
| Wedge type tool post sets 251-111 | 22123021 |
| Euro type tool post set TOOA1 | 22121001 |
| ER32 Collet Fixture ER32-95/125 | 22050107 |
| 2-Axis Magnetic DRO (D80) | 23073245/23073247 |

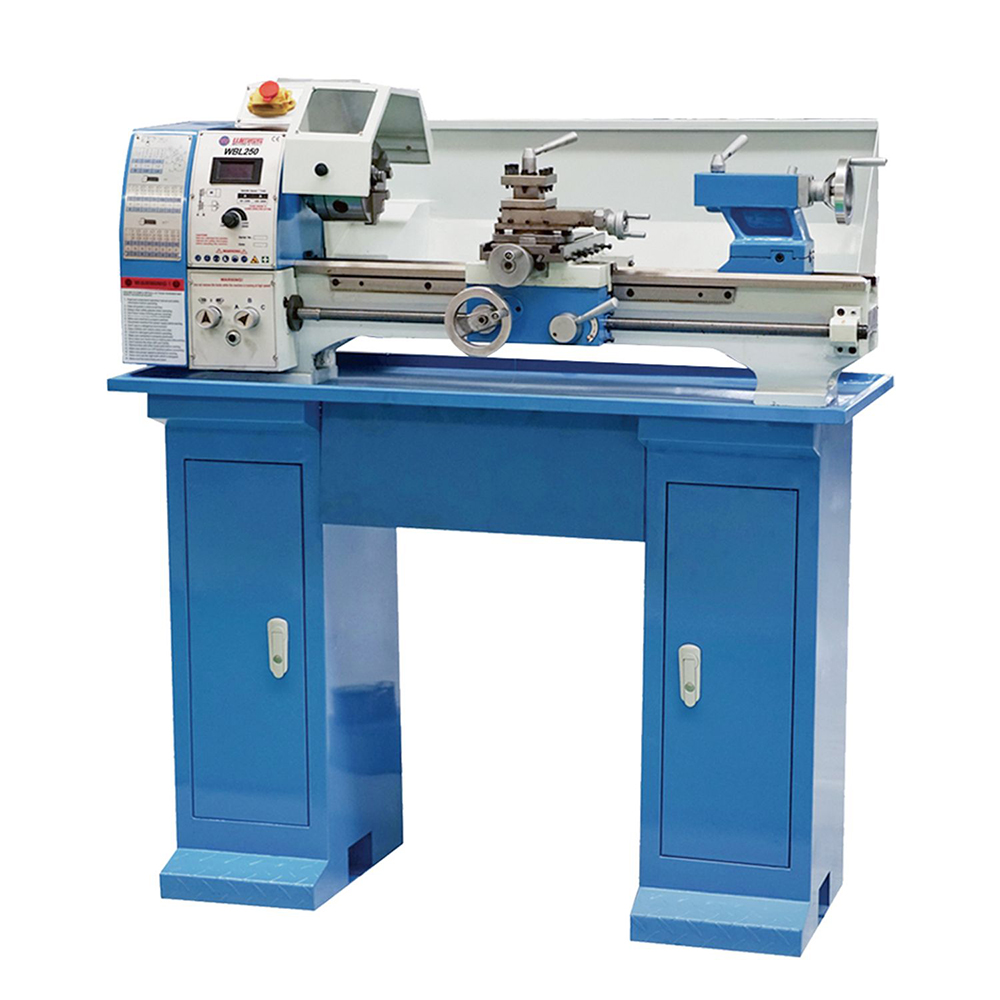

| Stand | 30103030 |
