Product Description

Features

Mainly used for sawing all kinds of ferrous and non-ferrous metals;The utility model has the advantages of reasonable structure, stable performance, high reliability and high precision, and is an ideal device for cutting medium and small batches.The tension of the saw blade is controlled by hydraulic device to keep good stretching force while the blade is rotating fleetly, and this prolongs the longevity of the blade.

Specifications

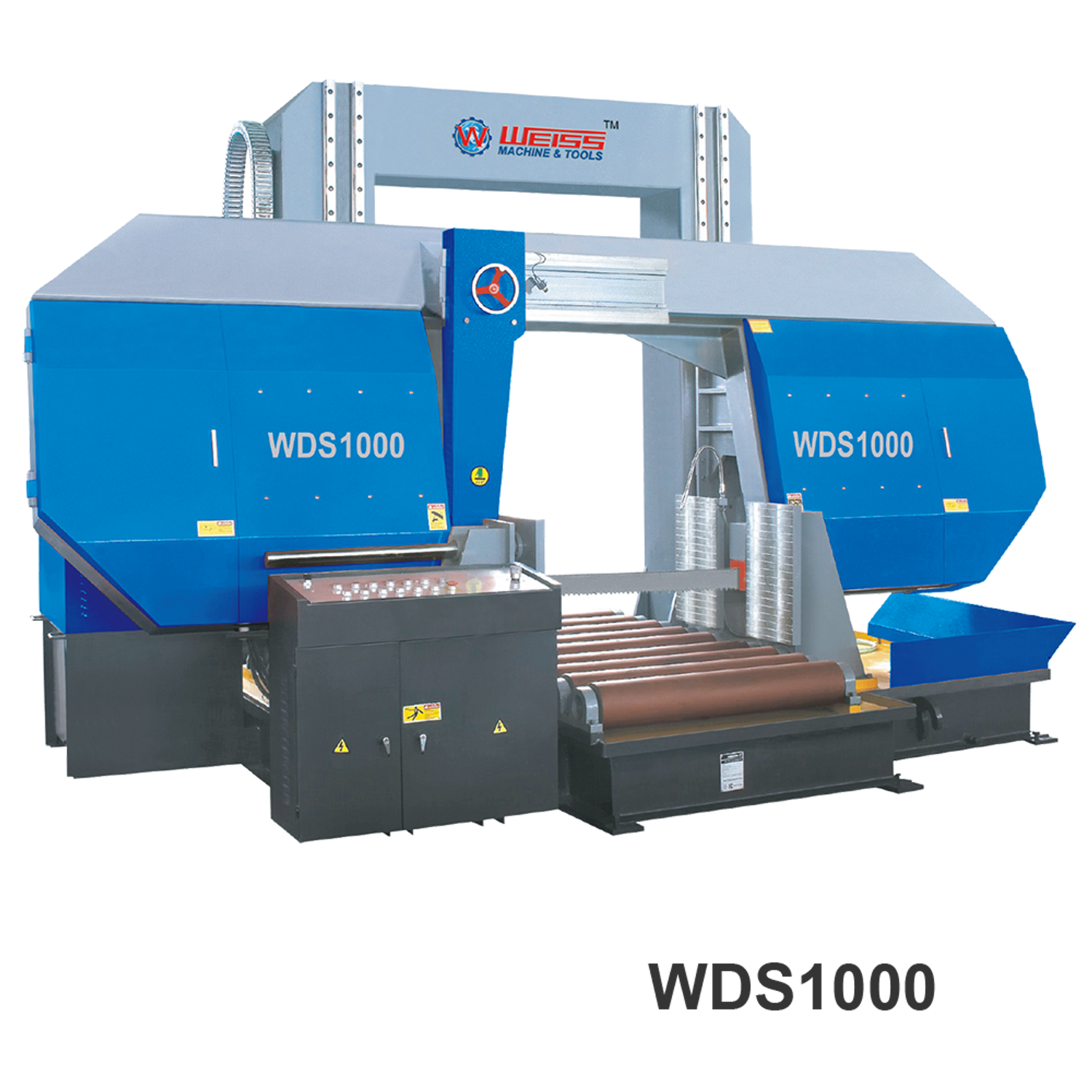

Model No.		WDS1000	WDS1200	WDS1300
Item No.		12021000	12021012	12021013
Specifications：
Motor Main	Kw	11 Kw	15 Kw	15 Kw
Motor Hydraulic	Kw	3.7.5 Kw	3.7.5 Kw	3.7.5 Kw
Coolant Pump	W	90 W	90 W	90 W
Max. cutting Capacity(mm)	Bore	Φ1000 mm	Φ1200 mm	Φ1300 mm
Max. cutting Capacity(mm)	Rectangle	1000x1000mm	1200x1200mm	1300x1300mm
Blade Speed	m/min	15 ~ 55 Inverter	15 ~ 55 Inverter	15 ~ 55 Inverter
Blade Size	mm	9820 x 67 x 1.6	10800 x 67 x 1.6	11180 x 67 x 1.6
Workpiece Clamping		Hydraulic Vice	Hydraulic Vice	Hydraulic Vice
Blade Tensioning		Hydraulic	Hydraulic	Hydraulic
Main Drive		Gear Drive	Gear Drive	Gear Drive
Table loading capacity	mm	520	520	520
Overall Dimension (LxWxH)	mm	4560 x 2170 x 3040	4835 x 2180 x 3340	5050 x 2250 x 3380
